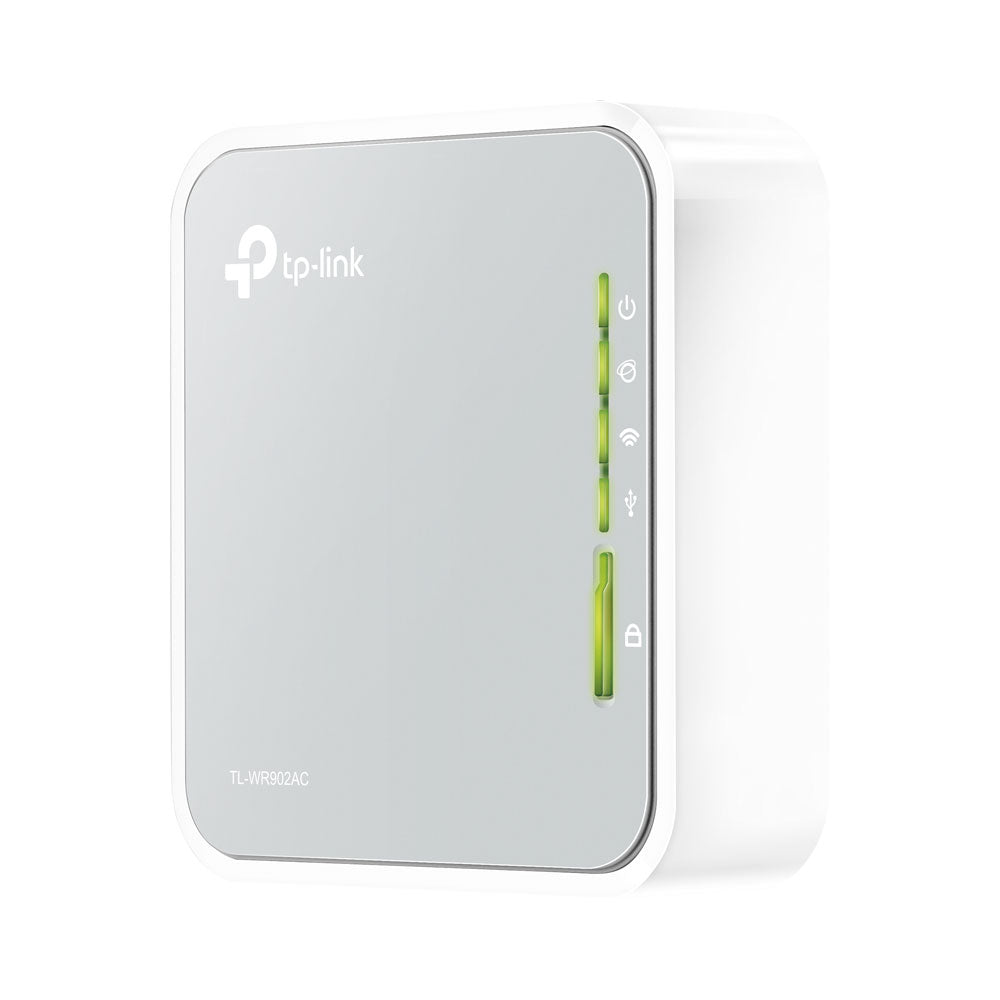

TP-LINK AC750 WI-FI TRAVEL ROUTER

Features

• Travel-Sized Design: Conveniently small and light to pack and take on the road, creating Wi-Fi network via Ethernet or WISP
• Dual Band AC750 Wi-Fi - Strong, fast connection for HD streaming on all your devices
• One Switch for Multiple Modes: Perfect for Wi-Fi at home, your hotel room or on the road
• Flexible Power: Micro USB port to an adapter, portable charger or laptop
• Versatile USB: For file sharing or providing power supply to mobile devices

Specifications

Wireless

• Standards: Wi-Fi 5
• IEEE 802.11ac/n/a 5 GHz
• IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds: AC750
• 5 GHz: 433 Mbps (802.11ac)
• 2.4 GHz: 300 Mbps (802.11n)
• Wi-Fi Range: 2 Bedroom Houses
• 2× Fixed Antennas (Internal)
• Wi-Fi Capacity: Medium
• Dual-Band: Allocate devices to different bands for optimal performance
• Working Modes: Router Mode, Access Point Mode, Range Extender Mode, Client Mode, Hotspot Mode (WISP Mode)

Hardware

• Processor: Single-Core CPU
• Ethernet Ports: 1× 10/100 Mbps WAN/LAN Port
• USB Support: 1× USB2.0 Port
• Supported Partition Formats: NTFS, FAT32
• Supported Functions
• FTP Server
• Media Server
• Buttons: Reset Button
• Mode Switch
• Power: 5V ⎓ 2A

Security

• WiFi Encryption: WEP, WPA, WPA2
• Network Security: SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

Software

• Protocols: IPv4, IPv6
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• NAT Forwarding: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: NO-IP, Comex, DynDNS
• Management: Tether App, Webpage

Physical

• Dimensions: 74 × 67 × 22mm
• Weight: 56.7g

Other

• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
• Certifications: FCC, CE, RoHS
• Environment
• Operating Temperature: 0°C~40°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Test Data

• WiFi Transmission Power: CE <20dBm (2.4GHz), <23dBm (5GHz)
• WiFi Reception Sensitivity
• 11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm
• 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm

Shipping Dimensions

• Length: 11 cm
• Width: 10.9 cm
• Height: 8.2 cm
• Weight: 0.30 kg
