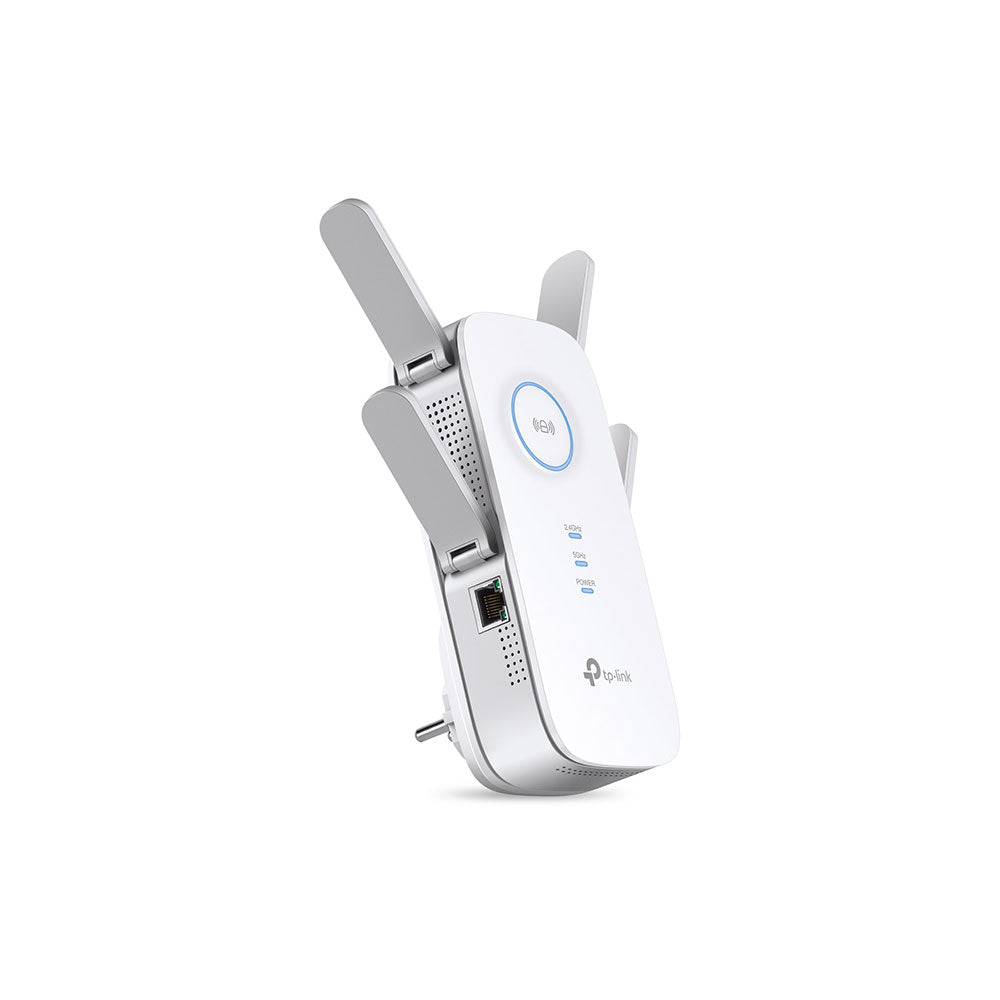

TP-LINK AC2600 DUAL BAND WLESS LAN RANGE EXTEND

Features

• Superior Extended Range – Four fixed external antennas extend Wi-Fi coverage by up to 1,300m2
• 4-Stream for AC2600 Dual Band Wi-Fi – Simultaneous 800Mbps on 2.4GHz + 1733Mbps on 5GHz
• 4x4 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
• Beamforming Technology – Send targeted Wi-Fi signal to individual devices for stronger connections
• Gigabit Ethernet Port – Provide faster wired connections to smart TVs, computers and gaming consoles
• Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
• AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
• TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
• Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

Specifications

Hardware Features

• Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Interface: 1x 10/100/1000M Ethernet Port (RJ45)
• Button: WPS Button, Reset Button, LED Button, Power Button
• Power Consumption: 12W（max power consumption）
• Dimensions ( W x D x H ): 163 x 86 x 40mm
• Antenna: 4x external

Wireless Features

• Frequency: 2.4GHz & 5GHz(11ac)
• Signal Rate: 5GHz:Up to 1733Mbps
• 2.4GHz:Up to 800Mpbs
• Reception Sensitivity: 5GHz：
• 11a 6Mbps:-96dBm@10% PER
• 11a 54Mbps: -78dBm@10% PER
• 11ac HT20 mcs8: -69dBm@10% PER
• 11ac HT40 mcs9: -66dBm@10% PER
• 11ac HT80 mcs9: -63dBm@10% PER

2.4GHz

• 11g 54M: -79dBm@10% PER
• 11n HT20 mcs7: -77dBm@10% PER
• 11n HT40 mcs7: -74dBm@10% PER
• Wireless Modes: Range Extender/Access Point
• Wireless Functions: Wireless Statistic
• Concurrent Mode boost both 2.4G/5G Wi-Fi band
• High Speed Mode for great speed for HD Gaming and video
• Access Control
• LED Control
• Domain Login Function
• Wireless Security: 64/128-bit WEP / WPA-PSK / WPA2-PSK
• Transmission Power: <20dBm(2.4GHz), <23dBm(5GHz)

Others

• Certification: CE, FCC, RoHS
• Box Dimensions (W X D X H): 202x 125 x 97mm
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux

Shipping Dimensions

• Length: 20.2 cm
• Width: 12.5 cm
• Height: 9.7 cm
• Weight: 0.52 kg
