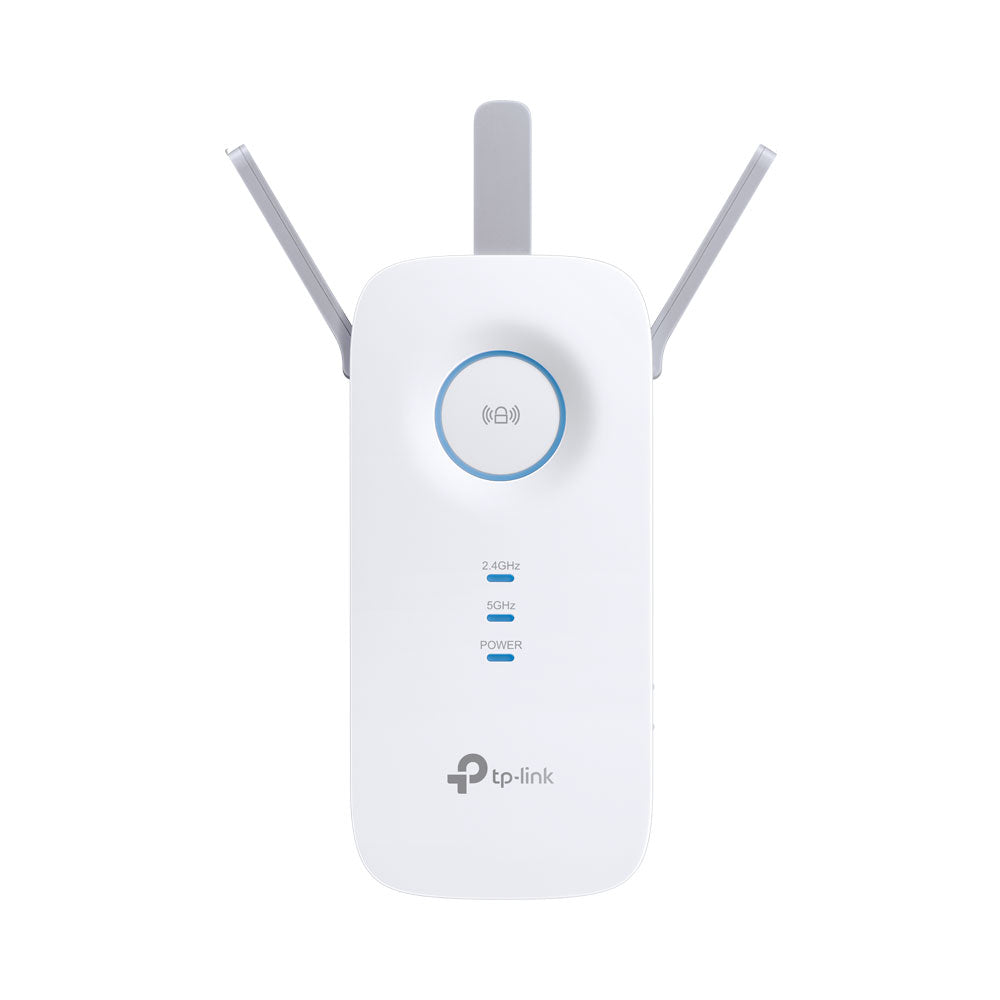

TP-LINK AC1900 WI-FI EXTENDER

Features

• Maximum Coverage - Extend Wi-Fi coverage to those hard-to-reach areas, eliminating dead zones
• AC1900 Dual-Band Wi-Fi - Simultaneous 600Mbps on 2.4GHz + 1,300Mbps on 5.0GHz
• Three Antennas - Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections
• Gigabit Ethernet Port - Act as a wireless adapter to connect a wired device to your network at Gigabit speed
• Intelligent Signal Light - Help to find the best location for optimal Wi-Fi coverage by showing the signal strength
• AP Mode - Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
• TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
• Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point

Specifications

Standards And Protocols

• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b

Interface

• 1× 10/100/1000Mbps Ethernet Port (RJ45)

Button

• WPS Button
• Reset Button
• LED Button
• Power Button

Power Consumption

• 10W (Max. Power Consumption)

Dimensions (W × D × H)

• 163 × 76.4 × 66.5mm

Antenna

• 3× External Antennas

Frequency

• 2.4GHz
• 5.0GHz

Signal Rate

• Up to 1,300Mbps (5.0GHz)
• Up to 600Mbps (2.4GHz)

Reception Sensitivity

5.0GHz

• 11a 6Mbps: -93dBm @10% PER
• 11a 54Mbps: -76dBm @10% PER
• 11ac HT20 MCS8: -68dBm @10% PER
• 11ac HT40 MCS9: -64dBm @10% PER
• 11ac HT80 MCS9: -61dBm @10% PER

2.4GHz

• 11g 54Mbps: -77dBm @10% PER
• 11n HT20 MCS7: -73dBm @10% PER
• 11n HT40 MCS7: -70dBm @10% PER

Wireless Modes

• Range Extender
• Access Point

Wireless Functions

• Wireless Statistics
• Concurrent Mode Boost Both 2.4GHz/5.0GHz Wi-Fi Band
• Access Control
• LED Control
• Domain Login Function
• Wi-Fi Coverage

Wireless Security

• 64/128-bit WEP
• WPA-PSK / WPA2-PSK

Transmission Power

• <20dBm (2.4GHz)
• <23dBm (5.0GHz)

Certifications

• CE
• FCC
• RoHS

System Requirements

• Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 10
• macOS
• NetWare
• UNIX
• Linux

Environment

• Operating Temperature: 0~30°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~90% Non-Condensing

Shipping Dimensions

• Length: 20.2 cm
• Width: 12.5 cm
• Height: 8.6 cm
• Weight: 0.36 kg
