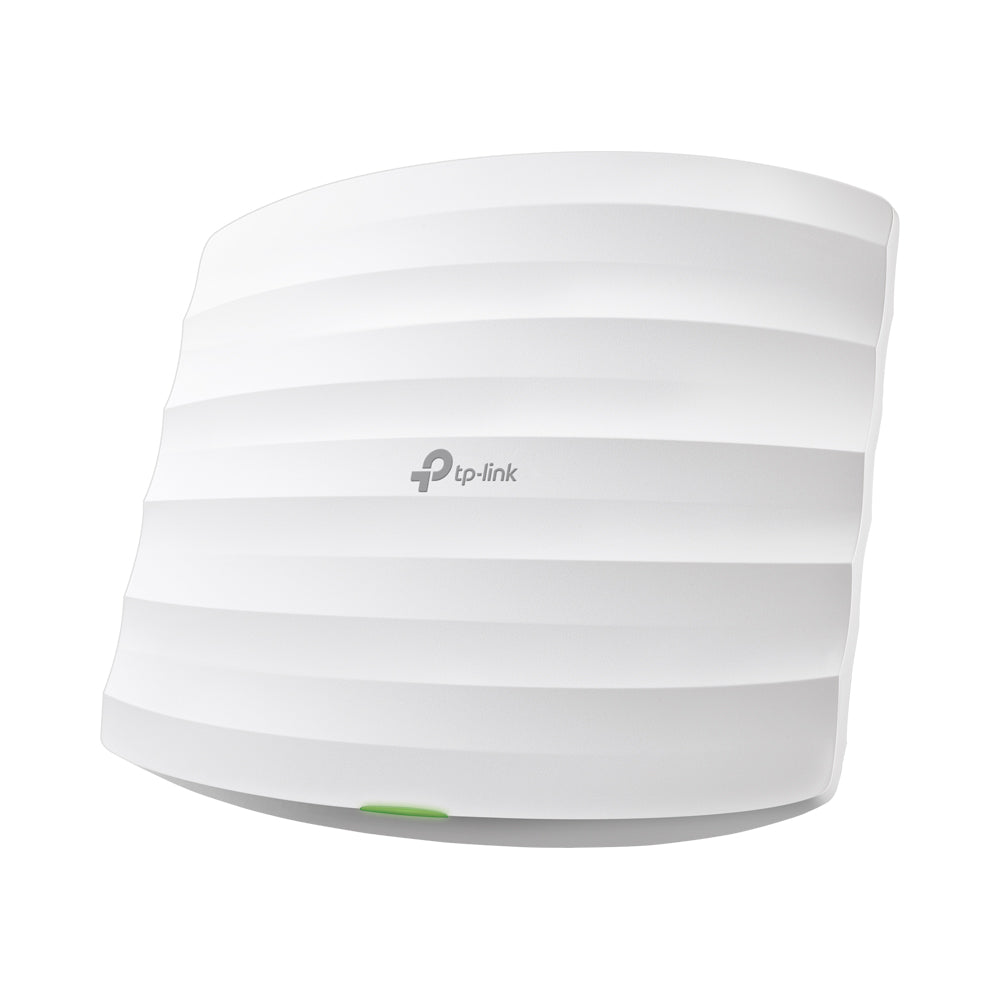

TP-LINK AC1350 DUAL BAND W/LESS CEILING ACCESS POI

Features

• AC1350 Dual-Band Wi-Fi - 450Mbps on 2.4GHz plus 867Mbps on 5.0GHz delivering combined speeds up to 1,317Mbps
• Omada SDN Integrated - Supports Zero-Touch Provisioning, centralised cloud management and intelligent monitoring
• Centralised Cloud Management - Manage easily via cloud access and the Omada App
• Seamless Roaming - Maintains uninterrupted video streaming and voice calls while users move between access points
• Flexible PoE Deployment - Supports 802.3af PoE and Passive PoE for versatile installation options (PoE adapter is not included)
• Secure Guest Network - Multiple authentication options including SMS and Voucher with robust wireless protection
• Advanced Wireless Technologies - MU-MIMO, Band Steering, Airtime Fairness and Beamforming optimise performance and efficiency

Specifications

Hardware Features

Interface

• 1× Gigabit Ethernet (RJ45) Port (Supports IEEE 802.3af PoE and Passive PoE)

Physical Security Lock

• Yes

Button

• Reset

Power Supply

• 802.3af PoE
• 24V Passive PoE (+4,5pins; -7,8pins)
• PoE Adapter Not Included

Power Consumption

• 12.6W

Dimensions (W × D × H)

• 205.5 × 181.5 × 37.1mm

Antenna

• 3× Internal Omni Antennas
• 2.4GHz: 4dBi
• 5.0GHz: 5dBi

Mounting

• Ceiling / Wall Mounting Kits Included

Wireless Features

Wireless Client Capacity

• 220+ Clients

Wireless Standards

• IEEE 802.11ac/n/g/b/a

Frequency

• 2.4GHz and 5.0GHz

Signal Rate

• 5.0GHz: up to 867Mbps
• 2.4GHz: up to 450Mbps

Wireless Functions

• Multiple SSIDs (up to 16× SSIDs, 8× per Band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control
• QoS (WMM)
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics (SSID/AP/Client Based)

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support

Transmission Power

Ce

• ≤20dBm (2.4GHz, EIRP)
• ≤23dBm (5.0GHz, EIRP)

Fcc

• ≤24dBm (2.4GHz)
• ≤22dBm (5.0GHz)

Management

• Omada App

Centralised Management

• Omada Hardware Controller (OC300, OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access

• Yes (via OC300, OC200, Omada Software Controller or Omada Cloud-Based Controller)
• EMAIL ALERTS
• LED On/Off Control
• Management MAC Access Control
• SNMP v1/v2c
• System Logging (Local/Remote Syslog)
• SSH
• Web-Based Management (HTTP/HTTPS)
• L3 Management
• Multi-Site Management
• Management VLAN
• Zero-Touch Provisioning (Requires Omada Cloud-Based Controller)

Certification

• CE
• FCC
• RoHS

System Requirements

• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11
• Linux

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90%RH Non-Condensing
• Storage Humidity: 5~90%RH Non-Condensing

Shipping Dimensions

• Length: 34 cm
• Width: 22.8 cm
• Height: 6.5 cm
• Weight: 0.88 kg
