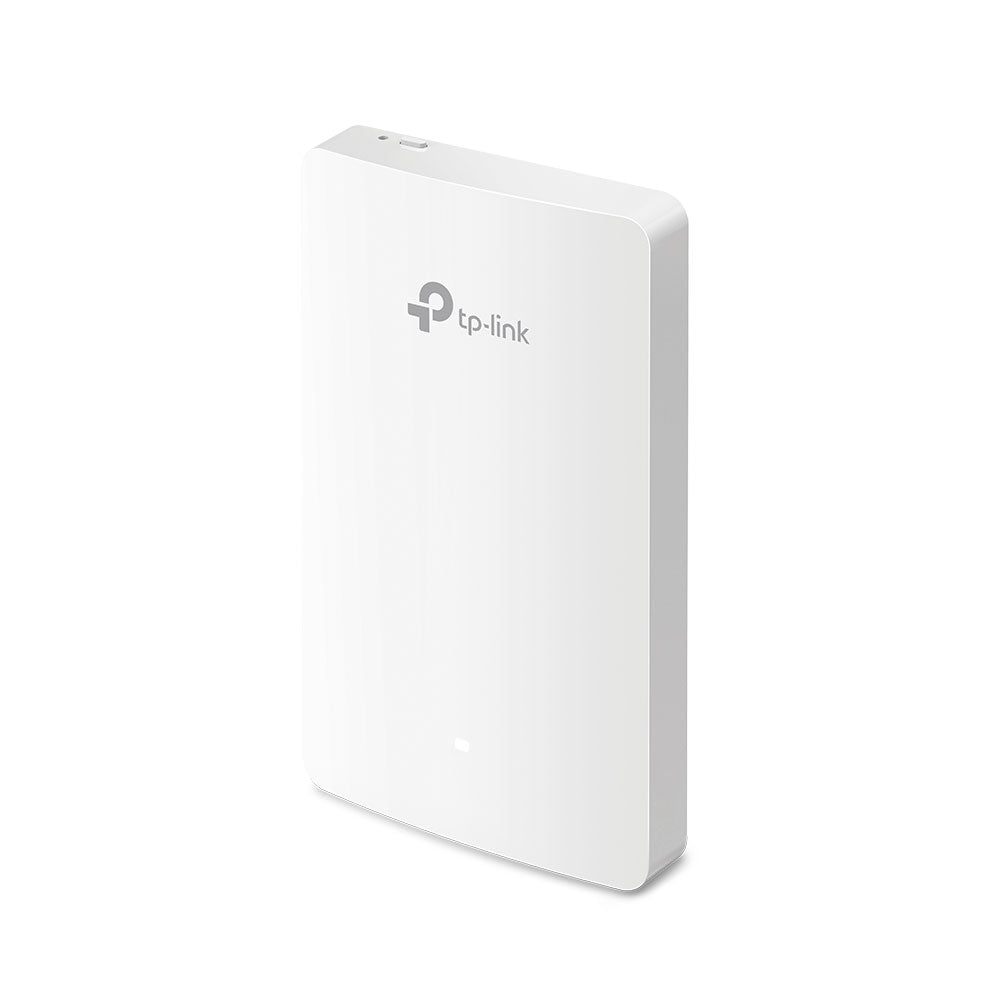

TP-LINK AC1200 WIRELESS MU-MIMO GIGABIT

Features

• Elegant Ultra-Slim Design - 15mm Low-profile construction blends seamlessly into hotels, hospitals, offices and dormitories
• Easy Installation with PoE Support - Mounts into standard EU or US wall junction boxes with PoE for flexible deployment
• 4× Gigabit Ethernet Ports - 1× Uplink plus 3× Downlink ports, with PoE pass-through on one downlink port to power wired devices
• AC1200 Dual-Band Wi-Fi - 802.11ac Wave 2 with 2×2 MU-MIMO delivers speeds up to 1,200Mbps for high-density environments
• Omada SDN Integration - Cloud management and Omada App support for centralised control and easy monitoring
• Enterprise-Grade Security - Advanced wireless protection to reduce network security threats
• Secure Guest Network - Supports Facebook Wi-Fi/SMS authentication and multiple secure access options

Specifications

Hardware Features

• Interface: 1× Gigabit Uplink Port, 3× 10/100/1000Mbps Downlink Ports (1× PoE Out, up to 13W with 802.3at Input)
• Physical Security Lock: Yes
• Button: Reset
• Power Supply: 802.3af/802.3at PoE
• Power Consumption: 9.8W (24.4W with PoE Out)
• Dimensions: 143 × 86 × 20mm
• Antennas: 2× Dual-Band Internal Antennas
• 2.4GHz: 2× 4dBi
• 5.0GHz: 2× 4dBi
• Mounting: Wall-Plate Mounting

Wireless Features

• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Frequency: 2.4GHz and 5.0GHz
• Signal Rate:
• 5.0GHz: up to 867Mbps
• 2.4GHz: up to 300Mbps
• SSIDs: up to 16× SSIDs (8× per Band)
• MU-MIMO: Yes
• Band Steering: Yes
• Beamforming: Yes
• QoS (WMM): Yes
• Load Balance: Yes
• Rate Limit: Yes
• Reboot Schedule and Wireless Schedule: Yes
• Wireless Statistics: Based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN Port-Based VLAN
• Rogue AP Detection
• 802.1X Support
• Encryption: 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise

Transmission Power

• CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP)
• FCC: ≤21dBm (2.4GHz), ≤21dBm (5.0GHz)

Management

• Omada Cloud Access: Yes
• Omada App: Yes
• Omada Cloud Controller: Yes
• Omada Controller Software: Yes
• Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Email Alerts: Yes
• LED On/Off Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-Based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-Site Management: Yes
• Management VLAN: Yes

Certification

• CE
• FCC
• RoHS

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)

Shipping Dimensions

• Length: 18.4 cm
• Width: 11.7 cm
• Height: 3.3 cm
• Weight: 0.30 kg
