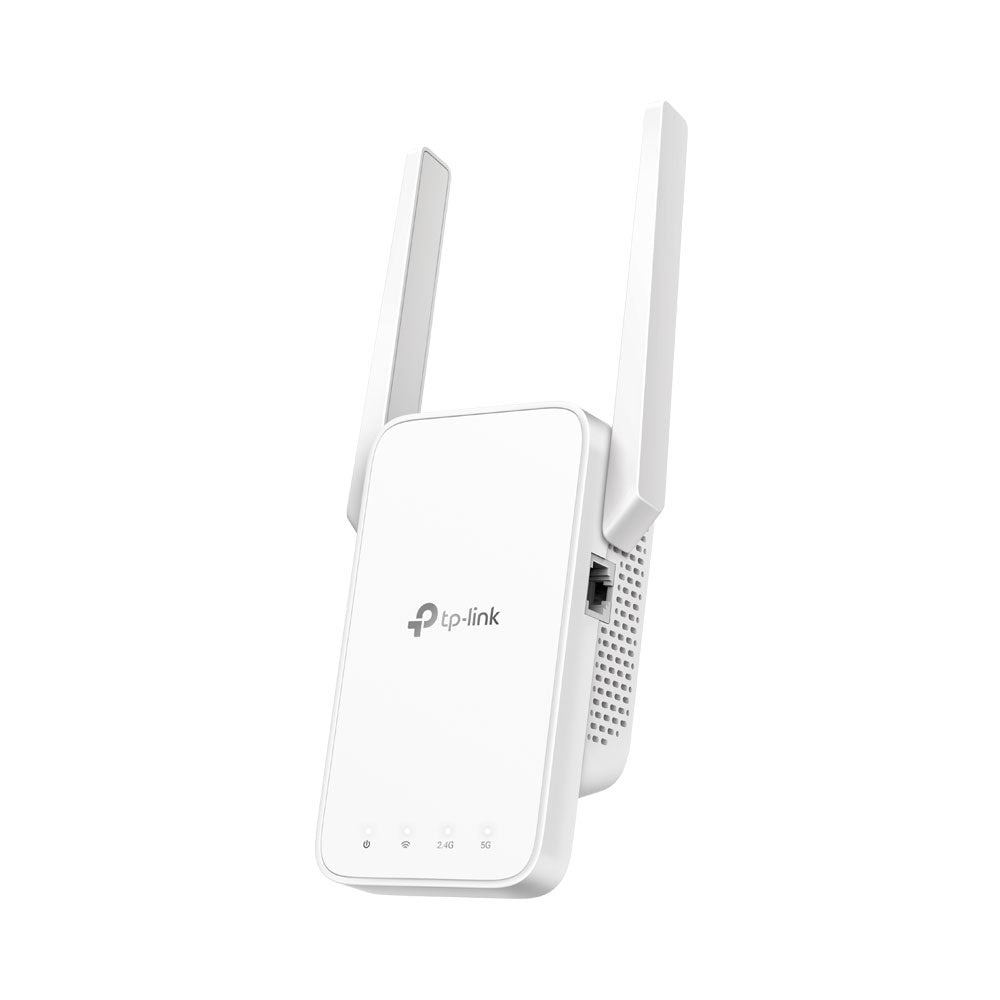

TP-LINK AC1200 WI-FI RANGE EXTENDER

Features

• Eliminate weak signal areas with whole home Wi-Fi coverage
• 2.4 GHz (300Mbps) and 5 GHz (867Mbps) dual-band Wi-Fi connection ensures more stable wireless experience
• Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage
• Adaptive Path Selection - connects to the fastest connection path to the router automatically and runs at top-speed
• High Speed Mode - maximises speed by using one Wi-Fi band as dedicated backhaul, ideal for HD streaming and gaming
• AP Mode - create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
• Smart Signal Indicator - helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
• Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI

Specifications

Hardware Features

• Interface: 1 x 10/100M Ethernet Port (RJ45)
• Button: WPS Button, Reset Button
• Power Consumption: 9.5W（max power consumption）
• Dimensions ( W x D x H ): 89× 35.0× 124.1mm
• Antenna: 2 External Antennas

Wireless Features

• Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency: 2.4GHz & 5GHz(11ac)
• Signal Rate: 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mpbs
• Reception Sensitivity: 5 GHz:
• 11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm
• 11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm
• 11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm
• 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm

2.4 GHz:

• 11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm
• 11n HT40 MCS7: -74dBm
• Wireless Modes
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics
• Wireless Security: 64/128-bit WEP, WPA/WPA-PSK2/WPA2-PSK2 encryptions
• Transmission Power: 2.4 GHz ≤20dBm, 5 GHz ≤30dBm

Others

• Certification: CE, RoHS
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Shipping Dimensions

• Length: 12.15 cm
• Width: 8.9 cm
• Height: 15.65 cm
• Weight: 0.28 kg
