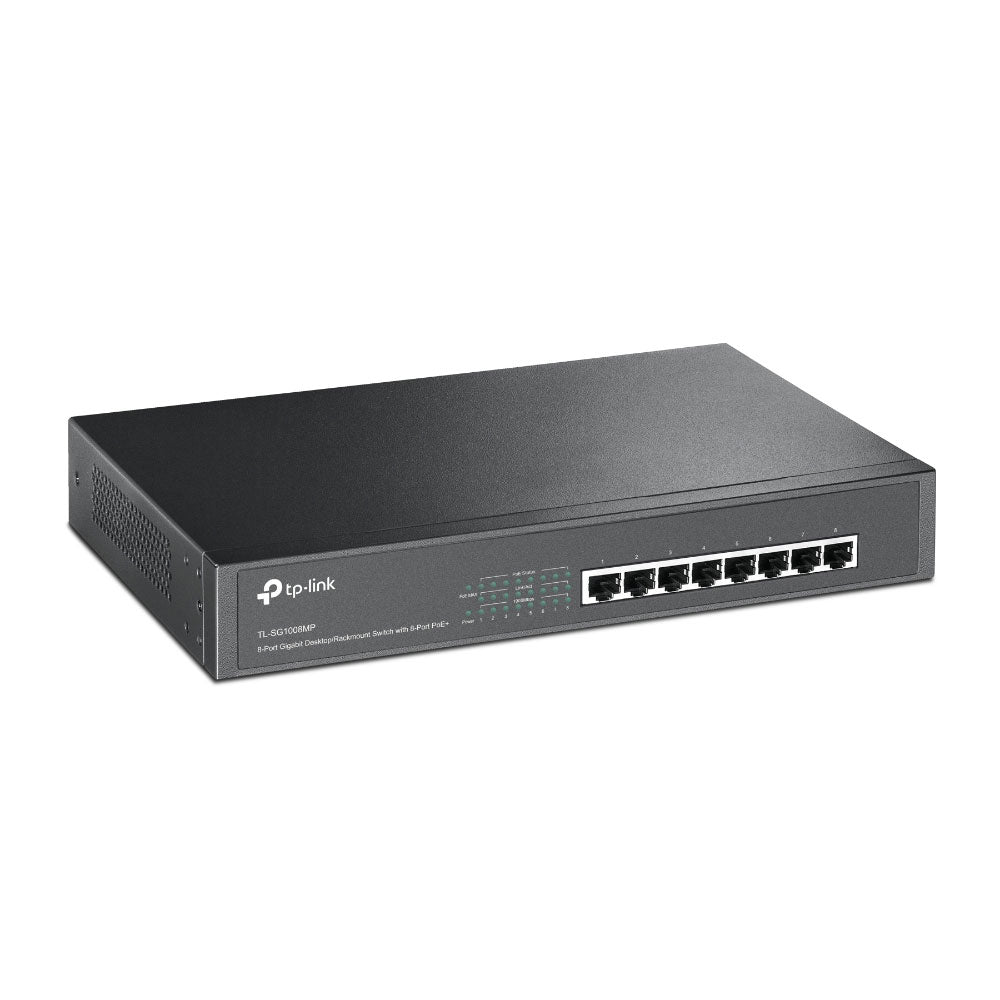

TP-LINK 8-PORT POE+ GIGABIT RACKMOUNT SWITCH

Features

• 8 10/100/1000Mbps RJ45 ports
• Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
• Works with IEEE 802.3af/at compliant devices, expanding home and office networks
• Innovative energy-efficient technology reduces power consumption by up to 75%
• Supports PoE+ standard with total power budget of 126W and up to 30W per port
• Plug and play design, no configuration required

Specifications

Hardware Features

• Interface: 8 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: 1
• Physical Security Lock: No
• Power Supply: 100-240VAC, 50/60Hz
• PoE+ Ports(RJ45): Standard: 802.3at/af compliant
• PoE+ Ports: 8 Ports
• Power Supply: 126W
• Backbound Bandwidth: 16Gbps
• Mac Address Table: 4K
• Buffer Size: 1.5Mbits
• Dimensions (WxDxH ): 294 x 180 x 44mm
• Mounting: Rack Mountable
• Max Power Consumption: 9.89W(220V/50Hz. no PD connected)
• 140.67W(110V/60Hz. with 126W PD connected)
• Max Heat Dissipation: 33.74BTU/h(no PD connected)
• 492.56BTU/h(with 126W PD connected)

Software Features

• Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs
• Priority Function
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
• Transfer Method: Store-And-Forward

Others

• Certification: FCC, CE, RoHS

Shipping Dimensions

• Length: 40 cm
• Width: 25 cm
• Height: 8 cm
• Weight: 2.11 kg
