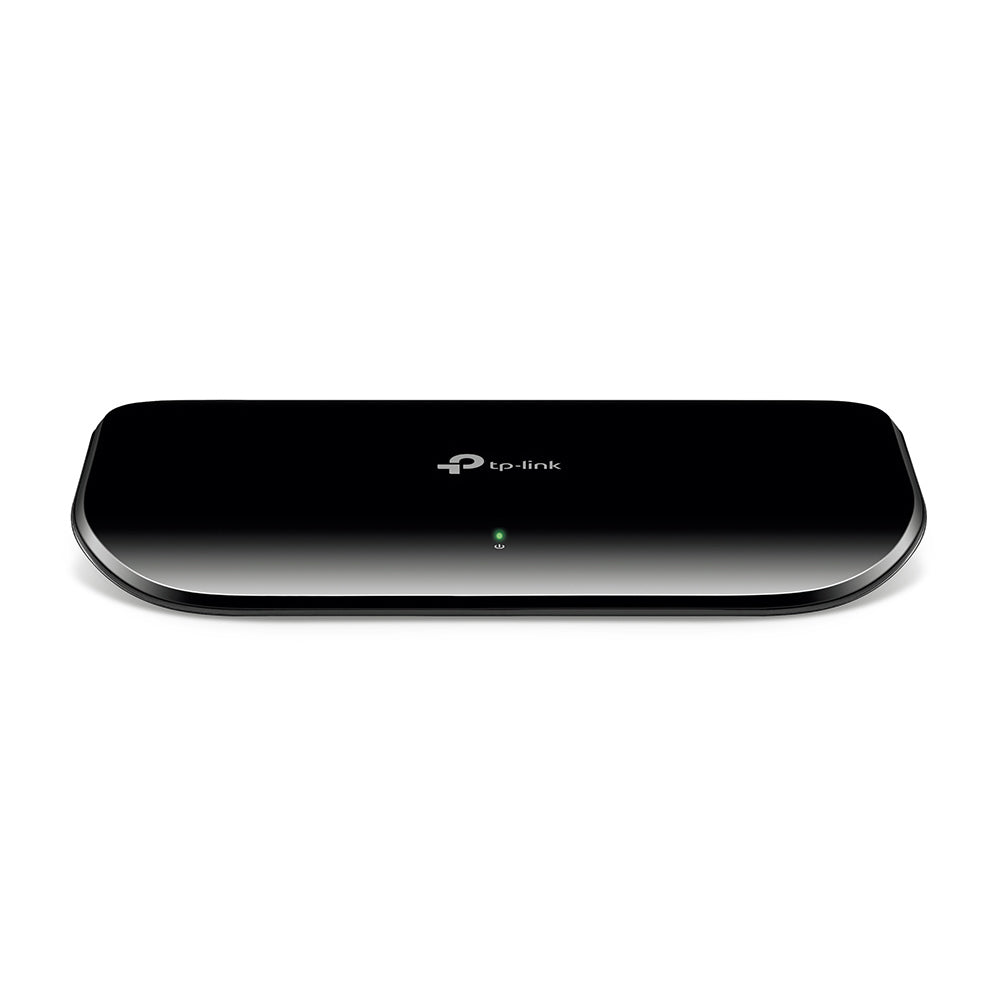

TP-LINK 8-PORT GIGABIT MINI DESKTOP SWITCH

Features

• 8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
• Green Ethernet technology saves the power up to 80%
• IEEE 802.3x flow control provides reliable data transfer
• Plastic case, desktop or wall-mounting design
• Plug and play, no configuration required

Specifications

Hardware Features

• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
• Interface: 8 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Fan Quantity: Fanless
• Physical Security Lock: No
• External Power Supply: External Power Adapter (Output: 9VDC/0.6A)
• Jumbo Frame: 15 KB
• Switching Capacity: 16 Gbps
• Dimensions (WxDxH) 180 x 90 x 25.5mm
• Max Power Consumption: 4.63W(220V/50Hz)
• Max Heat Dissipation: 15.80BTU/h

Software Features

• Transfer Method: Store and Forward
• MAC Address Table: 4K
• Advanced Functions: Green Technology
• 802.3X Flow Control
• Back Pressure
• 802.1p/DSCP QoS (for V7 and later version)

Others

• Certification: FCC, CE, RoHs

Shipping Dimensions

• Length: 18.5 cm
• Width: 11 cm
• Height: 8.5 cm
• Weight: 0.29 kg
