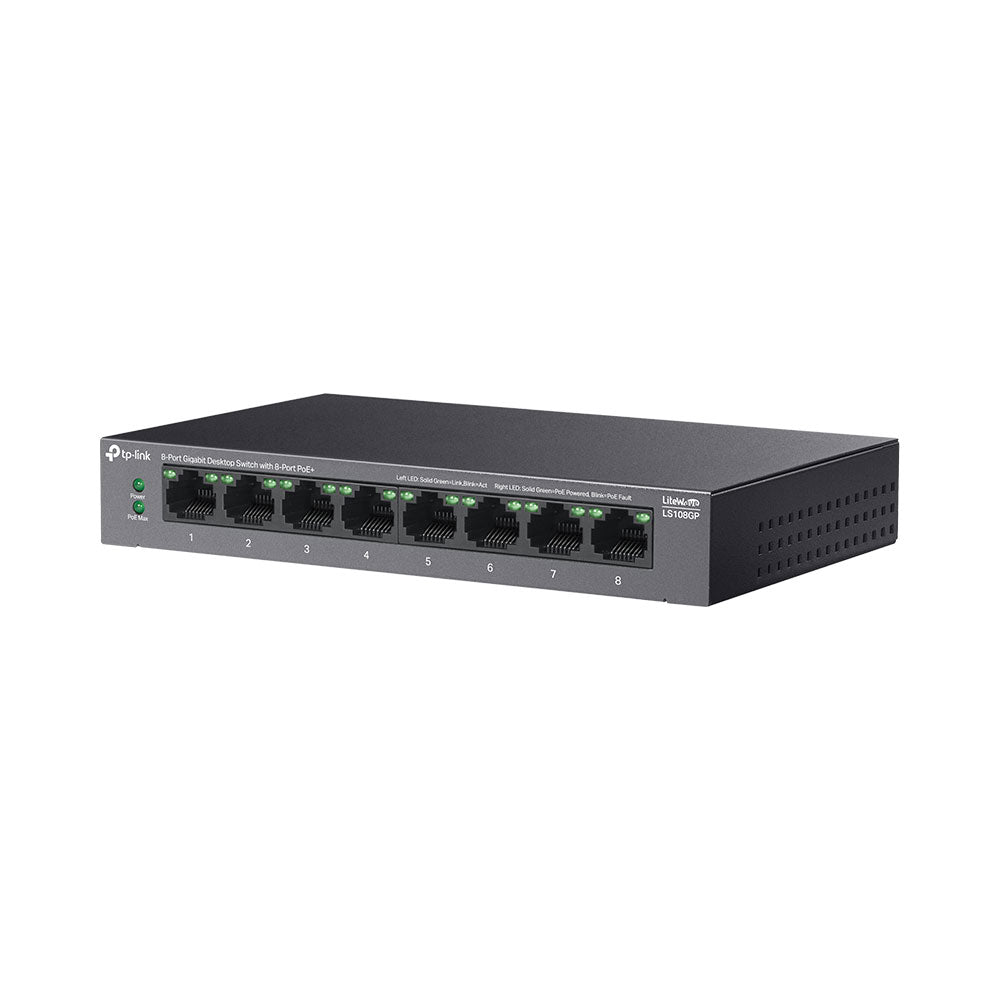

TP-LINK 8-PORT GIGABIT DESKTOP SW & 8PORT POE+

Features

• Full Gigabit Ports - Eight Gigabit auto-negotiation ports provide up to 16Gbps switching capacity.
• 62W PoE Budget - Eight Gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points and IP phones via a single cable. Up to 30W PoE output is supported by each PoE port.
• Up to 250m PoE Transmission - With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
• PoE Auto Recovery - Automatically reboots your dropped or unresponsive PoE-powered devices.
• Plug-and-Play - Simply plug and play for instant connectivity with no configuration required.
• Silent Operation - Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
• Reliable Hardware Design - Durable metal casing and desktop/wall-mounting design makes it well-suited for different environments.

Specifications

Hardware Features

• Interface: 8× 10/100/1000Mbps Auto-Negotiation RJ45 Ports (Ports 1–8 support 802.3af/at PoE+)
• Auto MDI/MDIX: Supported
• Network Media:
• 10BASE-T: UTP CAT3, 4, 5 Cable (Max. 100m); EIA/TIA-568 100Ω STP (Max. 100m)
• 100BASE-TX: UTP CAT5, 5e Cable (Max. 100m); EIA/TIA-568 100Ω STP (Max. 100m)
• 1000BASE-T: UTP CAT5, 5e, 6 or Above Cable (Max. 100m); EIA/TIA-568 100Ω STP (Max. 100m)
• Fan Quantity: Fanless
• Installation: Desktop / Wall Mounting
• Power Supply: External Power Adapter (Output 53.5VDC 1.31A)

Poe Features

• PoE Standard: IEEE 802.3af/at Compliant
• PoE Ports: Ports 1–8
• Maximum PoE Output per Port: 30W
• Total PoE Budget: 62W

Dimensions

• (W × D × H): 158 × 99 × 25mm

Max. Power Consumption

• 5.53W (220V 50Hz, no PD Connected)
• 71.61W (220V 50Hz, with 62W PD Connected)

Max. Heat Dissipation

• 18.81 BTU/h (220V 50Hz, no PD Connected)
• 243.47 BTU/h (220V 50Hz, with 62W PD Connected)

Performance

• Switching Capacity: 16Gbps
• Packet Forwarding Rate: 11.9Mpps
• MAC Address Table: 4K
• Jumbo Frame: 16KB

Advanced Features

• Extend Mode Button (Ports 1~2, up to 250m PoE Power Supply and Data Transmission)
• PoE Auto Recovery Button (Ports 1–8)
• MAC Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Green Ethernet Technology

Transfer Method

• Store and Forward

Certification

• FCC
• CE
• RoHS

Environment

• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)

Shipping Dimensions

• Length: 19.6 cm
• Width: 13.1 cm
• Height: 12.1 cm
• Weight: 0.67 kg
