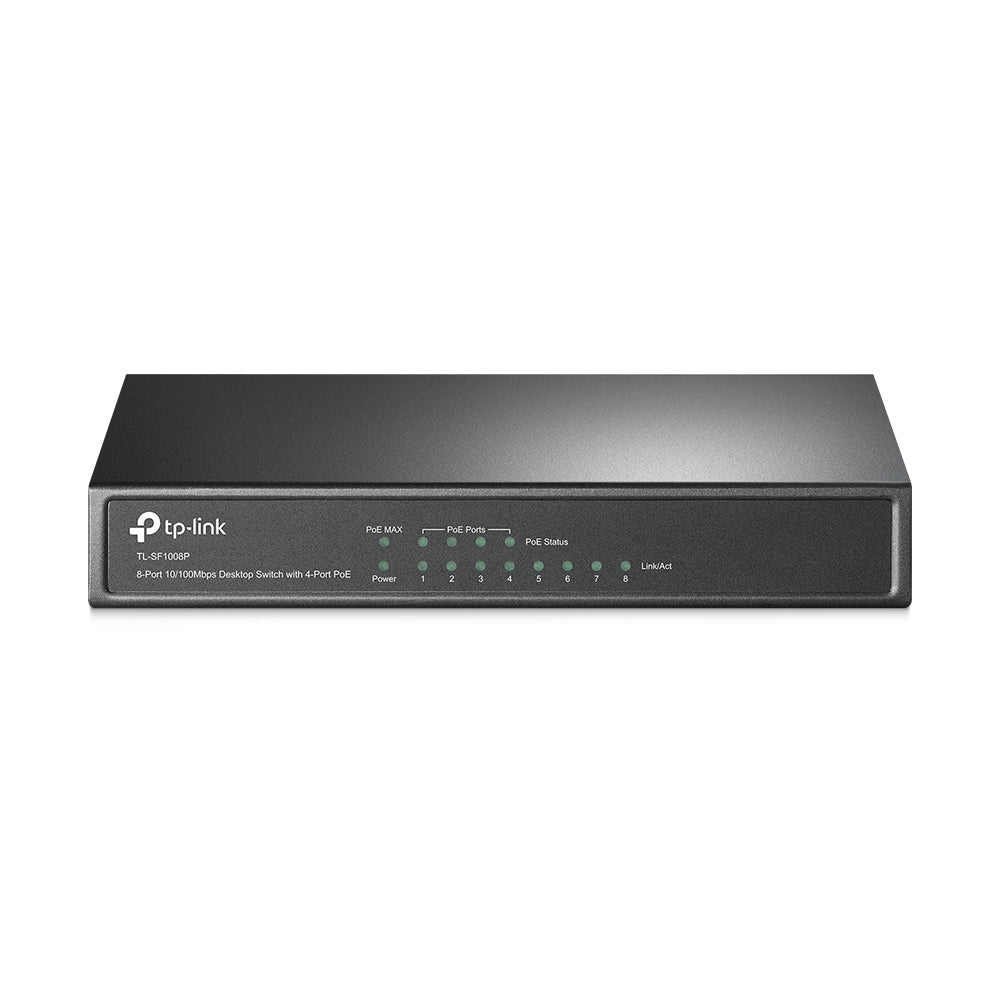

TP-LINK 8-PORT FE 4-PORT POE DESKTOP SWITCH

Features

• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af compliant PDs, expands home and office network
• Supports PoE power up to 15.4W for each PoE port
• Supports PoE power up to 57W for all PoE ports
• Requires no configuration and installation

Specifications

Hardware Features

• Interface: 8 10/100Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: No
• Power Consumption: Maximum (PoE on): 60.2W (220V/50Hz)
• Maximum (PoE off): 3.2W (220V/50Hz)
• External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
• PoE Ports (RJ45)Standard: 802.3 af compliant
• PoE Ports: Port1- Port4
• Power Supply: 57W
• Backbound Bandwidth: 1.6Gbps
• Mac Address Table: 2K
• Dimensions ( W x D x H ): 171 x 98 x 27mm
• Max Power Consumption: 2.66(220/50Hz. no PD connected)
• 65.92(220/50Hz. with 57W PD connected)
• Max Heat Dissipation: 9.08BTU/h(no PD connected)
• 224.92BTU/h(with 57W PD connected)

Software Features

• Transmission Method: Store-And-Forward
• Advanced Functions: Compatible With IEEE 802.3af Compliant PDs
• Priority Function
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Others

• Certification: FCC, CE, RoHS
• Consumption: 2.3 watts (max. no PD connected)
• 59.3 watts (max. with 57w PD connected)

Shipping Dimensions

• Length: 28 cm
• Width: 22.3 cm
• Height: 6.8 cm
• Weight: 0.97 kg
