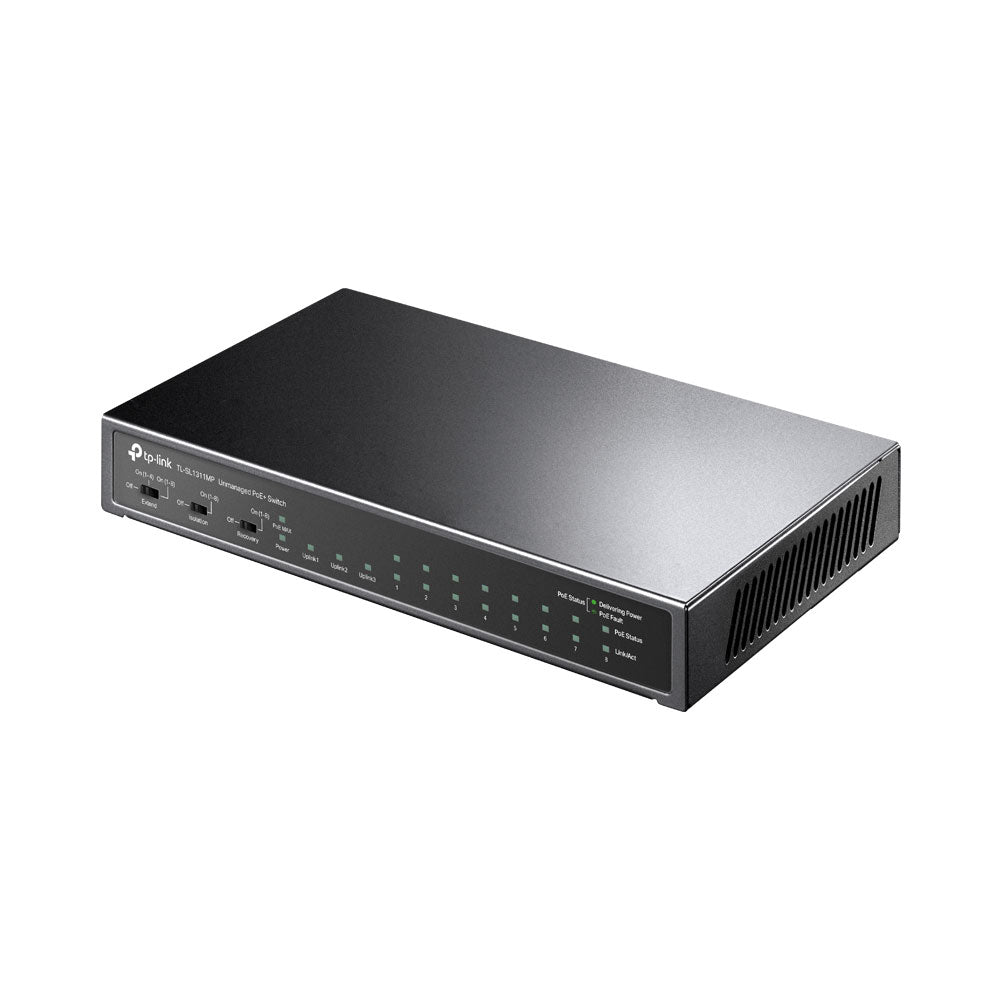

TP-LINK 8-PORT 10/100MBPS + 3-PORT GIGABIT

Features

• 8x 10/100 Mbps RJ45 Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
• 8x PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30W for each PoE port
• Supports PoE Power up to 124W for 8 PoE ports
• Up to 250m data and power transmitting range under Extend Mode
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Fanless Design reduces power consumption and works silently in its location
• Plug and play with no configuration required

Specifications

Hardware Features

• Interface: 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
• AUTO Negotiation
• AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• External Power Supply: External Power Adapter (Output: 53.5VDC / 2.43A)
• Packet Forwarding Rate: 5.6544Mpps
• PoE Ports (RJ45): Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 124W
• Mac Address Table: 2K
• Jumbo Frame: 16KB
• Switching Capacity: 7.6Gbps
• Dimensions (W x D x H) 209 × 126 × 26mm
• Max Power Consumption: 5.95W (220/50 Hz. no PD connected)
• 140.92W (220/50 Hz. with 124 W PD connected)
• Max Heat Dissipation: 20.29 BTU/h (no PD connected)
• 480.54 BTU/h (220/50Hz. with 124W PD connected)

Software Features

• Transmission Method: Store-And-Forward
• Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1–8)
• PoE Auto Recovery Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Others

• Certification: FCC, CE, RoHS
• Environment: Operating Temperature: 0–40 °C (32–104 ℉)
• Storage Temperature: -40–70 °C (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Shipping Dimensions

• Length: 31.5 cm
• Width: 24 cm
• Height: 7 cm
• Weight: 1.69 kg
