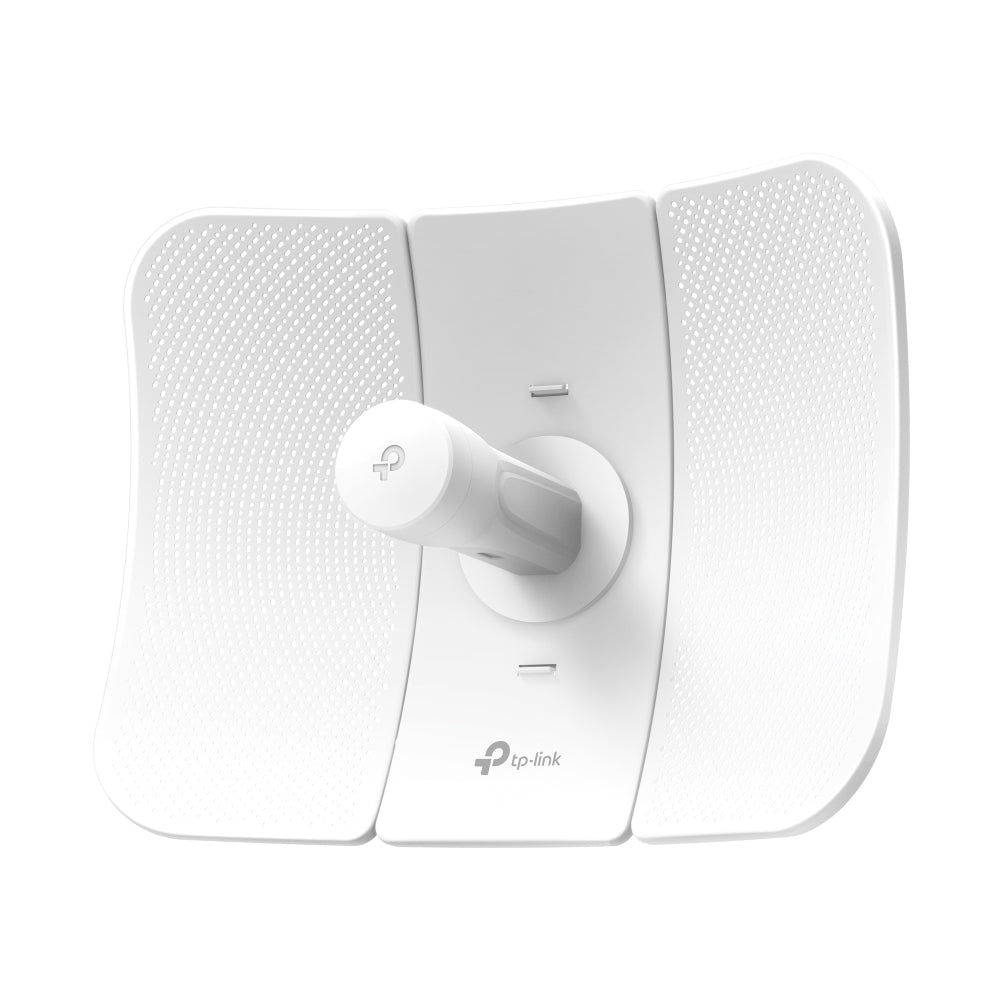

TP-LINK 5GHZ 150MBPS 23DBI CPE

Features

• 150Mbps Wireless Speed - Reliable 5.0GHz performance for long-distance outdoor links
• 23dBi High-Gain Directional Antenna - Excellent beam directivity with improved latency and noise cancellation
• Long-Range Connectivity - Ideal for point-to-point and point-to-multipoint deployments
• Pharos MAXtream TDMA - Enhances throughput and reduces interference in high-density environments
• Passive PoE Deployment - Includes adapter supporting up to 60m installation distance for flexible deployment
• Durable Outdoor Design - IP65 enclosure with 15kV ESD and 6kV lightning protection for all-weather reliability
• Quick Assembly Design - Snap-lock components ensure fast installation and structural stability in strong winds

Specifications

• Wireless Standards: IEEE 802.11a/n
• Frequency: 5.15GHz~5.85GHz
• Signal Rate: up to 150Mbps (Dynamic)
• Transmission Power: Up to 23dBm (Adjustable)
• Antenna: 23dBi High-Gain Directional Antenna
• Beamwidth: 7° (Azimuth) / 10° (Elevation)
• Interface: 1× 10/100Mbps Shielded Ethernet Port (LAN/PoE)
• Button: Reset
• PoE: 24V Passive PoE (Adapter Included)
• Power Supply: Passive PoE (4,5+ Pins; 7,8– Pins), 16~27VDC
• Max. Power Consumption: 4.8W
• Protection: 15kV ESD Protection, 6kV Lightning Protection
• Enclosure: Outdoor PC Stabilised Plastic
• Weatherproof Rating: IP65
• Wireless Features: Pharos MAXtream TDMA, Beamforming, Long-Range PtP/PtMP, Auto Channel Selection, DFS, Adjustable Channel Width (5/10/20/40MHz)
• Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK, 64/128/152-bit WEP, MAC Filtering
• Network Features: VLAN Tagging, Bandwidth Control, Static Routing, IP & MAC Binding
• Management: Pharos Control, Web UI (HTTP/HTTPS), SNMP v2c, SSH, Remote Management
• Tools: Speed Test, Ping, Traceroute, Spectrum Analyser, Antenna Alignment
• Dimensions (W × D × H): 350 × 255 × 207mm
• Operating Temperature: -40~70°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH, Non-Condensing
• Storage Humidity: 5~95% RH, Non-Condensing

Shipping Dimensions

• Length: 32.8 cm
• Width: 15.5 cm
• Height: 13.5 cm
• Weight: 1.66 kg
