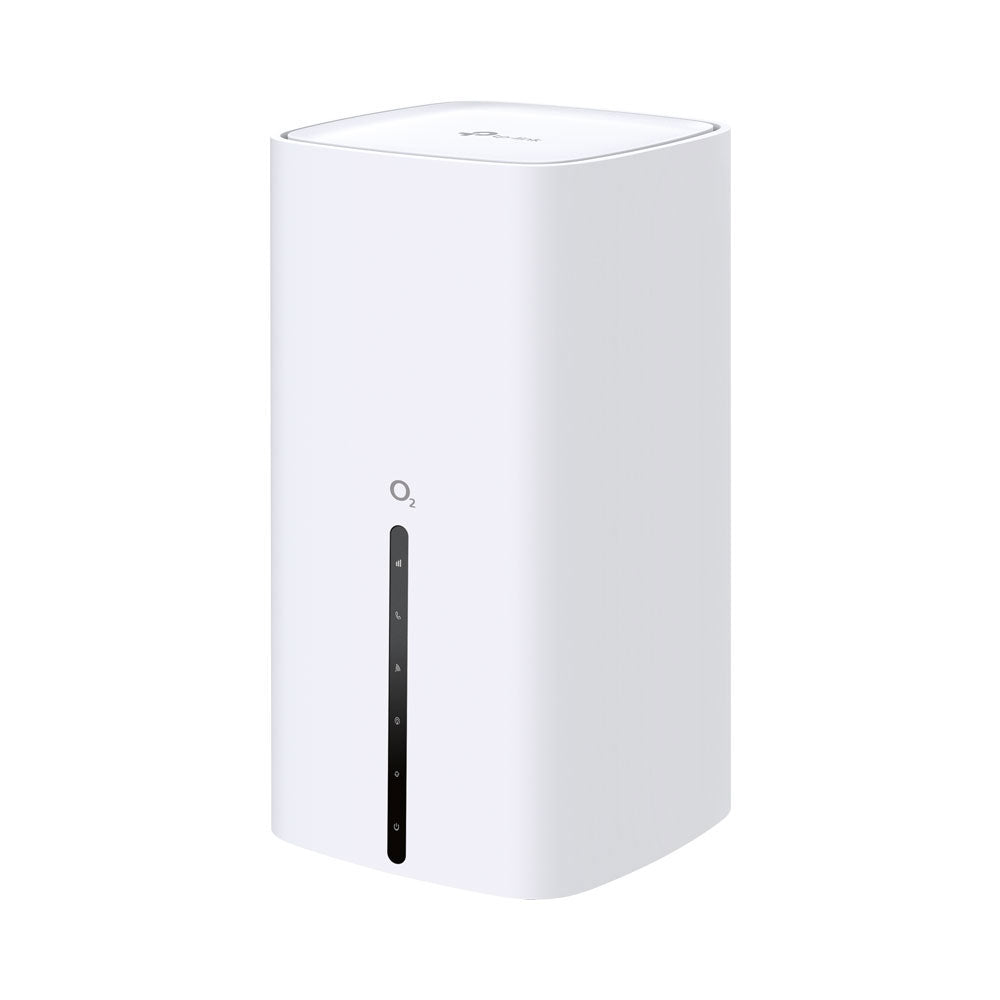

TP-LINK 5G AX3000 WIFI 6 TELEPHONY VOICE ROUTER

Features

• Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 3.4Gbps
• Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads and smooth video chats and video conferences
• AX3000 Dual-Band Wi-Fi 6 Speed - 2402Mbps (5.0GHz) and 574Mbps (2.4GHz)
• VoLTE/CSFB Telephony - With 1× voice port, users can make or receive phone calls over the internet simply by connecting the device to their existing telephone set
• Plug and Play - Enjoy 5G network right after inserting a SIM card
• Supports EasyMesh - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage
• Gigabit Ports for Consummate Connectivity - Gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS and more
• Easy Remote Management - TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud) are supported

Specifications

Hardware Features

• CPU: 1GHz Dual-Core CPU
• Interface: 3× 10/100/1000Mbps RJ45 LAN Ports (1× port for WAN/LAN auto-sensing)
• Button: 1x RESET/Wi-Fi multiplex button and 1× WPS button
• External Power SupplyOutput: 12V 2A
• Input: 100-240V~50-60Hz 0.8A
• Dimensions: 99 × 99 × 192mm
• Antenna: Internal Wi-Fi antennas; optional Internal/external LTE/5G antennas

Wireless Features

• Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
• Frequency: 2.4GHz and 5.0GHz
• Signal Rate5G SA : 2.4Gbps (downstream) / 900Mbps (upstream)
• 5G NSA: 3.4Gbps (downstream) / 550Mbps (upstream)
• LTE: 1.6Gbps (downstream) / 200Mbps (upstream)
• Transmit Power: CE:≤20dbm (2.4GHz); ≤23dbm (5G band1/band2), ≤30dbm (5G band3), RCM: ≤30dbm (2.4GHz);≤23dbm (5G band1/band2), ≤30dbm (5G band3/band4)
• Wireless Security: WPA/WPA2-PSK/WPA3 encryption
• Network Type: 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78, 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28 | TDD-LTE: B38/B40/B41/B42/B43, 3G: DC-HSDPA, HSPA+, HSDPA, HSUPA,WCDMA B1/B5/B8
• Mesh Technology: 802.11k/v/r, support EasyMesh

Software Features

• Working Mode: 5G/4G/3G, Wi-Fi Router
• Multi SSID: 3 more 2.4GHz/5GHz Network
• Features: Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, Dynamic DDNS, SIM Management,SMS, Cloud Upgrade, EasyMesh , VoLTE, IPTV, IPv6, NAT Forwarding, Firewall, LED Control, Network Diagnosic, CWMP, SNMP, Traffic Statistic, WPS,1024-QAM, OFDMA, IPSEC VPN, WEB Remote Control
• WAN Type: Dynamic: IP/Static IP/PPPoE/L2TP/PPTP
• Protocols: Supports IPv4 and IPv6

Others

• Certification: CE, RoHS
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux Internet
• Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher
• EnvironmentOperating Temperature: 0°C~40°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Shipping Dimensions

• Length: 22.45 cm
• Width: 22.1 cm
• Height: 11.5 cm
• Weight: 1.14 kg
