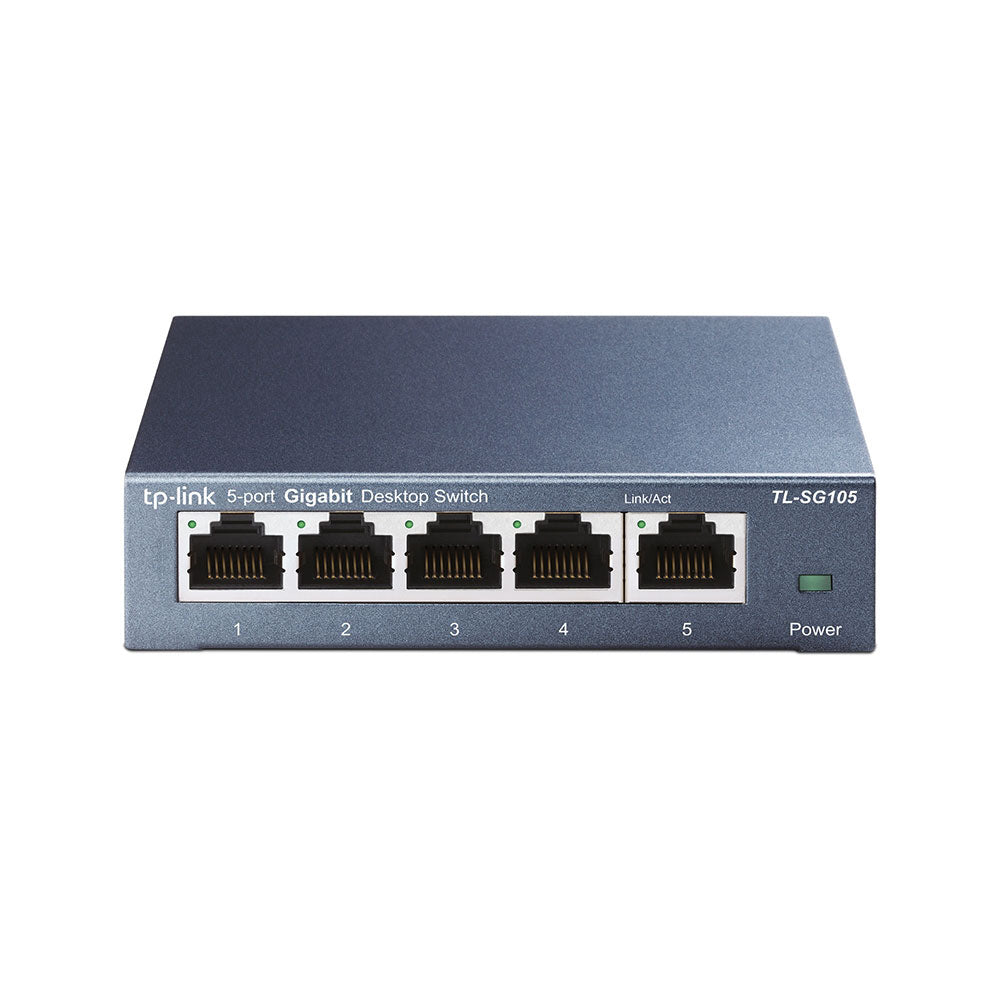

TP-LINK 5-PORT GIGABIT DESKTOP SWITCH

Features

• 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3x flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS and IGMP Snooping function
• Plug and play, no configuration needed

Specifications

Hardware Features

• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
• Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 9VDC / 0.6A)
• LED Indicator: System Power
• Link, Speed and activity indicators per port built into each RJ-45 port
• Dimensions (W x D x H): 99.8 x 98 x 25mm
• Max Power Consumption: 2.43W(220V/50Hz)
• Max Heat Dissipation: 8.29BTU/h

Performance

• Packet Forwarding Rate: 7.4Mpps
• MAC Address Table: 2K
• Packet Buffer Memory: 1Mb
• Jumbo Frame: 16KB

Software Features

• Advanced Features: Green Technology, saving power up to 84%
• 802.3X Flow Control
• 802.1P/DSCP QoS (for V2 and later version)
• IGMP Snooping
• Transfer Method: Store and Forward

Others

• Certification: CE, FCC, RoHS

Shipping Dimensions

• Length: 12.8 cm
• Width: 12.5 cm
• Height: 9.2 cm
• Weight: 0.37 kg
