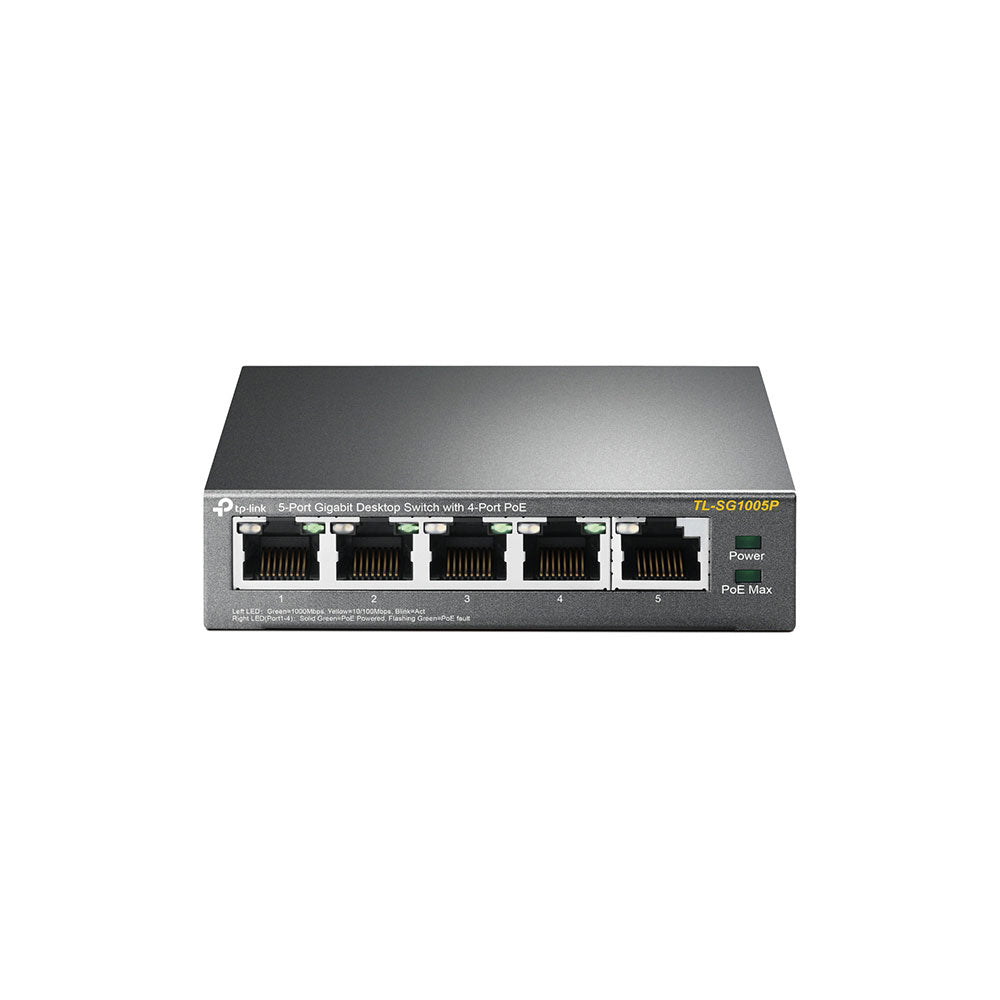

TP-LINK 5-PORT GBE 4-PORT POE DESKTOP SWITCH

Features

• 5 10/100/1000Mbps RJ45 ports
• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af compliant PDs, expands home and office network
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 15.4W for each PoE port
• Supports PoE Power up to 56W for all PoE ports
• Requires no configuration and installation

Specifications

Hardware Features

• Interface: 5 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
• PoE Ports (RJ45)Standard: 802.3 af compliant
• PoE Ports: Port1- Port4
• Power Supply: 56W
• Backbound Bandwidth10Gbps
• Mac Address Table2K
• Dimensions (WxDxH): 99.8 x 98 x 25mm
• Max Power Consumption: 3.95W(220/50Hz. no PD connected)
• 64.44W(220/50Hz. with 56W PD connected)
• Max Heat Dissipation: 13.48BTU/h(no PD connected)
• 219.87BTU/h(with 56W PD connected)

Software Features

• Advanced Features: Compatible With IEEE 802.3af Compliant PDs
• Priority Function
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Transfer Method: Store-And-Forward

Others

• Certification: FCC, CE, RoHS
• Consumption: 4.26 watts (max. no PD connected)
• 63.31 watts (max. with 56w PD connected)

Shipping Dimensions

• Length: 19.6 cm
• Width: 13.1 cm
• Height: 12.1 cm
• Weight: 0.73 kg
