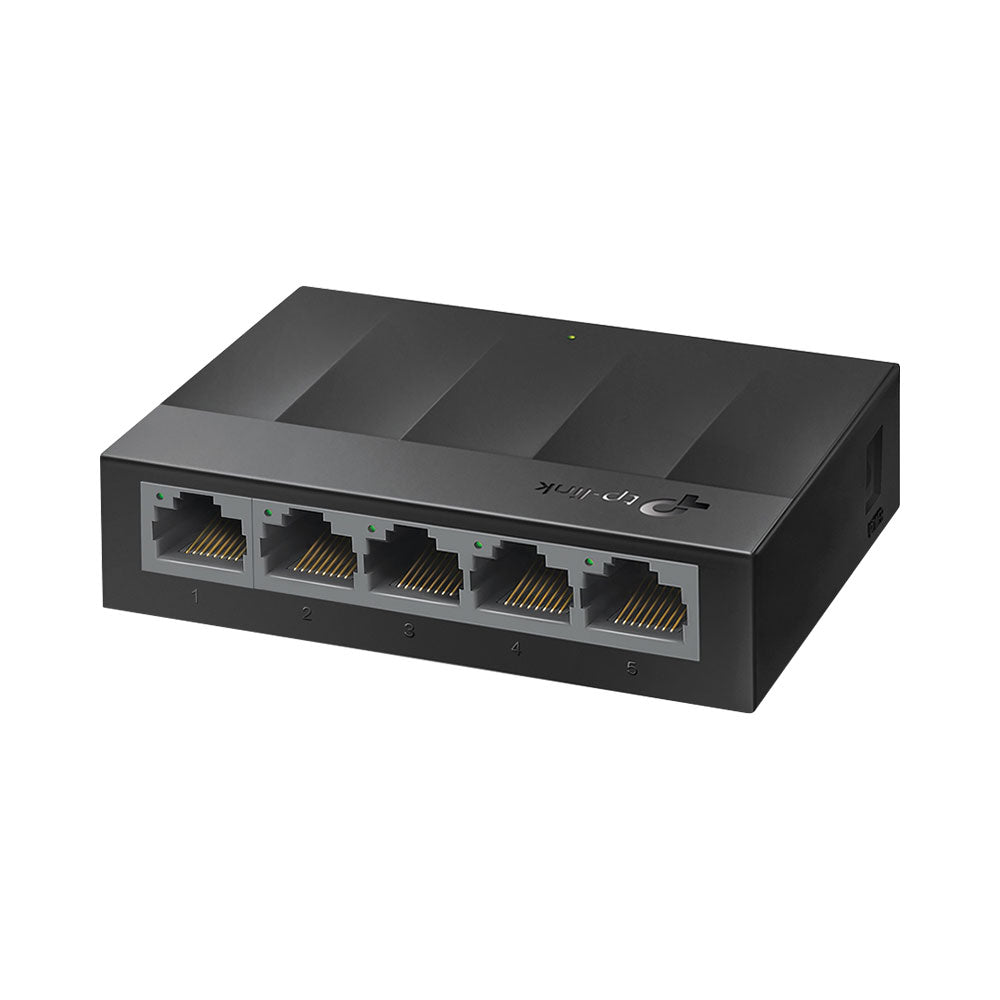

TP-LINK 5-PORT 10/100/1000MBPS DESKTOP SWITCH

Features

• 5× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
• Green Ethernet technology saves power
• IEEE 802.3X flow control provides reliable data transfer
• Plastic casing, desktop or wall-mounting design
• Plug and play, no configuration needed
• Fanless design ensures quiet operation

Specifications

Hardware Features

• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
• Interface: 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 5VDC/0.6A)
• Dimensions ( W x D x H ): 90 × 72 × 23 mm
• Max Power Consumption: 3.7W
• Max Heat Dissipation: 12.617 BTU/h

Performance

• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.4 Mpps
• MAC Address Table: 2K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame: 16 KB

Software Features

• Advanced FeaturesGreen Technology, 802.3X Flow Control, Back Pressure
• Transfer Method: Store and Forward

Others

• Certification: CE, FCC, RoHS

Shipping Dimensions

• Length: 9.4 cm
• Width: 9.1 cm
• Height: 8.4 cm
• Weight: 0.18 kg
