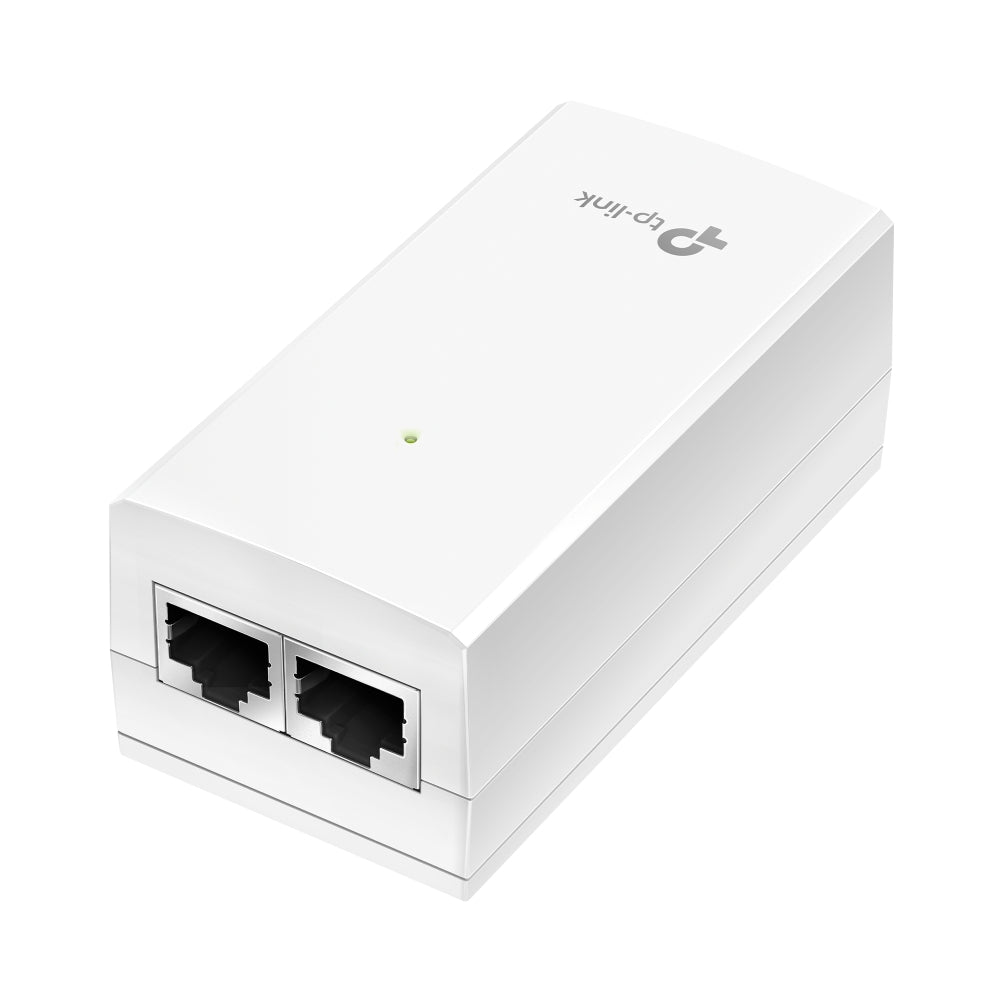

TP-LINK 48V PASSIVE POE ADAPTER

Features

• 48V Passive PoE Output - Delivers up to 18W power for compatible devices
• Gigabit Ethernet Support - Ensures high-speed data transmission
• Power + Data Over One Cable - Simplifies installation and reduces cabling
• Plug-and-Play Operation - No configuration required
• Auto Power Detection - Automatically determines device power requirements
• Compact Wall-Mount Design - Flexible and space-saving installation

Specifications

• Interface: 1× 10/100/1000Mbps RJ45 Shielded Data In Port, 1× 10/100/1000Mbps RJ45 Shielded Passive PoE Port, 1× 100~240V AC Power Input
• Network Media: 10BASE-T (UTP Cat 3/4/5, Max. 100m), 100BASE-TX (UTP Cat 5/5e, Max. 100m), 1000BASE-T (UTP Cat 5/5e/6, Max. 100m)
• Output Voltage: 48V DC (Max. 18W)
• LED Indicator: PWR
• Dimensions: 85.8 × 43.9 × 35mm
• Certification: FCC, CE, RoHS
• Operating Temperature: 0~40°C
• Storage Temperature: -40~70°C
• Operating Humidity: 10~90% RH, Non-Condensing
• Storage Humidity: 5~90% RH, Non-Condensing

Shipping Dimensions

• Length: 34.75 cm
• Width: 21.15 cm
• Height: 15.95 cm
• Weight: 2.25 kg
