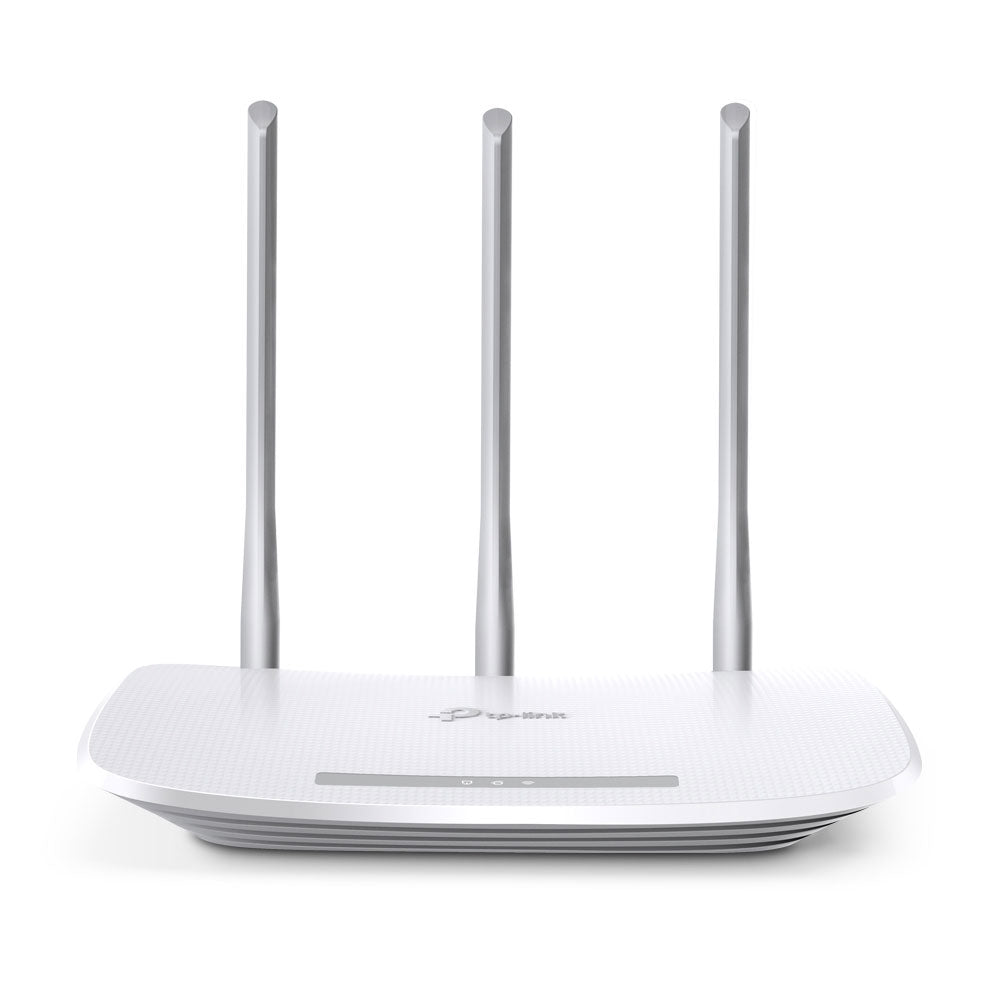

TP-LINK 300MBPS WIRELESS N ROUTER

Features

• 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
• Three antennas greatly increase the wireless robustness and stability
• Easy wireless security encryption at a push of WPS button
• IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
• Compatible with IPv6 -the more recent Internet Protocol version
• TP-LINK Tether App allows quick installation and easy management using any mobile device

Specifications

Hardware

• Interface: 4 10/100Mbps LAN PORTS, 1 10/100Mbps WAN PORT
• Button: Reset Button, WPS Button
• External Power Supply: 9VDC / 0.6A
• Wireless Standards: IEEE 802.11n, IEEE 802.11g,: IEEE 802.11b
• Antenna: 3 x 5dBi fixed Omni Directional, Antennas (RP-SMA)

Wireless Features

• Frequency: 2.4-2.4835GHz
• Signal Rate:
• 11n: Up to 300Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity:
• 270M: -70dBm@10% PER
• 130M: -74dBm@10% PER
• 108M: -74dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -93dBm@8% PER
• 6M: -95dBm@10% PER
• 1M: -98dBm@8% PER
• Transmit Power: CE <20dBm, FCC <30dBm
• Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
• Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Software Features

• Quality of Service: WMM, Bandwidth Control
• WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access), Bigpond
• Management: Access Control, Local Management; Remote Management
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server,Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, Comexe, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
• Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
• Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
• Protocols: Support IPv4 and IPv6
• Guest Network: 2.4GHz Guest Network x1

Others

• Certification: CE, RoHS

Physical

Dimensions: ( W x D x H ) 230 x 144 x 35 mm
