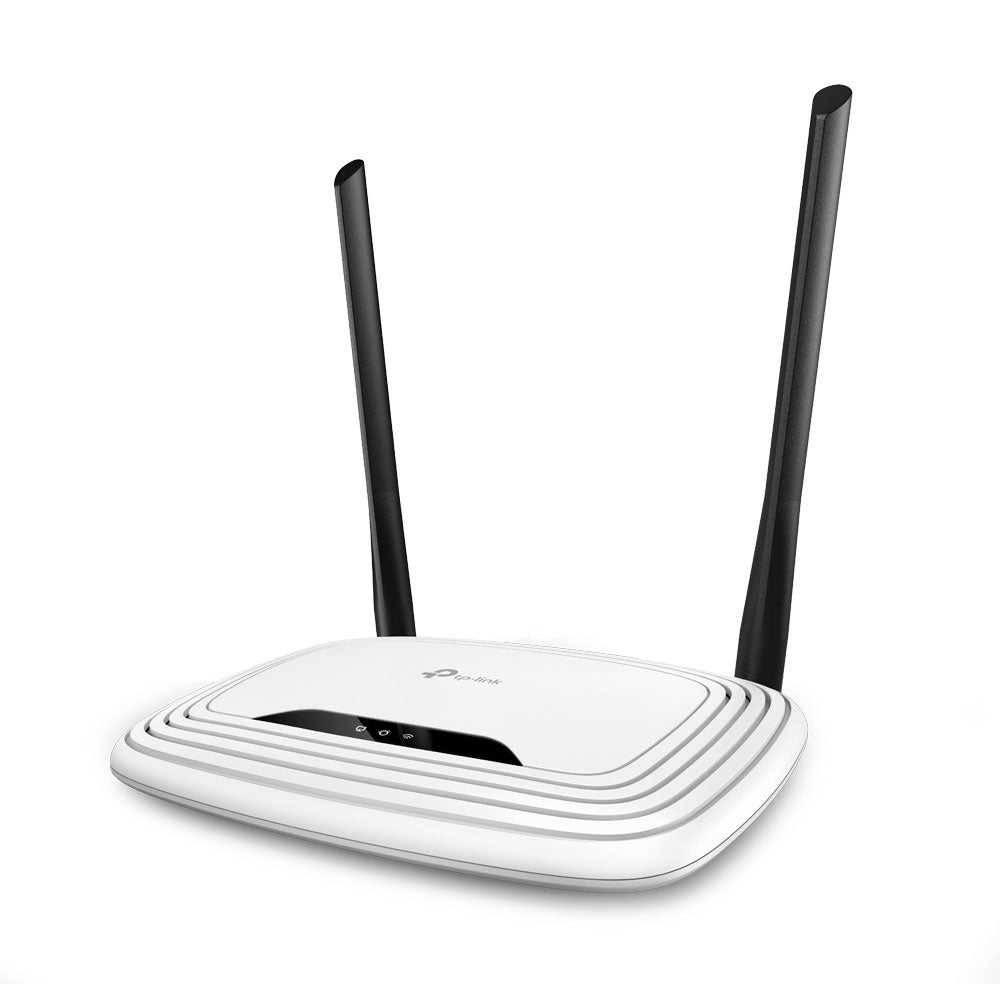

TP-LINK 300MBPS WIRELESS N MULTI FUNCTION ROUTER

Features

• Performance: 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
• Guest Network: provides separate access for guests while securing the home network
• IPv6: compatible with IPv6 (Internet Protocol version 6)
• WPS button: easy wireless security encryption at a push of WPS button
• IPTV: supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimise IPTV streaming
• Bandwidth Control: assigns your preferred devices with more bandwidth
• Parental Controls: manage when and how connected devices can access the internet

Specifications

Hardware Features

• Interface: 4 10/100Mbps LAN PORTS
• 1 10/100Mbps WAN PORT
• Ports: 4 × 10/100Mbps LAN Ports, 1 × 10/100Mbps WAN Port
• Button: WPS/Reset Button
• External Power Supply: 9VDC / 0.6A
• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Dimensions (W x D x H): 173 x 118 x 33mm
• Antenna: 2 Fixed Omni Directional Antennas

Wireless Features

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.412~2.472GHz
• Signal Rate:
• 11n: Up to 300Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity:
• 270M: -70dBm@10% PER
• 130M: -74dBm@10% PER
• 108M: -74dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -87dBm@8% PER
• 6M: -90dBm@10% PER
• 1M: -98dBm@8% PER
• Transmit Power: CE <20dBm, FCC <30dBm
• Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
• Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Software Features

• Quality of Service: WMM,Bandwidth Control
• WAN Type: Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access), Bigpond
• Management: Access Control, Local Management, Remote Management
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, Comexe, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
• Access Control: Parental Controls, Local Management Control, Host list, Access Schedule, Rule Management
• Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
• Protocols: Support IPv4 and IPv6
• Guest Network: 2.4GHz Guest Network
• Working Modes: Wireless Router, Range Extender, Access Point, WISP

Others

• Certification: CE, FCC, RoHS
• System Requirements: Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Cable or DSL Modem
• Subscription with an internet service provider (for internet access)

Shipping Dimensions

• Length: 28.8 cm
• Width: 20.2 cm
• Height: 8.6 cm
• Weight: 0.52 kg
