Features
- Cutting-edge 4G network - Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150Mbps
- Plug a SIM card and play - No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Two detachable advanced LTE antennas - Enjoy stable and efficient connections to every device thanks to the two external antennas
- Wi-Fi router mode - Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
Hardware Features
Interface1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,
1 Micro SIM Card Slot
ButtonWPS/Reset Button
External Power Supply(EU)9V/0.85A
Dimensions ( W x D x H )6.06×4.49×1.42 in ( 154×114×36 mm)
Antenna2 Detachable External 4G LTE Antennas
Wireless Features
Wireless StandardsIEEE 802.11b/g/n
Frequency2.4 GHz
Signal Rate300 Mbps
Reception Sensitivity11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm
Transmit Power< 20 dBm (2.4 GHz)
Wireless FunctionsEnable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
WAN FailoverYes
Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
Software Features
SecurityIPv4 SPI Firewall, IP and MAC Address Binding
Operating Modes3G/4G Router, Wireless Router
WAN TypeDynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
ManagementLocal Management, Remote Management
DHCPServer, DHCP Client List, Address Reservation
Port ForwardingALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNSDynDns, NO-IP
ProtocolsIPv4, IPv6
Guest Network2.4 GHz Guest Network
AdministrationUpgrade Firmware, Factory Default, System Log, Diagnostic Tools
Others
CertificationCE, RoHS

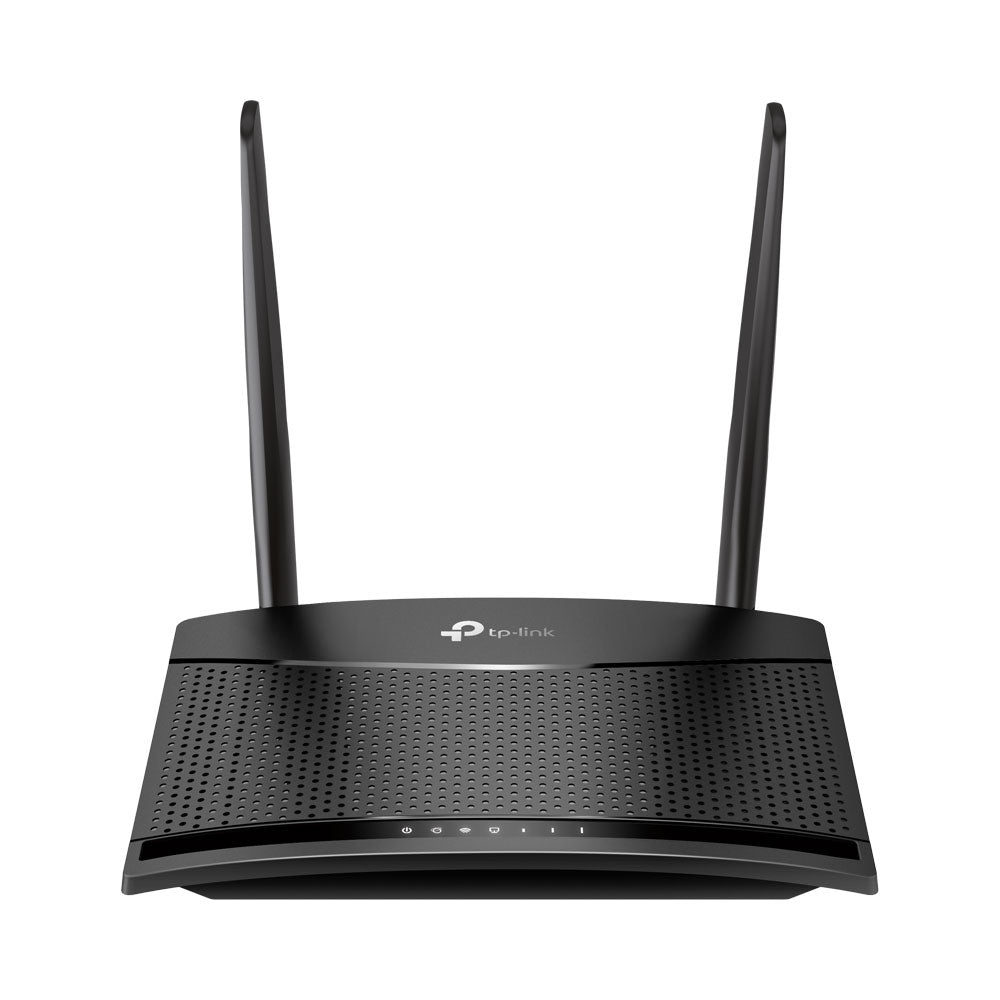

Package Contents300 Mbps Wireless N 4G LTE TL-MR100
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
RequirementsMicrosoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Micro SIM Card
EnvironmentOperating Temperature: 0°C~40°C (32℉ ~104℉)
Storage Temperature: -40°C~70°C (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Shipping Dimensions
- Length: 29.3 cm
- Width: 16.1 cm
- Height: 6.6 cm
- Weight: 0.51 kg
