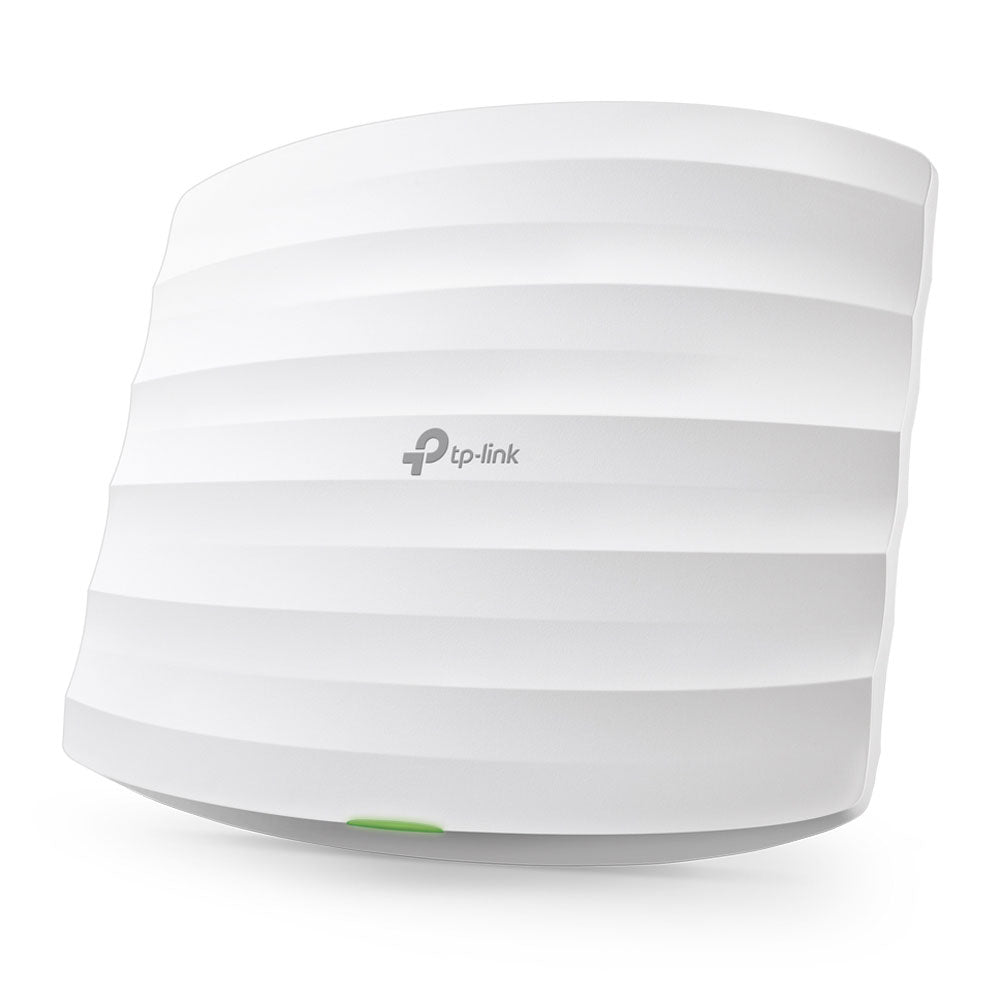

TP-LINK 300MBPS 2.4G WIRELESS N FE PASSIVE POE AP

Features

• Free cloud centralised management and Omada app for ultra convenience and easy management
• Supports passive PoE for convenient installation up to 100meters
• Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
• Multi-SSID divides multiple wireless networks for different users
• Enterprise class Wi-Fi security help to decrease network security threats
• Supports management VLAN for an enhanced network management

Hardware Features

• InterfaceFast Ethernet (RJ-45) Port *1 (Support Passive PoE)
• Button: Reset
• Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
• Power Consumption: 2.8W
• Dimensions: 189.4×172.3×29.5mm
• Antenna Type: Internal 2* 4dBi Omni
• Mounting: Ceiling /Wall Mounting (Kits included)

Wireless Features

• Wireless StandardsL: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.4-2.4835GHz
• Signal Rate: 11n: Up to 300Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity: 300M: -71dBm@10% PER, 150M: -75dBm@10% PER, 54M: -78dBm@10% PER, 11M: -93dBm@8% PER, 6M: -92dBm@10% PER, 1M: -96dBm@8% PER
• Wireless Functions: Multiple SSIDs (Up to 8 SSIDs), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
• Transmission Power: CE: ≤19dBm(EIRP), FCC: ≤21dBm

Management

• Omada Cloud Access: Yes
• Omada App: Yes
• Omada Cloud Controller: Yes
• Omada Controller Software: Yes
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1,v2c
• System Logging Local/Remote Syslog: Local/Remote Syslog
• Telnet: Yes
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• Management VLAN: Yes

Others

• Certification: CE, FCC, RoHS
• System Requirements: Microsoft Windows 10/8/7/Vista/XP

Shipping Dimensions

• Length: 26.8 cm
• Width: 24.6 cm
• Height: 6.9 cm
• Weight: 0.80 kg
