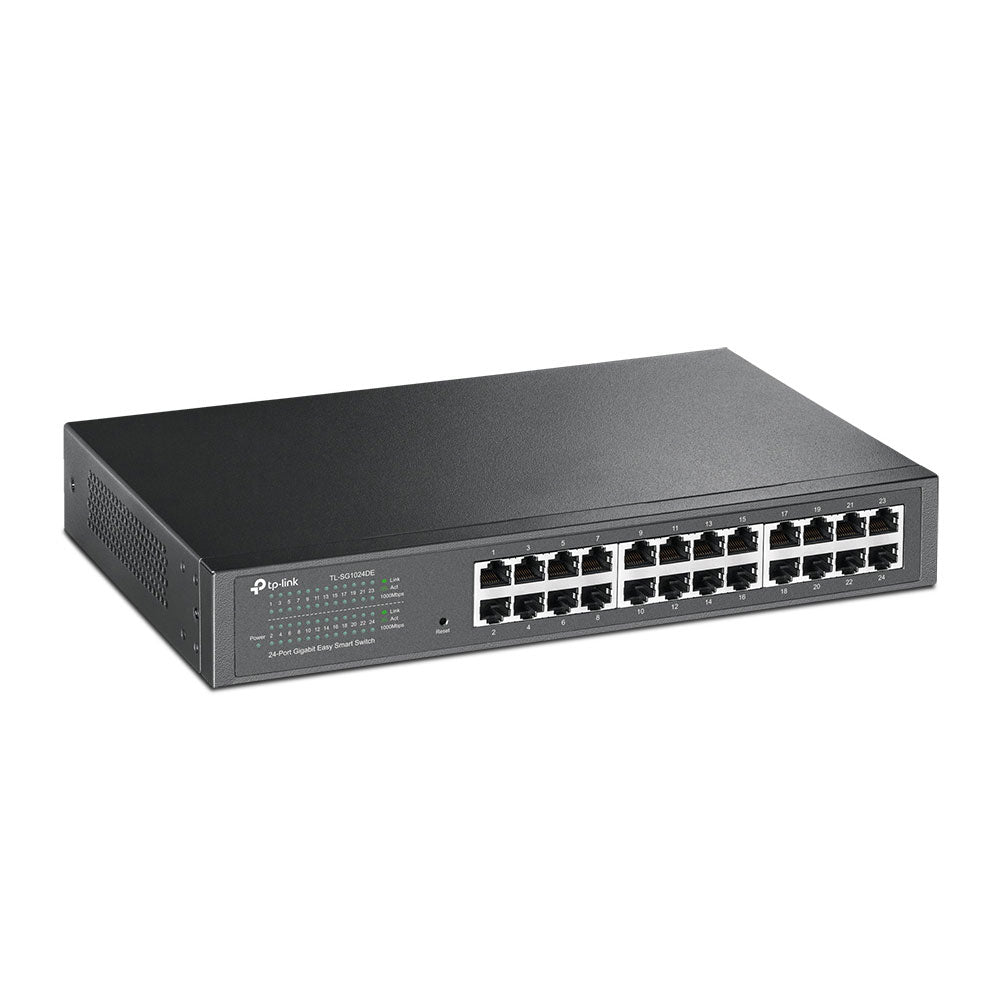

TP-LINK 24-PORT GIGABIT EASY SMART SWITCH

Features

• 24 10/100/1000Mbps RJ45 ports
• Provides network monitoring, traffic prioritisation and VLAN features
• Innovative energy-efficient technology reduces power output by up to 18%
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and management utility simplify configuration

Specifications

Hardware Features

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 24 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: No
• Power Supply: 100-240VAC, 50/60Hz
• Power Consumption: Maximum: 14.86W (220V/50Hz)
• Dimensions (W x D x H): 294 x 180 x 44mm
• Mounting: Rack Mountable
• Max Power Consumption: 33.52W (220V/50Hz)
• Max Heat Dissipation: 114.37 BTU/h

Performance

• Switching Capacity: 48Gbps
• Packet Forwarding Rate: 35.7Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 512KB
• Jumbo Frame: 9KB

Software Features

• Quality of Service: Support Port-based/ 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
• L2 Features: IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
• Transmission Method: Store-And-Forward

Others

• Certification: FCC, CE, RoHS
• System Requirements: Microsoft Windows for running Utility

Shipping Dimensions

• Length: 40 cm
• Width: 25 cm
• Height: 8 cm
• Weight: 2.15 kg
