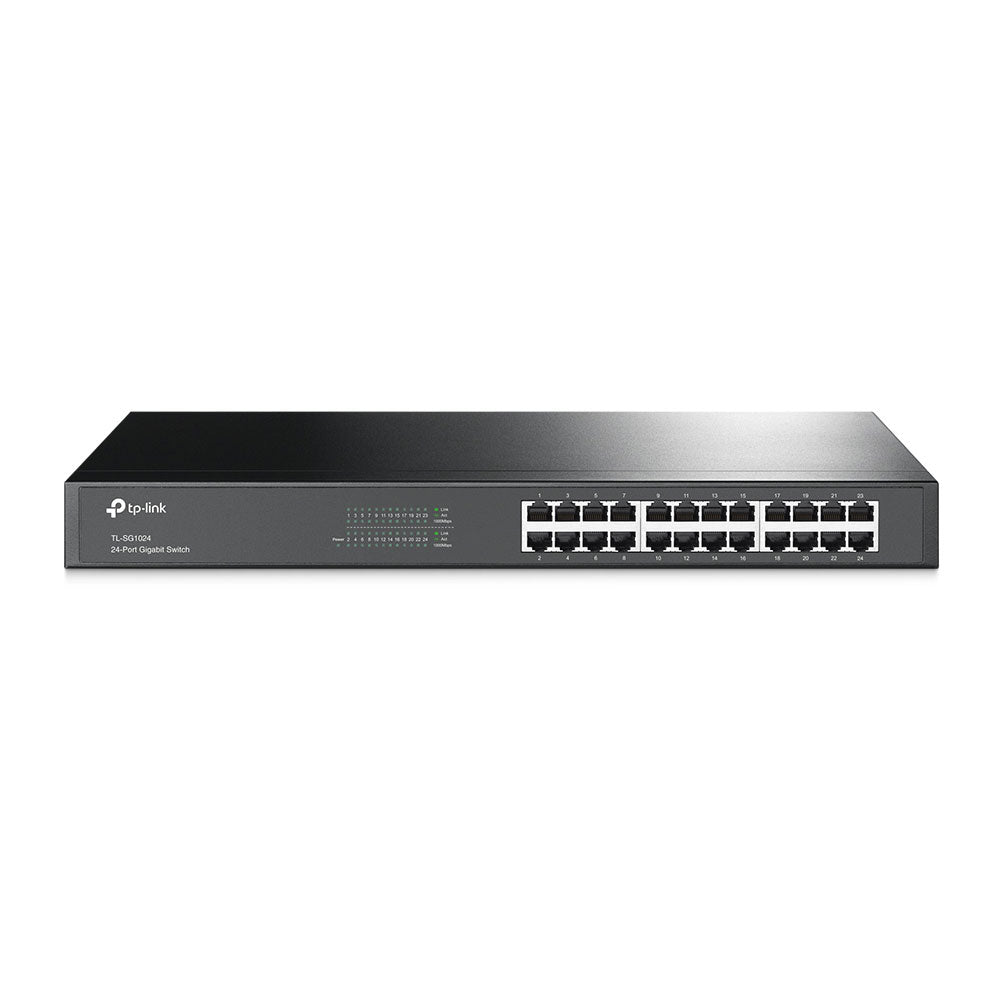

TP-LINK 24-PORT GIGABIT 1U RACKMOUNT SWITCH

Features

• 24 10/100/1000Mbps RJ45 ports
• Innovative energy-efficient technology saves power consumption
• Supports MAC address self-learning and auto MDI/MDIX
• Standard 19-inch rack-mountable steel case

Specifications

Hardware Features

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
• Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: No
• Power Supply: 100-240VAC, 50/60Hz
• Dimensions (W x D x H): 440 x 180 x 44mm
• Mounting: Rack Mountable
• Max Power Consumption: 13.08W(220V/50Hz)
• Max Heat Dissipation: 44.63BTU/h

Performance

• Switching Capacity: 48Gbps
• Packet Forwarding Rate: 35.7Mpps
• MAC Address Table: 8K
• Jumbo Frame: 10KB
• QoS802.1p/DSCP QoS
• Green Technology: Yes
• Transfer Method: Store-and-Forward

Others

• Certification: FCC, CE, RoHS

Shipping Dimensions

• Length: 52.8 cm
• Width: 25 cm
• Height: 8 cm
• Weight: 2.26 kg
