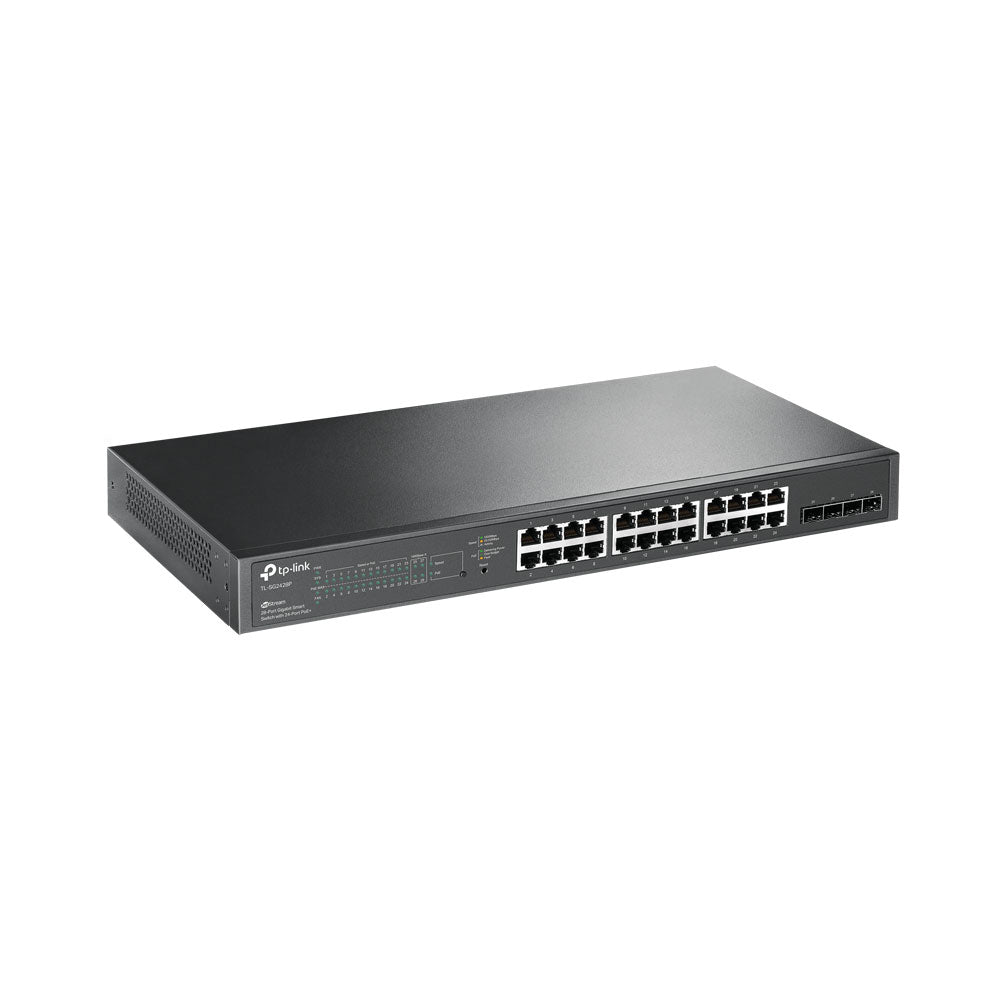

Description
Features
- 250W PoE Budget: 24x 802.3at/af-compliant PoE+ ports with a total power supply of 250W
- Full Gigabit Ports: 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbour discovery
Specifications
Hardware
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
- Interface: 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 4× Gigabit SFP Slots
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
- 1000BASE-X: MMF, SMF
- Fan Quantity: 2
- PoE+ Ports(RJ45): Standard: 802.3at/af compliant
- PoE+ Ports: 24 Ports
- Power Supply: 250 W
- Dimensions (W x D x H) 440 × 220 × 44mm
- Mounting: Rack Mountable
- Max Power Consumption: 32.1W (110V/ 60Hz with no PD connected)
- 308.6W (110V/ 60 Hz with 250W PD connected)
- Max Heat Dissipation: 109.53 BTU/h (with no PD connected)
- 1052.94 BTU/h (with 250W PD connected)
Performance
- Bandwidth/Backplane: 56 Gbps
- Packet Forwarding Rate: 41.7Mbps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9KB
Software Features
- Quality of Service:
- Support 802.1p CoS/DSCP priority
- Support 8 priority queues
- Queue scheduling: SP, WRR, SP+WRR
- Port/Flow- based Rate Limiting
- IPv6 QoS
- Voice VLAN
- L2 and L2+ Features:
- Static Routing
- DHCP Relay
- DHCP Server
- IGMP Snooping V1/V2/V3
- 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
- Spanning Tree STP/RSTP/MSTP
- BPDU Filtering/Guard
- TC/Root Protect
- Loopback detection
- 802.3x Flow Control
- Lldp, Lldp-Med
- VLAN:
- Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
- MAC/Protocol-based VLAN
- Access Control List:
- L2–L4 package filtering
- Mac Acl
- Ip Acl
- Combined ACL
- IPv6 ACL
- Security:
- Aaa
- Port Security
- DHCP Snooping
- IP-MAC-Port Binding
- IPv6-MAC-Port Binding
- ARP Inspection
- 802.1x and Radius Authentication
- SSH v1/v2
- SSL v3/TLSv1.2
- Broadcast/Multicast/Unknown-unicast Storm Control
- Dos Defend
- IPv6:
- Dual IPv4/IPv6 stack
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbour discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 Applications:
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
Management
- Omada App: Yes
- Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Management Features:
- Web-based GUI and CLI management
- SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
- RMON (1, 2, 3, 9 groups)
- CPU Monitoring
- Port Mirroring
- Firmware Upgrade: TFTP & Web
- System Diagnose: VCT
- SYSLOG & Public MIBS
- Dual Image
- Eee
Others
- Certification: CE, FCC, RoHS
- Environment
- Operating Temperature: 0–50 °C (32–122 ℉);
- Storage Temperature: -40–70 °C (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
- System Requirements: Microsoft Windows XP, Vista or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux
Shipping Dimensions
- Length: 52.8 cm
- Width: 33.6 cm
- Height: 10 cm
- Weight: 3.88 kg
