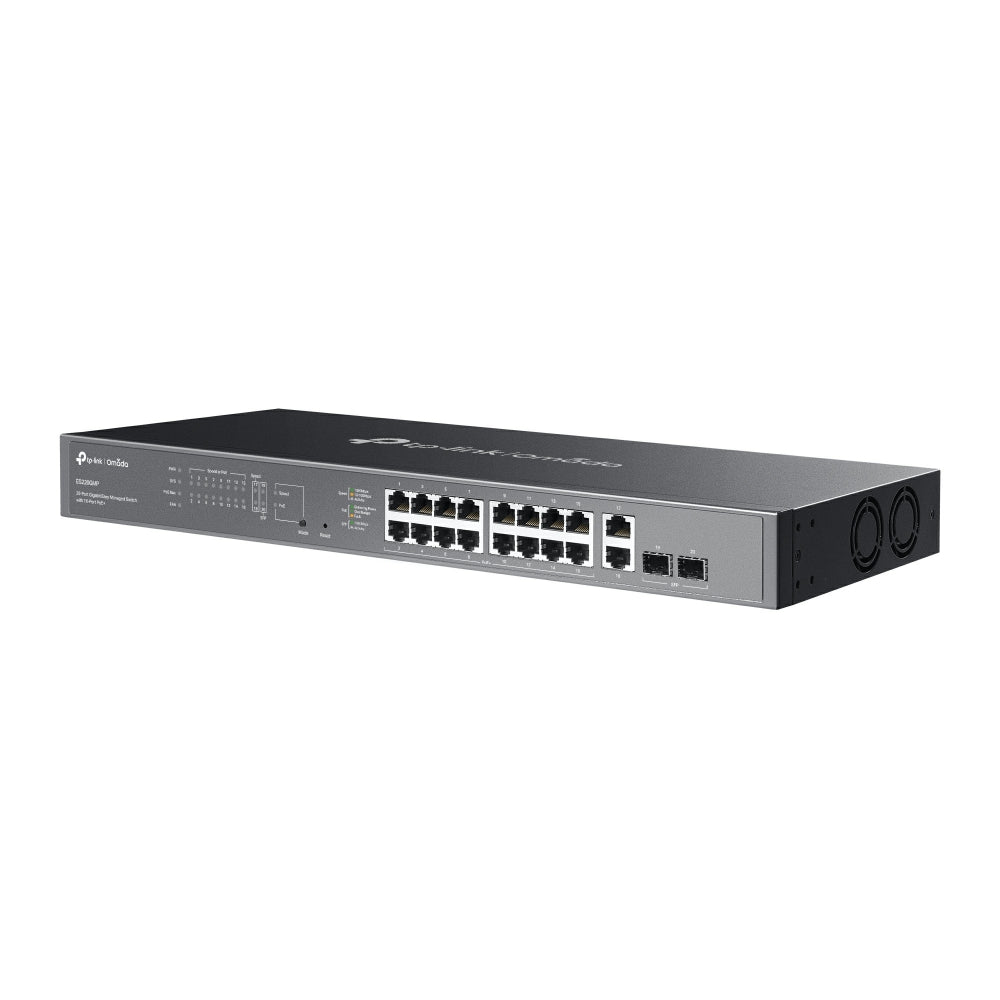

Features
- 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 2× Gigabit RJ45 port, 2× Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Specifications
Hardware Features
Interface:
- 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)
- 2× 10/100/1000 Mbps RJ45 Port
- 2× Gigabit SFP Slot
Fan Quantity: 2
Installation: Rackmountable
Physical Security Lock: Yes
Power Supply: 100–240 VAC, 50/60 Hz
PoE Ports (RJ45):
- Standard: 802.3af PoE and 802.3at PoE+ compliant
- PoE Ports: 16 ports
- PoE Budget: 250W available for all PoE+ ports, 30W max per port
- Fast PoE & Perpetual PoE
- PoE Auto Recovery
- Up to 250m PoE transmission distance
Dimensions ( W x D x H ): 440 × 180 × 44mm
Surge Protection: ±6kV
Performance
- Switching Capacity: 40Gbps
- Packet Forwarding Rate: 29.76Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4Mbit
- Jumbo Frame: 15KB
Software Features
Quality of Service:
- Port-based/802.1p/DSCP QoS
- 8 Priority Queues
- Priority Schedule Mode
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port-Based Rating Limit
- Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features:
- Static Link Aggregation
- Loop Prevention / Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
- Port Statistics
- Port Mirror Status
- Traffic Statistics
- 802.1ab LLDP
L2 Multicast:
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
Vlan:
- MTU VLAN
- Port-Based VLAN
- 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K Vid
Transmission Method: Store-And-Forward
Management Features
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
Management Features:
- Web-based GUI
- DHCP Client
- Cable Diagnostics
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Unified Configuration
Others
Certification: FCC, CE, RoHS
Environment:
- Operating Temperature: -5°C~50°C
- Storage Temperature: -40°C~70°C
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
