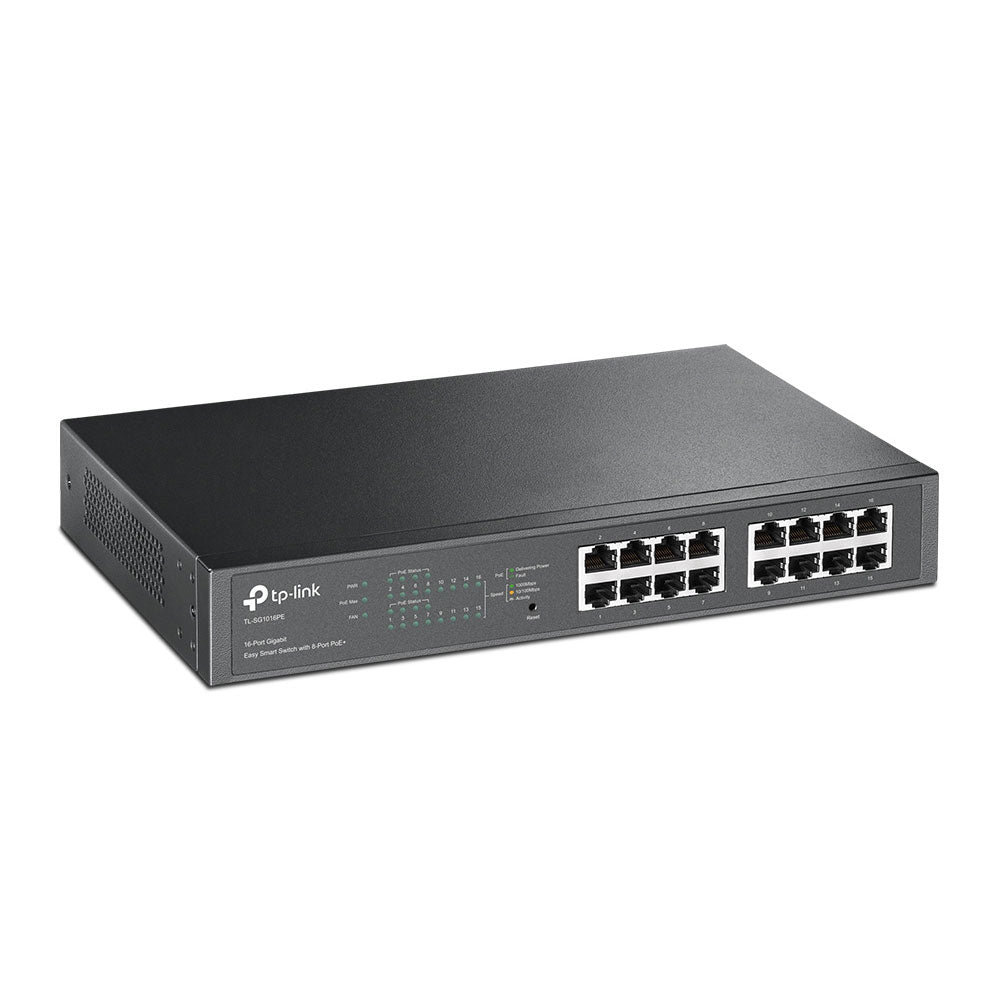

TP-LINK 16-PORT GBE 8-PORT POE+ EASY SMART SWITCH

Features

• 16 10/100/1000Mbps RJ45 ports
• Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
• With a total PoE power budget of 110W, up to 30W per port
• Works with IEEE 802.3af/at compliant devices, expanding home and office networks
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and management utility simplify configuration

Specifications

Hardware Features

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 16 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: 1
• Physical Security Lock: Yes
• Power Consumption: Maximum: 124.4W (220V/50Hz)
• PoE Ports (RJ45): Standard: 802.3 at compliant
• PoE Ports: Port 1- Port 8
• PoE Power Budget: 110W
• Dimensions (W x D x H): 294 x 180 x 44mm
• Mounting: Rack Mountable
• Max Power Consumption: 14.72W (110V/60Hz with no PD connected)
• 131.42W (110V/60Hz with 110W PD connected)
• Max Heat Dissipation: 50.22 BTU/h (with no PD connected)
• 448.41 BTU/h (with 110W PD connected)

Performance

• Switching Capacity: 32Gbps
• Packet Forwarding Rate: 23.8Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1Mbit
• Jumbo Frame: 9KB

Software Features

• Quality of Service: Support Port-Based/802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
• L2 Features: IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
• Management: Web-based GUI
• Easy Smart Configuration Utility
• Transmission Method: Store-And-Forward

Others

• Certification: FCC, CE, RoHS
• System Requirements: Microsoft Windows for running Utility

Shipping Dimensions

• Length: 40 cm
• Width: 25 cm
• Height: 8 cm
• Weight: 2.42 kg
