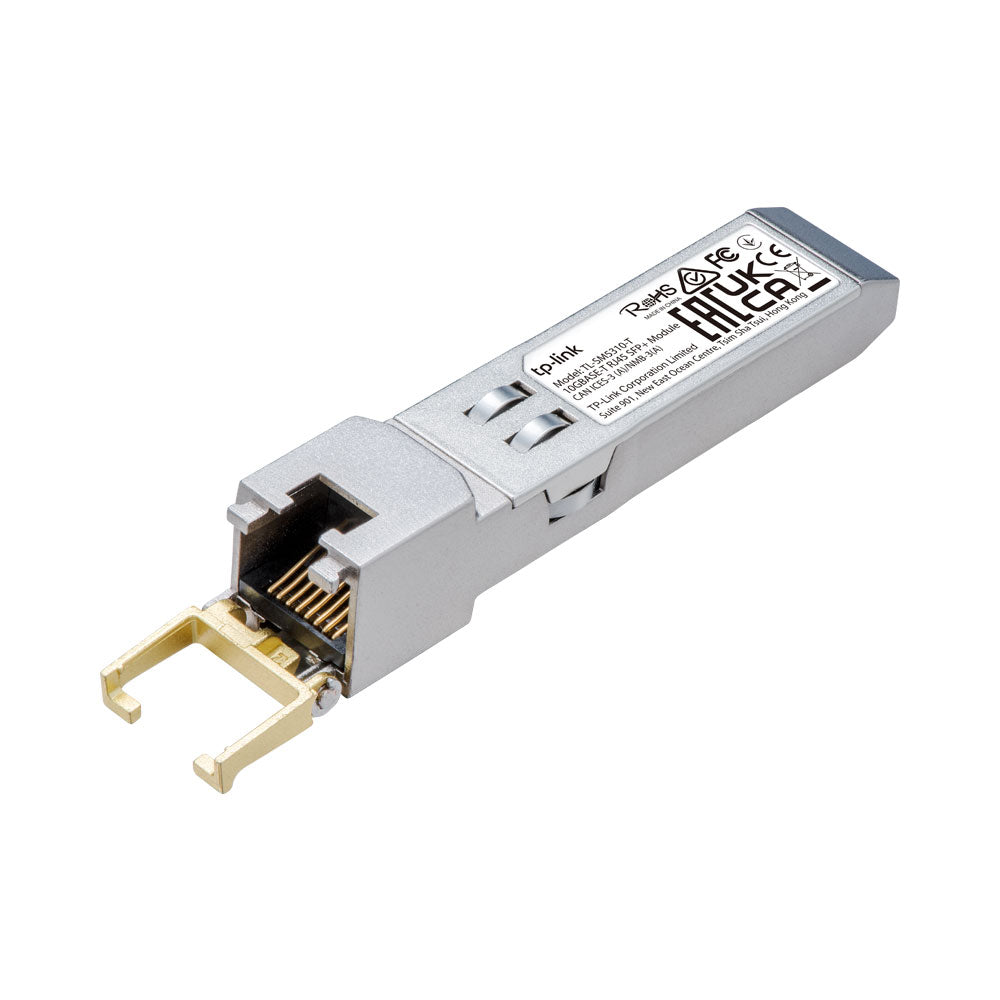

TP-LINK 10G BASE-T RJ45 SFP+ MODULE

Features

• Supports 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T and 100BASE-TX
• Transmit data up to 30m at 10Gbps (UTP CAT6a or above)
• Supports DDM (temperature and voltage)
• Hot-pluggable SFP+ footprint features
• Supports TX disable function
• Commercial product operating temperature range: 0~70°C
• Fully metallic enclosure for Low EMI

Specifications

• Hot Swappable: Yes
• MEDIA CONVERTER AND MODULE
• Dimensions (W × D × H): 67.4 × 13.75 × 13.8mm
• TRANSCEIVER
• Standards and Protocols: IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
• Power Supply: 3.3V
• Max. Cable Length: 100BASE-TX: UTP CAT5 or above (Max. 100m)
• 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP CAT5e or above (Max. 100m)
• 10GBASE-T: UTP CAT6a or above (Max. 30m)
• Data Rate: 10.3Gbps
• Port Type: 1× 10G RJ45 Port
• Safety and Emission: FCC, CE, RoHS
• Environment: Operating Temperature: 0~70°C
• Storage Temperature: -40~85°C

Shipping Dimensions

• Length: 12.25 cm
• Width: 8.15 cm
• Height: 3.85 cm
• Weight: 0.07 kg
