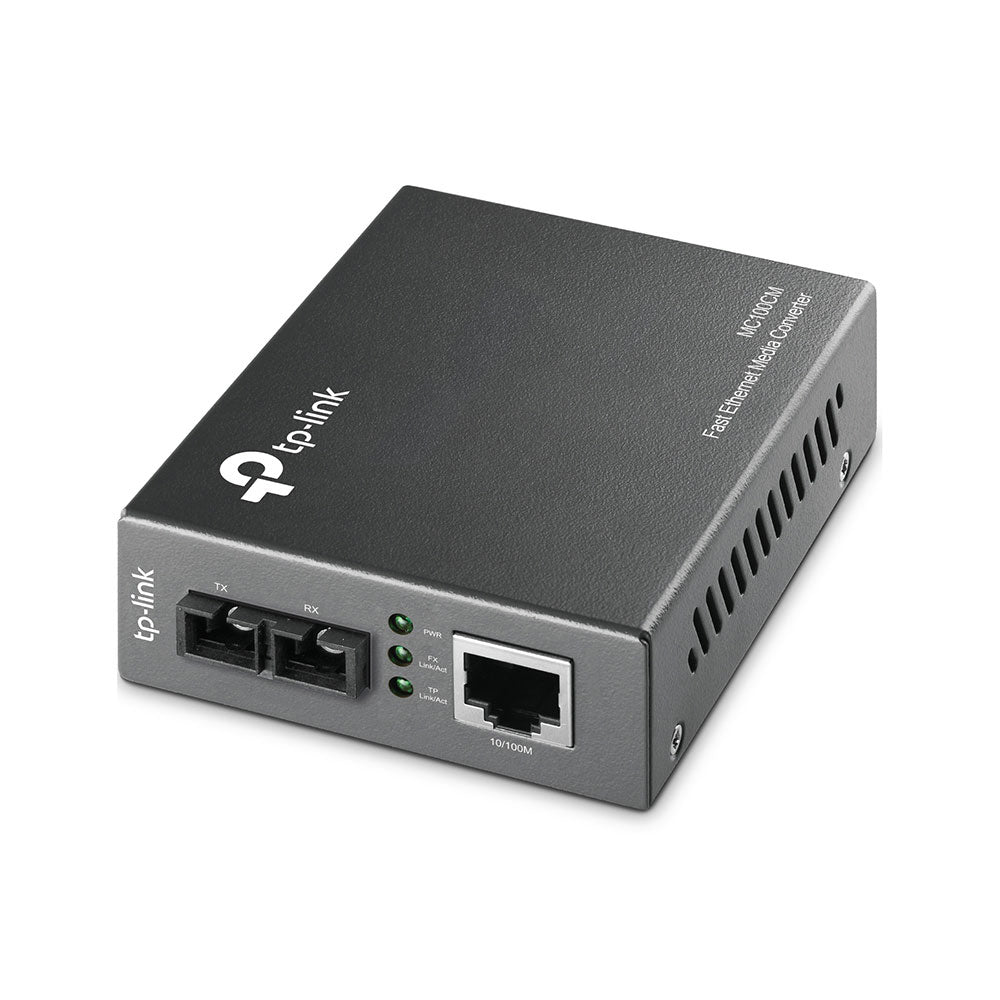

TP-LINK 100MBIT RJ45 TO MULTI-MODE SC FIBRE

Features

• Fast Ethernet Media Conversion - Converts 10/100Mbps Ethernet to multimode fibre for extended network connectivity
• Multimode Fibre Support - SC fibre interface supports transmission distances up to 2km
• Auto MDI/MDIX Support - Eliminates the need for crossover cables for easier deployment
• Auto-Negotiation - Automatically detects and adjusts network speed and duplex mode
• Plug-and-Play - Simple installation with no configuration required
• LED Status Indicators - Provides clear monitoring of power, link and activity status

Specifications

Standards And Protocols

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x

Basic Function

• Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode
• Full Duplex Flow Control (IEEE 802.3x)
• Half Duplex Flow Control (Back Pressure)
• Extends Fibre Distance up to 2km

Ports

• 1× 100M SC/PC Port
• 1× 10/100M RJ45 Port (Auto MDI/MDIX)

Wave Length

• 1310nm

Network Media 10Base-T

• UTP CAT3, 4, 5 Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)

Network Media 100Base-Tx

• UTP CAT5, 5e Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)

Network Media 100Base-Fx

• Multi-Mode Fibre

Led Indicators

• PWR
• Link/Act

Dimensions (W × D × H)

• 94.5 × 73 × 27mm

Power Supply

• External Power Supply

Max. Power Consumption

• 2.4W

Safety And Emission

• FCC
• CE
• RoHS

Shipping Dimensions

• Length: 20.4 cm
• Width: 16.5 cm
• Height: 6.5 cm
• Weight: 0.00 kg
