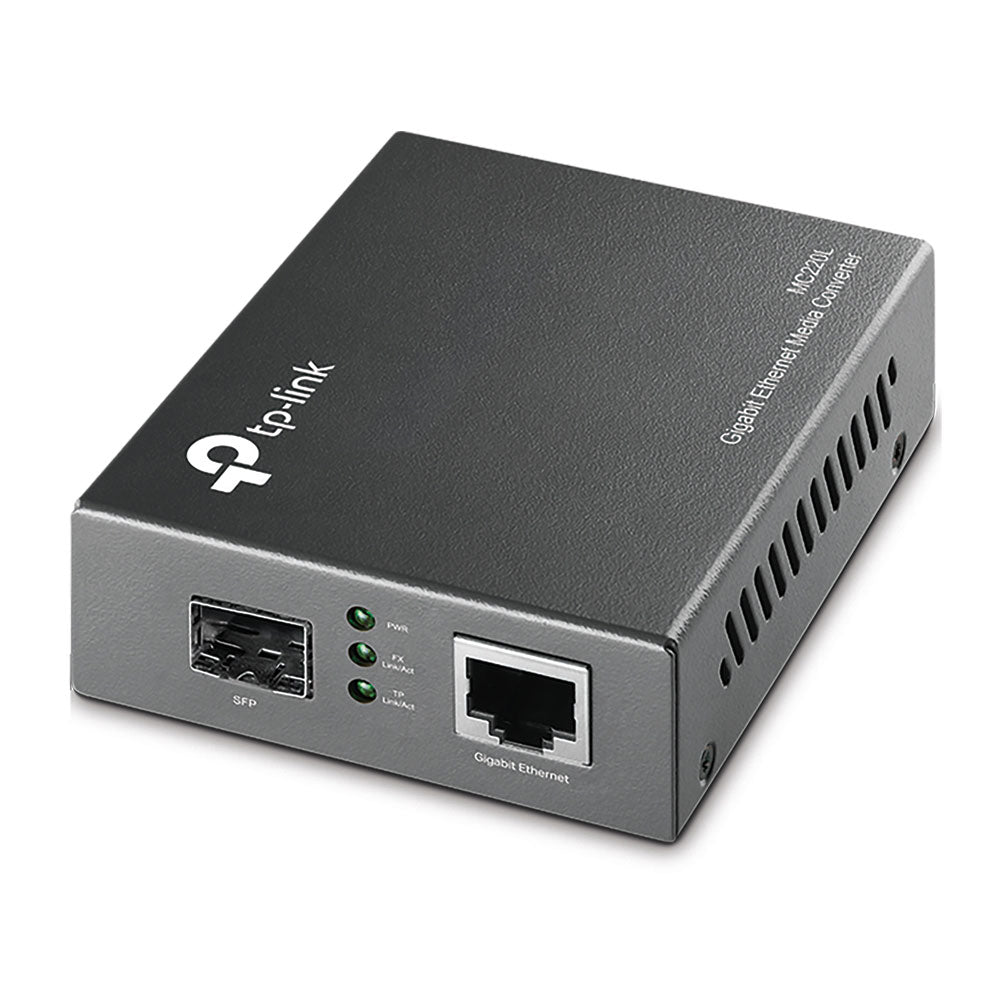

TP-LINK 1000MBPS RJ45 - GBIT CHASSIS ONLY

Features

• Gigabit Ethernet Connectivity - 10/100/1000Mbps Auto-Negotiation RJ45 port with Auto-MDI/MDIX support
• Auto-Negotiation Support - Automatically selects Half-Duplex or Full-Duplex transfer mode for optimal performance
• IEEE Standards Compliance - Fully compliant with IEEE 802.3ab and IEEE 802.3z standards
• Hot-Swappable SFP Port - FX port supports hot-swappable SFP modules for flexible fibre deployment
• Flexible Fibre Distance - Maximum transmission distance depends on the installed SFP module

Specifications

Standards And Protocols

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z

Basic Function

• Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode
• Maximum Transmission Distance Depends on the Inserted SFP Module

Ports

• 1× 1000M SFP Port
• 1× 10/100/1000M RJ45 Port (Auto MDI/MDIX)

Wave Length

• Depends on the Used SFP Module

Network Media 1000Base-X

• Multi-mode / Single-mode SFP Module

Network Media 1000Base-T

• UTP CAT5, 5e Cable (Max. 100m)
• EIA/TIA-568 100Ω STP (Max. 100m)

Led Indicators

• PWR
• Link/Act

Dimensions (W × D × H)

• 94.5 × 73 × 27mm

Power Supply

• External Power Adapter

Max. Power Consumption

• 1.7W

Safety And Emission

• FCC
• CE
• RoHS

Shipping Dimensions

• Length: 20.4 cm
• Width: 16.5 cm
• Height: 6.5 cm
• Weight: 0.47 kg
