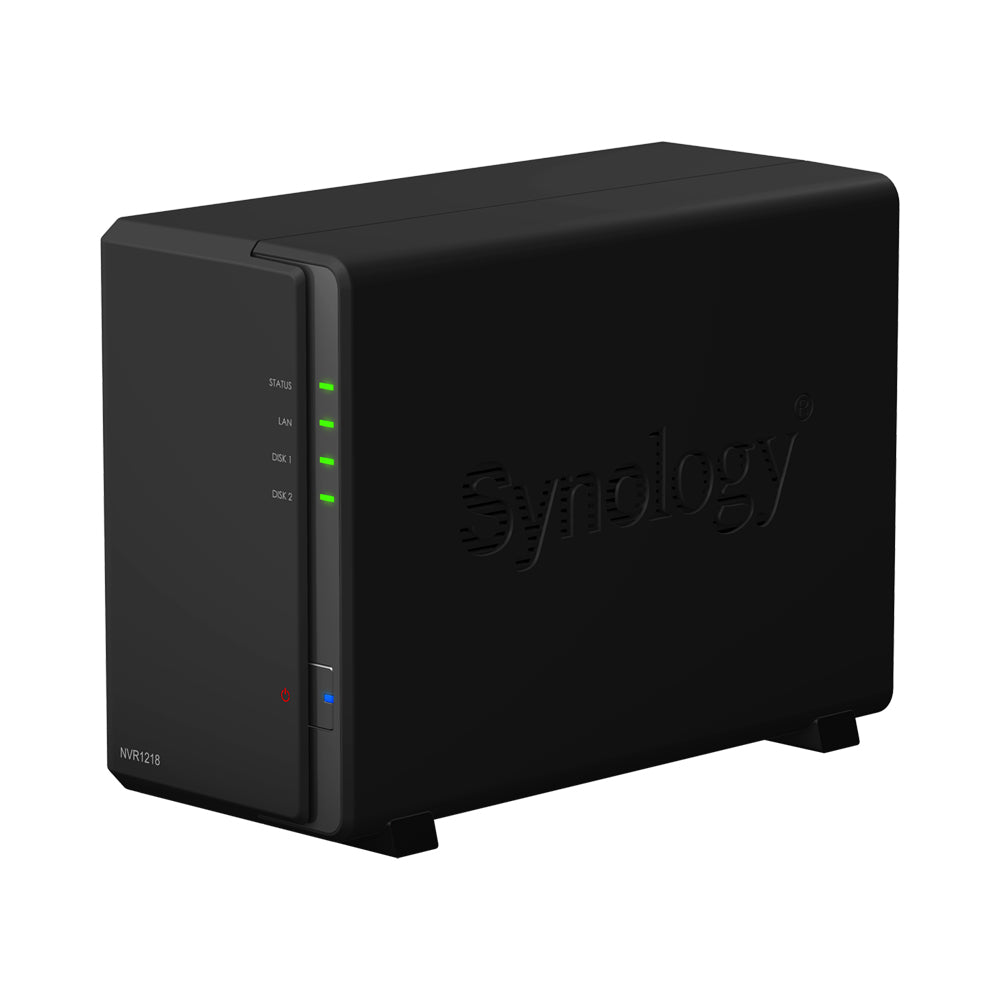

SYNOLOGY NVR1218 NVR, 1GB, DC, HDMI OUT - DISKLESS

Features

• Standalone Surveillance Solution: Built-in 1080p HDMI output for direct monitor connection
• PC-Free Deployment: Easy installation without requiring a computer or internet connection
• POS System Integration: Combines transaction records with surveillance footage for enhanced audit tracking
• 4× Free Camera Licenses Included: Scalable up to 12× IP cameras
• Mobile App Support: Monitor live feeds and recordings remotely via Synology mobile app
• Energy-Efficient Operation: Power-saving NVR runs below 15W
• Expandable Storage: Supports up to 7× HDDs with optional DX517 expansion unit

Specifications

Hardware

• Configuration: Supports up to 12× Cameras (4× Camera Licenses Pre-Installed)
• CPU: Embedded NVR SoC Dual-Core 1.0GHz
• Memory: DDR3 1GB
• Compatible Drive Type: 2× 3.5" SATA (Hard Drives Not Included)

External Ports

• 1× USB3.0, 2× USB2.0, 1× eSATA, 1× HDMI, 2× 3.5mm Audio Jack (Input/Output), 1× COM (For POS System Connection)

Display and Network

• Supported Video Output Resolution: 1920×1080 (1080p) @60Hz
• LAN: 1× Gigabit (RJ45)
• Supported USB Devices: USB Storage, Keyboard, Mouse, Joystick, UPS

Physical

• Dimensions (H × W × D): 165 × 100 × 225.5mm
• Weight: 0.9kg

Power and Environment

• AC Input Power Voltage: 100~240VAC
• Power Frequency: 50~60Hz, Single Phase
• Power Consumption: 13.64W
• Operating Temperature: Adapter: 0~40°C, Chassis: 5~45°C
• Storage Temperature: -20~60°C
• Relative Humidity: 5~95% RH
• Agency Certifications: FCC Class B, CE Class B, BSMI Class B

General Specification

• File System: Internal ext4, External ext4, ext3, FAT, NTFS, HFS+ (Read Only)

Supported RAID Type

• Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5 (with DX517), RAID 6 (with DX517)

Storage Management

• Maximum Single Volume Size: 16TB
• Maximum Internal Volume: 256×
• Maximum Shared Folder: 256×

Surveillance Station

• Maximum IP Camera: 12× Channels (360fps @720p)

Supported Video Codecs

• MJPEG, MPEG-4, MxPEG, H.264, H.265 (MxPEG and H.265 Do Not Support Local Display)

Recording Modes

• Manual, Continuous, Motion Detection, I/O Alarm, Action Rule, Customised

Playback

• Timeline Playback, Frame-by-Frame, Digital Zoom, Embedded Watermark for Evidence Integrity

Camera Support

• ONVIF 2.6 (Profile-S Certified, Profile-G for Edge Recording)
• PTZ Support
• Adjustable Bit-Rate (Constant and Variable)

Shipping Dimensions

• Length: 27 cm
• Width: 22 cm
• Height: 15 cm
• Weight: 1.20 kg
