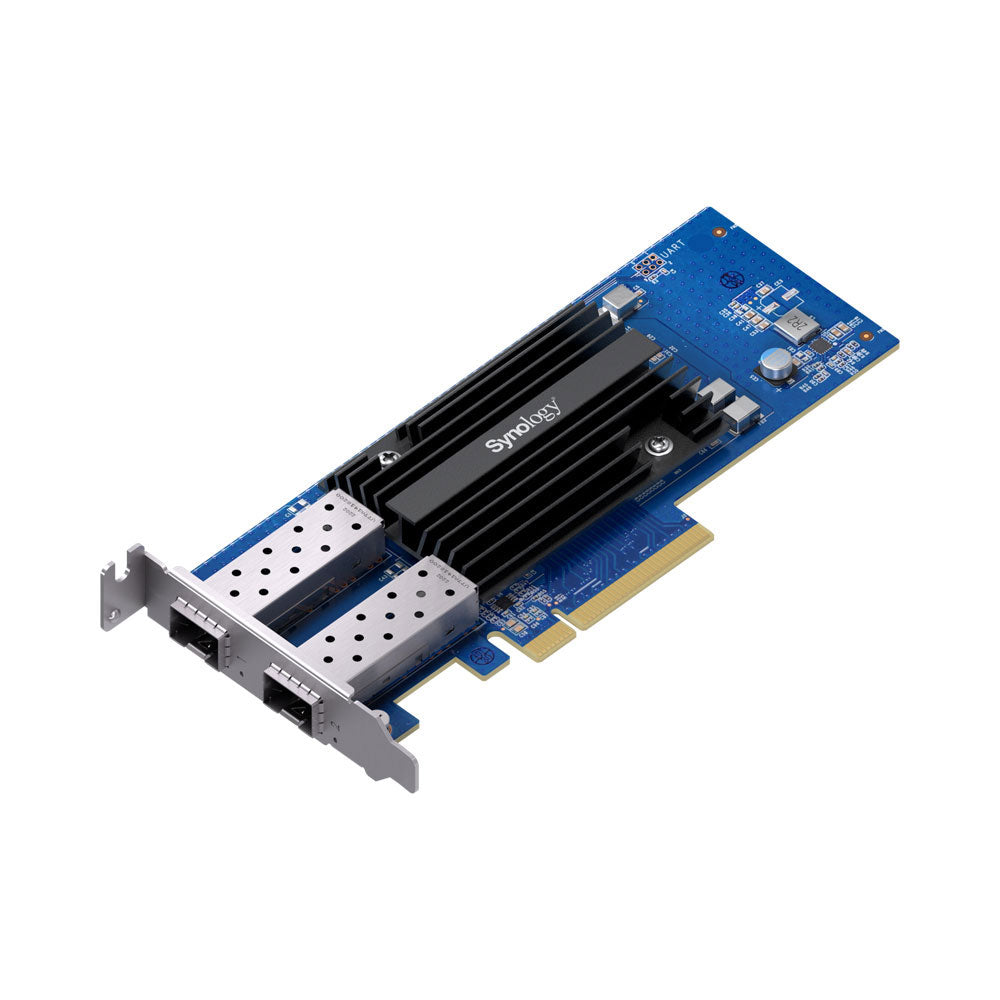

SYNOLOGY INTERFACE CARD 10GX2 SFP+

Features

• High Bandwidth - Two 10GbE ports support high-performance storage applications
• Flexible SFP+ Options - Supports SR and LR transceivers and DAC options
• Link Aggregation Support - Enables higher simultaneous throughput, port failover and load balancing
• Built for Synology - Purpose-built for use with Synology systems
• Warranty - Protected for longer with Synology's 5-year limited warranty

Applied Models

• FS series: FS6400, FS3600, FS3410, FS3400, FS2500
• HD series: HD6500
• SA series: SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D
• UC series: UC3400, UC3200
• 23 series: RS2423RP+, RS2423+, DS1823xs+
• 22 series: RS822RP+, RS822+, DS3622xs+, DS2422+
• 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
• 20 series: RS820RP+, RS820+
• 19 series: RS1619xs+, DS2419+II, DS2419+, DS1819+
• 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+
• 17 series: RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs
• Note: DSM Version Requirement: 7.1.1-42962 Update 5 or Later Version

Specifications

General

• Host Bus Interface: PCIe 3.0 x8
• Bracket Height: Low Profile and Full Height
• Dimensions (H × W × D): 69 × 168 × 17.3mm
• Operating Temperature: 0~40°C
• Storage Temperature: -20~60°C
• Relative Humidity: 5~95% RH

Network

• IEEE Specification Compliance: IEEE 802.3ad Link Aggregation, IEEE 802.3ae 10Gbps Ethernet

Data Transfer Rates

• 10Gbps

Supported Features

• TCP Segmentation Offload (TSO)
• Receive Side Scaling (RSS)
• Generic Segmentation Offload (GSO)
• 1.5~9KB Jumbo Frame
• TCP/UDP Checksum Offload
• Transmit Side Scaling (TSS)
• SR-IOV
• Large Receive Offload (LRO)

Warranty

• 5-Years (The Warranty Period Starts from the Purchase Date as Stated on Your Purchase Receipt)

Shipping Dimensions

• Length: 21.4 cm
• Width: 12.3 cm
• Height: 4 cm
• Weight: 0.50 kg
