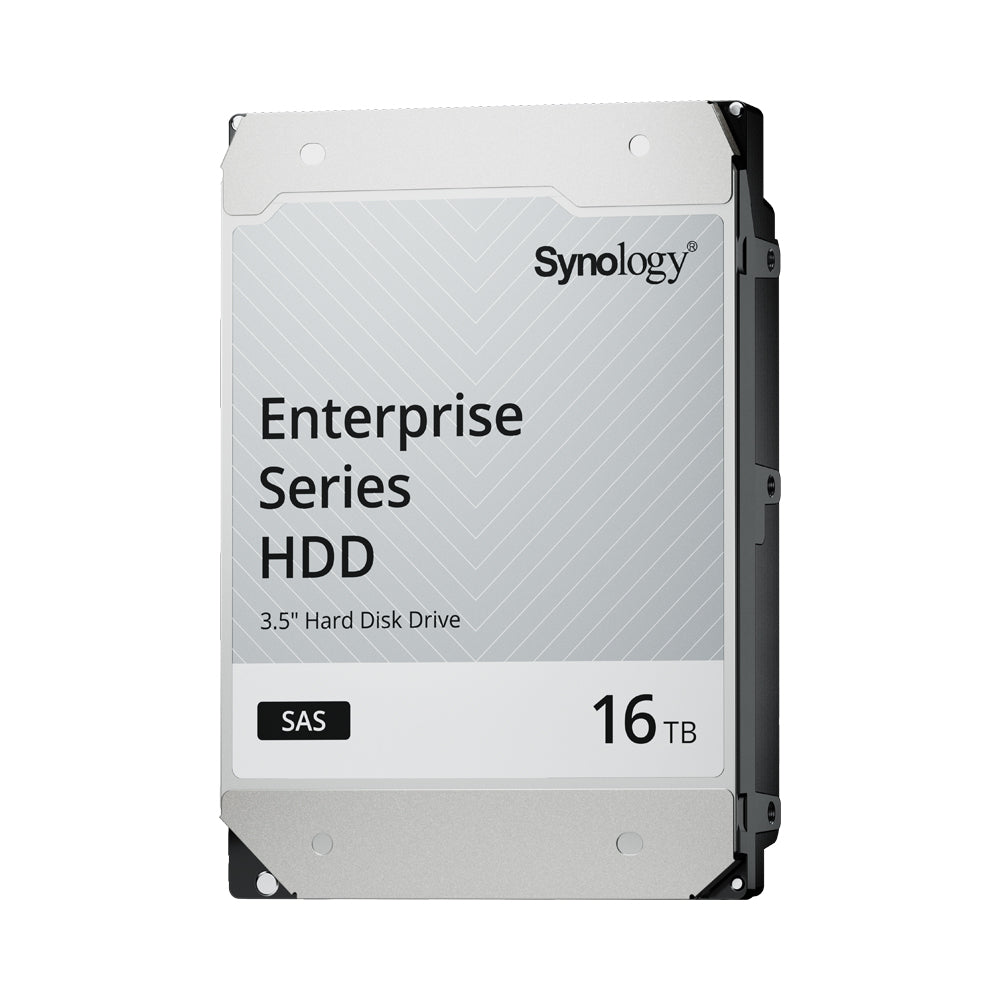

SYNOLOGY HAS5300 16TB 3.5" ENTERPRISE-GRADE SAS HARD DRIVES FOR SYNOLOGY SYSTEMS

Features

• Enterprise Reliability and Durability - For demanding 24/7 environments, rated for 2.5 million hour MTTF and up to 550TB per year workloads
• Designed for Synology Enterprise Systems - Over 200,000 hours of stringent validation tests ensure maximum dependability on Synology SA and UC series solutions
• Persistent Write Cache - Minimises the chance of data corruption in the event of sudden power loss
• Faster Array Rebuild - Up to 27% faster RAID array repair with firmware fine-tuned and optimised for performance
• Automatic Firmware Updates - Firmware updates through DSM simplify maintenance

Specifications

• Capacity: 16 TB
• Form Factor: 3.5″
• Interface: SAS 12 Gb/s
• Sector Size: 512e
• Rotational Speed: 7,200 rpm
• Interface Speed: 12.0 Gb/s, 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s
• Buffer Size: 512 MiB
• Maximum Sustained Data Transfer Speed (Typical): ~262 MiB/s
• Mean Time to Failure (MTTF): 2.5 million hours
• Workload Rating: 550 TB transferred per year
• Warranty: 5 years
• Supply Voltage: 12 V (± 10%) / 5 V (+10/-7%)
• Active Idle Power (Typical): ~4.46 W
• Random Read/Write Power (4 KB Q1 Typical): ~8.12 W
• Operating Temperature: 5 °C to 60 °C
• Non-Operating Temperature: -40 °C to 70 °C
• Operating Shock: 686 m/s² (70 G, 2 ms)
• Non-Operating Shock: 2,450 m/s² (250 G, 2 ms)
• Operating Vibration: 7.35 m/s² (0.75 G) @ 5-300 Hz, 2.45 m/s² (0.25 G) @ 300-500 Hz
• Non-Operating Vibration: 29.4 m/s² (3.0 G) @ 5-500 Hz
• Operating Altitude: -305 m to 3,048 m
• Non-Operating Altitude: -305 m to 12,192 m
• Relative Humidity (Operating): 5 % to 90 % R.H. (no condensation)
• Relative Humidity (Non-Operating): 5 % to 95 % R.H. (no condensation)
• Size (H × W × D): 26.1 × 101.85 × 147 mm
• Weight: ~720 g
• Certifications: CE, EAC, BSMI, RCM, KC, ICES, UKCA, TUV, UL, RoHS

Shipping Dimensions

• Length: 14.8 cm
• Width: 11.4 cm
• Height: 1.5 cm
• Weight: 0.73 kg
