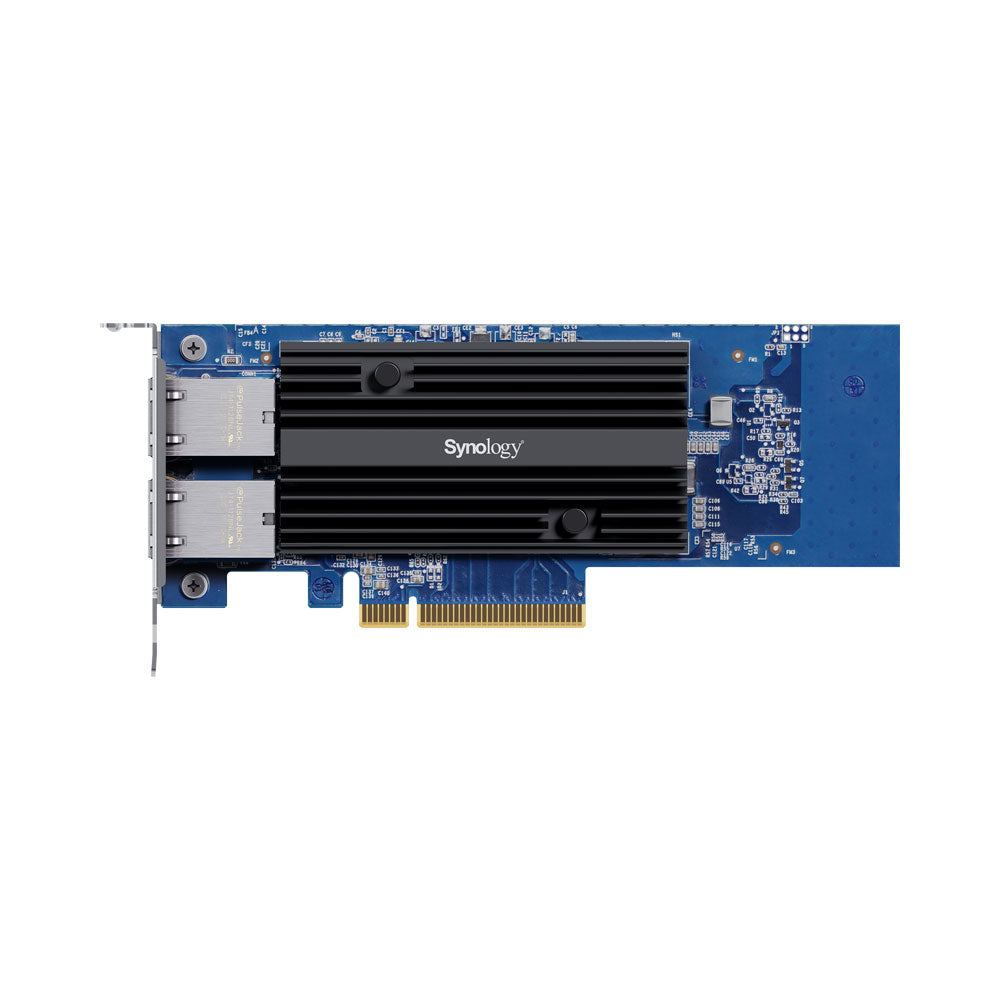

SYNOLOGY E10G30-T2 DUAL PORT 10GBE PCIE CARD

Features

• High Bandwidth - Two 10GbE ports support high-performance storage applications
• Backwards Compatible - Automatically negotiates between 10Gbps and 1Gbps
• Built for Synology - Validated for use with Synology servers

Applied Models

• FS series: FS6400, FS3600, FS3410, FS3400, FS3017, FS2500, FS2017, FS1018
• HD series: HD6500
• SA series: SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D
• UC series: UC3400, UC3200
• 23 series: RS2423RP+, RS2423+, DS1823xs+
• 22 series: RS822RP+, RS822+, DS3622xs+, DS2422+
• 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
• 20 series: RS820RP+, RS820+
• 19 series: RS1619xs+, RS1219+, DS2419+II, DS2419+, DS1819+
• 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+
• 17 series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xsII, DS3617xs, DS1817+, DS1517+
• 16 series: RS18016xs+
• 15 series: RC18015xs+, DS3615xs
• 14 series: RS3614xs+, RS3614RPxs, RS3614xs
• 13 series: RS10613xs+, RS3413xs+
• 12 series: RS3412RPxs, RS3412xs, DS3612xs
• 11 series: RS3411RPxs, RS3411xs, DS3611xs
• Note: DSM Version Requirement: 6.2.1-23824 or Later Version

Specifications

General

• Host Bus Interface: PCIe 3.0 x8
• Bracket Height: Low Profile and Full Height
• Size (H × W × D): 68.9 × 170.6 × 13.6mm
• Operating Temperature: 0~40°C
• Storage Temperature: -20~60°C
• Relative Humidity: 5~95% RH

Network

• IEEE Specification Compliance, IEEE 802.3x Flow Control, IEEE 802.3ad Link Aggregation, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3an 10Gbps Ethernet

Data Transfer Rates

• 10Gbps

Network Operation Mode

• Full Duplex

Supported Features

• 9KB Jumbo Frame
• TCP/UDP/IP Checksum Offloading
• TCP Segmentation Offload (TSO)

Warranty

• 5-Years (The Warranty Period Starts from the Purchase Date as Stated on Your Purchase Receipt)

Shipping Dimensions

• Length: 12.9 cm
• Width: 22.6 cm
• Height: 3.6 cm
• Weight: 0.21 kg
