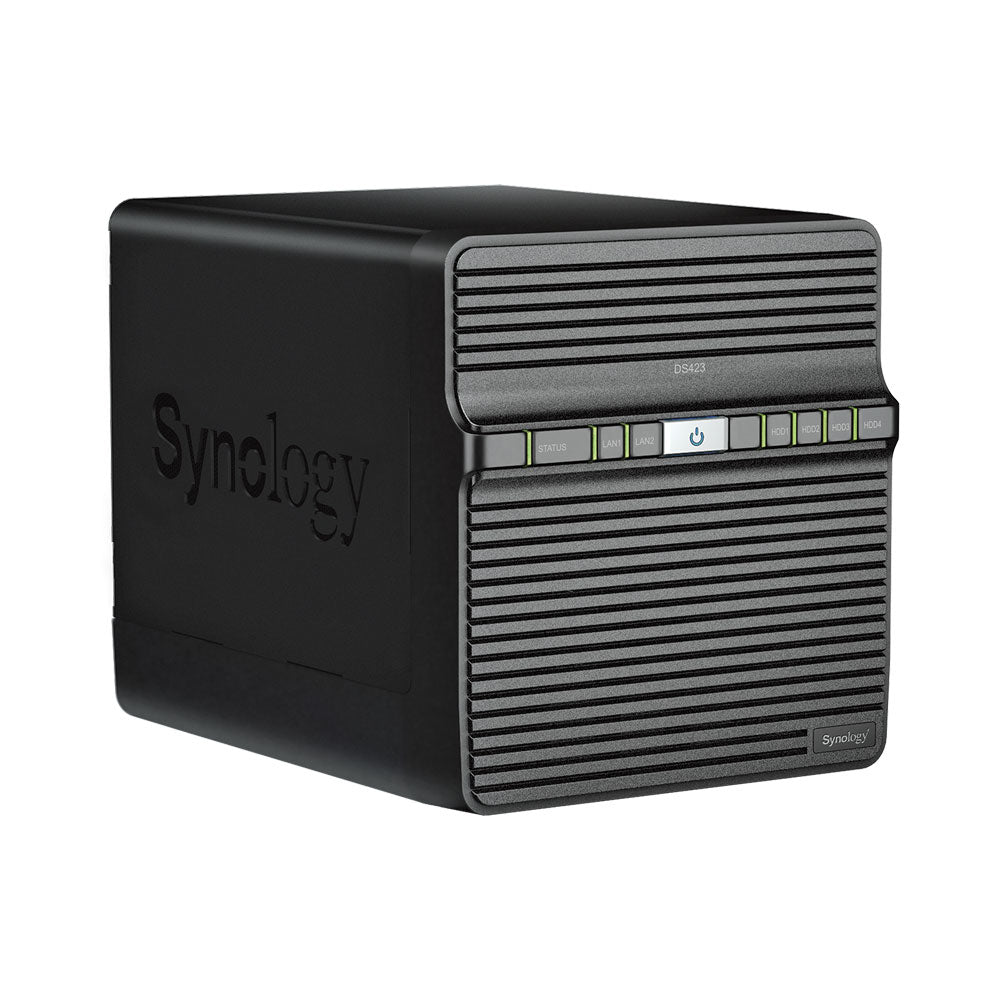

SYNOLOGY DS423 4-BAY, QC, 2GB - DISKLESS

Features

• Centralised Data Storage - Consolidate up to 72TB of data and enjoy 100% data ownership and multi-platform access from anywhere
• Secure Sharing and Syncing - Safely access and share files and media from anywhere and keep friends, partners or collaborators on the same page
• Simple Data Protection - Back up your media and documents to multiple destinations and leverage snapshots to protect against malware
• Versatile Surveillance - Protect your home or business with intuitive monitoring, archiving and analysis tools for up to 30× IP cameras

Specifications

Processor

• CPU Model: Realtek RTD1619B
• CPU Core: 4
• CPU Architecture: 64-bit
• CPU Frequency: 1.7GHz
• Hardware Encryption Engine: Yes

Memory

• System Memory: 2GB DDR4 non-ECC

Storage

• Drive Bays: 4×
• Drive Type: 3.5" SATA HDD, 2.5" SATA SSD
• Hot Swappable Drive: Yes

Supported RAID Type

• Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, Synology Hybrid RAID

External Ports

• RJ45 1GbE LAN Ports: 2×
• USB3.2 Gen1 Ports: 2×

Appearance

• Size (H × W × D): 166 × 199 × 223mm
• Weight: 2.18kg
• System Fans: 2× 92mm
• Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
• Brightness Adjustable Front LED Indicators: Yes

Others

• Noise Level: 22.9 dB(A)
• Wake on LAN / WAN: Yes
• Power Supply Unit / Adapter: 90W
• AC Input Power Voltage: 100~240V AC
• Power Frequency: 50/60Hz, Single Phase
• Power Consumption: 32.41W (Access), 8.31W (HDD Hibernation)

Temperature

• Operating Temperature: 0~40°C
• Storage Temperature: -20~60°C
• Relative Humidity: 5~95% RH

File System

• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT

Storage Management

• Maximum Single Volume Size: 108TB
• Maximum Internal Volume Number: 64×
• SSD Cache: No
• Btrfs File System: Yes

File Services

• Maximum Concurrent SMB Connections: 500×
• Maximum Local User Accounts: 2,048×
• Maximum Shared Folders: 512×

Surveillance Station

• Default Licenses: 2×
• Maximum IP Cameras and Total FPS (H.264): up to 30
• Maximum IP Cameras and Total FPS (H.265): up to 30

Warranty

• 2-Year Hardware Warranty (Extendable to 4-Years with Extended Warranty Plus)

Shipping Dimensions

• Length: 24.7 cm
• Width: 28.7 cm
• Height: 23.5 cm
• Weight: 3.78 kg
