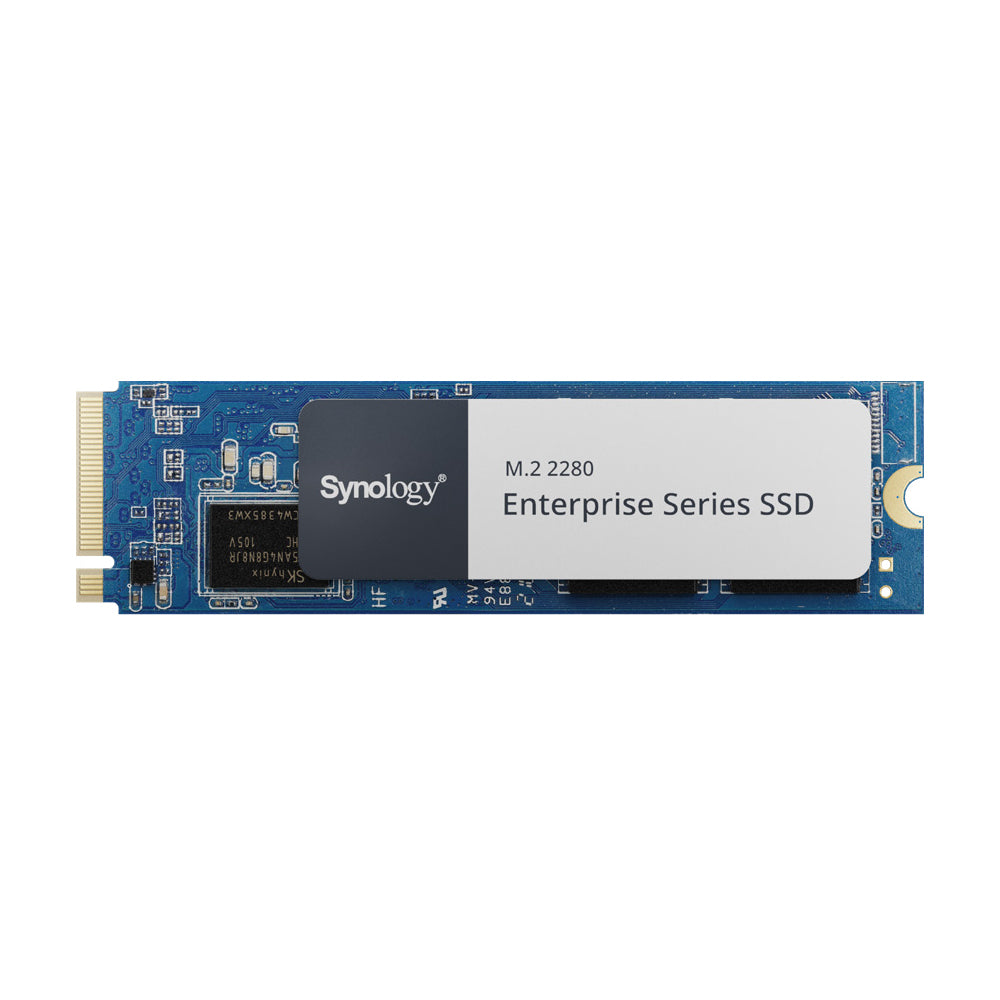

SYNOLOGY 400G M.2 2280NVME SSD

Features

• Enterprise M.2 NVMe SSD - Designed for Synology high-performance caching environments
• High IOPS Performance - up to 400,000 read and 70,000 write (4K random)
• Fast Sequential Speeds - up to 3,000MB/s read and 650MB/s write
• Enterprise-Grade Endurance - >700 TBW for intensive workloads
• PCIe 3.0 x4 Interface - Optimised for low latency and high throughput
• End-to-End Data Protection - Ensures data integrity across transfers
• Power Loss Protection - Safeguards data during unexpected shutdowns
• Lifetime Analytics - Monitor drive health and usage via Synology DSM
• Seamless Integration - Fully validated for Synology systems with automatic firmware updates
• 24/7 Reliability - Built for continuous operation in enterprise environments

Specifications

• Capacity: 400GB
• Form Factor: M.2 2280
• Interface: NVMe PCIe 3.0 x4
• Performance:
• Sequential Read: up to 3,000MB/s
• Sequential Write: up to 650MB/s
• Random Read (4K): up to 400,000 IOPS
• Random Write (4K): up to 70,000 IOPS
• Endurance:

- Tbw: >700Tb

• MTBF: 3,000,000 hours
• UBER: <1 sector per 10¹⁷ bits Read
• Power Loss Protection: Yes
• Warranty: 5 Years
• Power Consumption:
• Supply Voltage: 3.3V (±5%)
• Active Read: 5W
• Active Write: 5.5W
• Idle: 2.5W
• Temperature:
• Operating: 0~85°C
• Storage: -40~85°C
• Dimensions: 3.5 × 22 × 80mm
• Certifications: FCC, CE, EAC, BSMI, VCCI, KC, RoHS, UKCA, UL
