Description

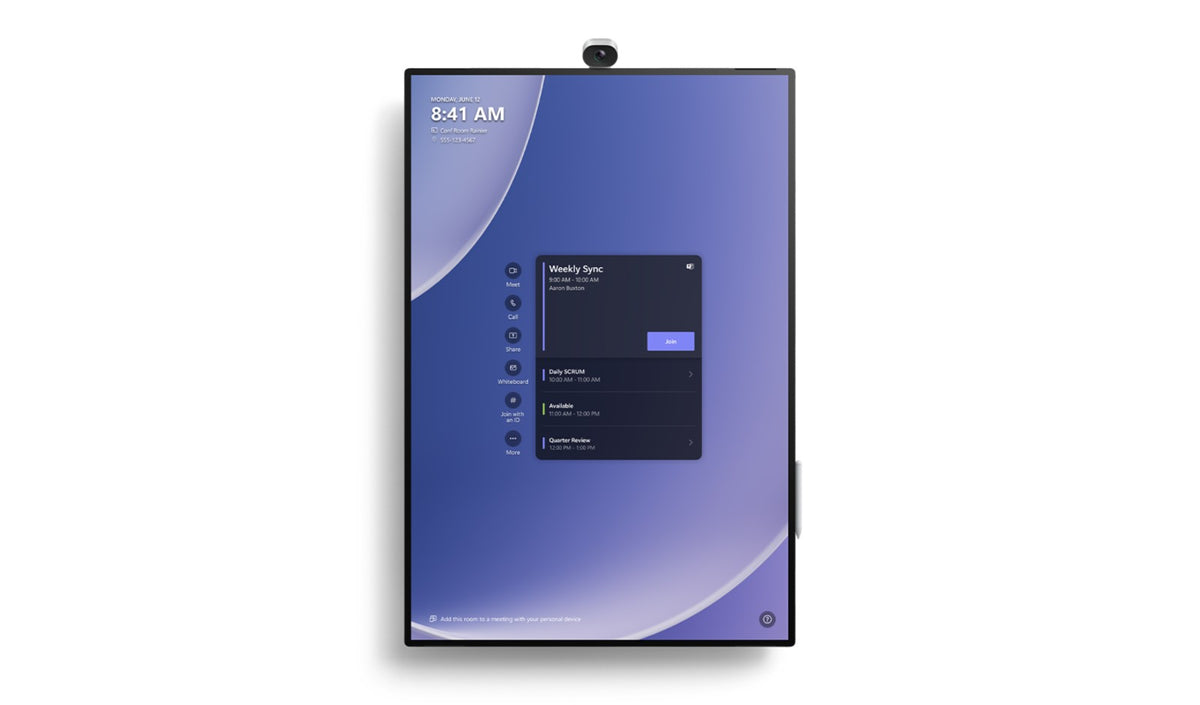

Bring hybrid teams together with a more inclusive way to meet and co-create. Empower teamwork anywhere with Surface Hub 3 for Business, a collaborative canvas and meetings device certified for Microsoft Teams. Flexible, modular accessories enable Surface Hub 3 for Business to adapt as your space and technology needs change. Unlock unique collaboration scenarios with Portrait on the Surface Hub 3 50”. With smart rotation, seamlessly adjust the device to the orientation that’s best for your meeting or collaboration needs in the moment.
This configuration
- Manufacturer part number: VY7-00010
- Colour: Platinum
Specifications
Specifications apply to the model range; see this configuration above.
Processor
- Intel i5
Graphics
- iGPU
Memory and storage
- Memory: 32 GB
- Storage: 512 GB
- Resolution
- Surface Hub 3 50": 3840 x 2560
- Surface Hub 3 85": 3840 x 2160
Display
- Surface Hub 3 50"
- PixelSense™ Display
- 3:2 aspect ratio
- 8-bit color
- 15.5mm border
- Anti-glare, IPS LCD
- In-cell Touch with 10 simultaneous touch points and two pens
- Surface Hub 3 85"
- PixelSense™ Display
- 16:9 aspect ratio
- 8-bit color
- 30.5mm border
- Anti-glare, IPS LCD
- In-cell Touch with 20 simultaneous touch points and two pens
Size and Weight
- Surface Hub 3 50"
- Height: 741 mm (29.2 inch)
- Width: 1097 mm (43.2 inch)
- Depth: 76 mm (3.0 inch)
- Weight: 28 kg (61.6 lbs)
- Surface Hub 3 85"
- Height: 1130 mm (44.5 inch)
- Width: 1959 mm (77.1 inch)
- Depth: 85.6 mm (3.4 inch)
- Weight: 84 kg (185 lbs)
Security
- Trusted Platform Module 2.0
Cameras
- Surface Hub Smart Camera, 4K, custom USB-Cconnection, 136-degree HFOV
Audio
- Surface Hub 3 50"
- 100Hz-12KHz range front-facing 3-way stereo speakers, including (6) front-facing mid-range, (3) front-facing tweeter and (1) rear bass drivers
- 2x full band 8-element MEMS microphone arrays
- Smart AV optimizes audio to Portrait or Landscape
- Surface Hub 3 85"
- 100Hz-12KHz range 3-way stereo speakers, including (4) front-facing mid-range, (2) front-facing tweeter and (1) rear bass drivers
- Full band 8-element MEMS microphone array
Ports
- Surface Hub 3 50"
- (4) USB-C including two camera ports (on display)
- (1) USB-A™ (on display)
- RJ45 Gigabit Ethernet
- Mini-DisplayPort™ Video Output
- HDMI Video Input
- USB-C with Alt-Mode DisplayPort Input
- Surface Hub 3 85"
- (3) USB-C (on display)
- (1) USB-A™ (on display)
- RJ45 Gigabit Ethernet
- Mini-DisplayPort™ Video Output
- HDMI Video Input
- USB-C with Alt-Mode DisplayPort Input
- Available when running Windows 10/11 Pro/Enterprise.
- Available in bypass only. Visit
Network and connectivity
- Surface Hub 3 50"
- Wi-Fi 5: IEEE 802.11ac (a/b/g/n/ac compatible)
- BluetoothWireless 5.1 technology
- Gigabit Ethernet
- Microsoft Teams Cast
- Surface Hub 3 85"
- Wi-Fi 5: IEEE 802.11ac (a/b/g/n/ac compatible)
- Bluetooth Wireless 5.1 technology
- Gigabit Ethernet
- Microsoft Teams Cast
- For additional information on casting content to Microsoft Teams Rooms, visit
- Microsoft Support
Pen & accessories compatibility
- Active, dual-pen inking support
- Surface Hub Pen (active)
- Surface Slim Pen, Surface Slim Pen for Business (2nd Edition)
- Compatible with Microsoft Teams Rooms certified peripherals
Software
- Windows 11 IoT Enterprise with the Microsoft Teams Rooms on Windows experience
- Configurable to Windows 11 Pro/Enterprise
- Software license and image required. Sold separately. For additional information, visit
- Surface Hub | Migrate to Windows 10/11 Pro or Enterprise
Exterior
- Casing: Precision machined aluminum with mineral-composite resin
- Color: Platinum
- Physical Buttons: Power, Volume, Source
Sensors
- Surface Hub 3 50"
- Doppler occupancy sensor
- Accelerometer
- Gyroscope
- Surface Hub 3 85"
- (2) Doppler occupancy sensor
What's in the box
- Surface Hub 3 50"
- (1) Surface Hub 3 50”
- (1) Surface Hub Smart Camera
- (1) Surface Hub Pen
- 3m AC Power Cable
- Quick Start Guide
- Surface Hub 3 85"
- (1) Surface Hub 3 85”
- (1) Surface Hub Smart Camera
- (2) Surface Hub Pen
- 4m AC Power Cable
- Quick Start Guide
Warranty
- 1-year limited hardware warranty
- Surface Hub Smart Camera
Dimensions
- 43mm high (54.6mm high with foot) x 67mm wide x 66mm deep (42mm wide foot)
- Memory
- 1 GB DRAM, 8 GB eMMC (Not user accessible)
Processor
- Intel Myriad X 2085 (Image Signal Processor and NN SOC with 1 TFLOPS of DNN acceleration and 18 cores)
Security
- Camera software is updatable through Windows Update via Hub
- Software updates protected by signature security process
Software
- Intelligent functionality:
- IntelliFrame support on Microsoft Teams Rooms
- Automatic framing (automatically frames people in field of view)
- Image optimization (auto exposure, auto white balance, anti-flicker)
- Tilt angle adapting de-warp/un-distortion for natural faces across the field of view
- Upgradability:
- Internal Camera firmware can be updated with new functionality or bug fixes through Windows Update
- Software license required. Sold separately.
- Available when running Windows 10 Team Edition or Windows 10/11 Pro/Enterprise.
Sensors
- Sensor Resolution: 12MP
Connections
- Mounting: Top of Surface Hub 2S and Surface Hub 3 for Business
- Mechanical & Electrical Interface to Hub: USB-C break-away magnetic attach to top of bezel
- Interface to Surface Hub 2S, Surface Hub 3 for Business: Customized USB-C
- Reversible USB-C connection: Not supported.
- Camera and Video Features
- Fixed focus lens with 11 glass elements
- 1 RGB Camera Module
- Working Distances: 1.0 – 7.4m
- HFOV: >136 degrees
- Tilt range: +20deg and -20deg from horizontal. Surface Hub Smart Cameraadapts its de-warp mesh to un-distort the image according to the camera tilt angle, so the image always looks natural.
- Video Format: 16:9 (NV12 at 360p, 720p, 1080p, 1440p)
- Privacy cover magnetically attaches to front of camera for privacy, and magnetically attaches to back of camera for convenient storage
Exterior
- Casing: Anodized Aluminum
- Color: Platinum
- Physical buttons: None
- One white LED indicator for camera status (indicator is only visible when ‘On’)
Warranty
- 1-year limited hardware warranty (All Countries)
What’s in the box
- Microsoft Surface Hub Smart Camerawith privacy cover
- Quick Start Guide
- Safety and warranty documents
Weight
- 180g with privacy cover
- Surface Hub Pen
Dimensions
- 151 mm × 16.3 mm × 14.3 mm (5.94" × 0.64" × 0.56")
- Weight
- 41 g (0.09 lb)
Buttons
- Barrel button and tail eraser
- Color
- Grey
- Connector type
- Bluetooth 4.0
Compatibility
- Surface Hub 3 for Business
- Surface Hub 2S
- Also compatible with select Surface devices. Visit
- Microsoft Support
- Surface Storage
- Service Guide
/
