| VIDEO INPUT |
| IP Camera Input |
32 Channel |
| Incoming Bandwidth |
320Mbps |
| Outgoing Bandwidth |
320Mbps |
| VIDEO OUTPUT |
| HDMI Output |
HDMI 1: 1920 × 1080,1440 × 900, 1280 × 1024 |
| HDMI 2: 3840 × 2160,1920 × 1080, 1440 × 900, 1280 × 1024 |
| VGA Output |
1920 × 1080, 1440 × 900, 1280 × 1024 |
| Different Source Output |
Support |
| Decoding Capacity |
1ch 12MP, 4ch 8MP, 8ch 4MP, 16ch 1080P, 32ch 720P |
| Dual Stream |
Support |
| Multi-Screen Display |
1st Screen: 1/4/8/9/16/32/36 |
| 2nd Screen: 1/4/8/9/16 |
| RECORDING |
| Resolution |
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc. |
| Recording Mode |
Manual, Scheduled (Regular, Continuous), Event |
| Trigger Events |
Motion Detection, Video Loss, Alarm in, IVS |
| PLAYBACK AND BACKUP |
| Sync Playback |
16/9/4/1 |
| Search Mode |
Time/Date, Alarm, Picture grid, Event |
| Backup Mode |
USB Device, Network, eSATA |
| ALARM |
| General Alarm |
Motion Detection, Video Loss, IVS, Alarm in, Alarm out |
| Abnormal Alarm |
Disk Alarm, IP Address Conflict, Network Disconnect |
| NETWORK |
| Network Function |
HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE |
| Remote Users |
8× Users |
| Smart Phone |
iPhone, iPad, Android |
| Interoperability |
ONVIF, SDK, CGI |
| STORAGE |
| HDD |
8× SATA Ports, up to 12TB for each HDD |
| eSATA |
1× eSATA Port |
| Cloud Storage |
Support |
| DISK ARRAY |
| Array Type |
RAID 5, RAID 6, RAID 10 |

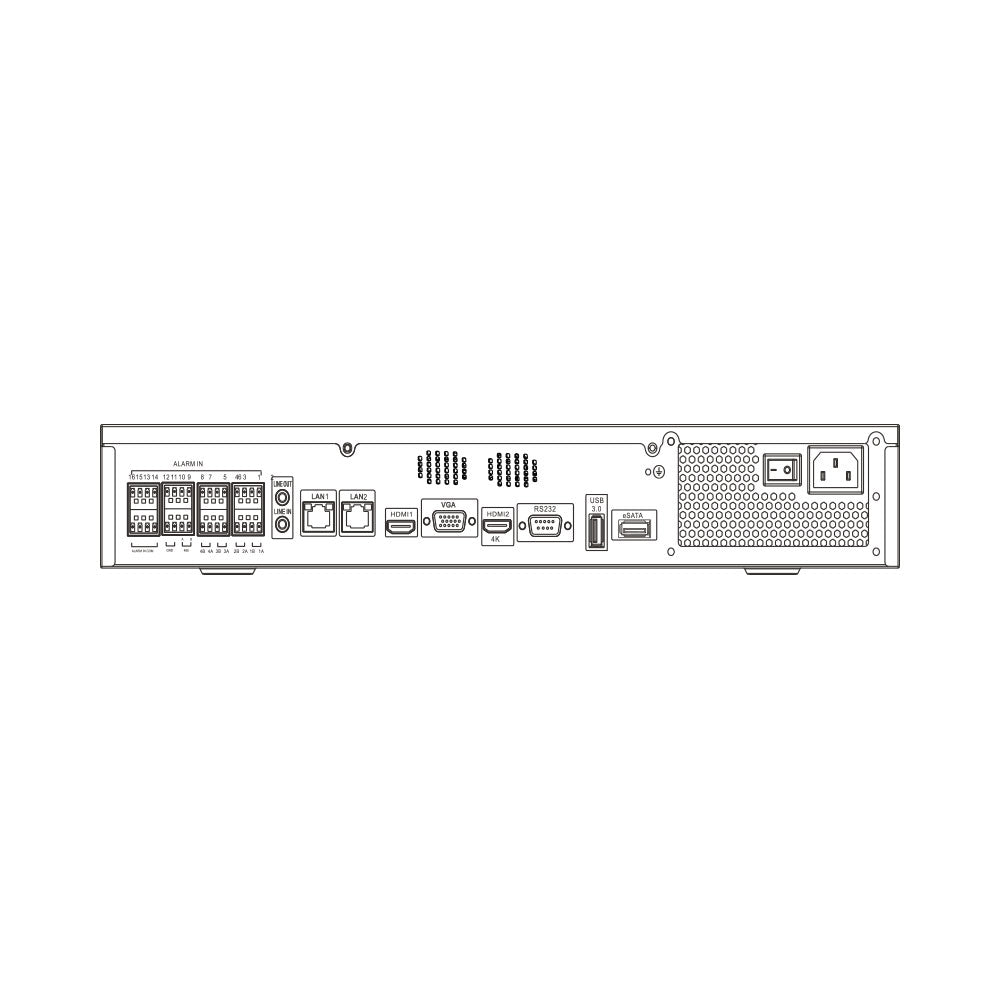

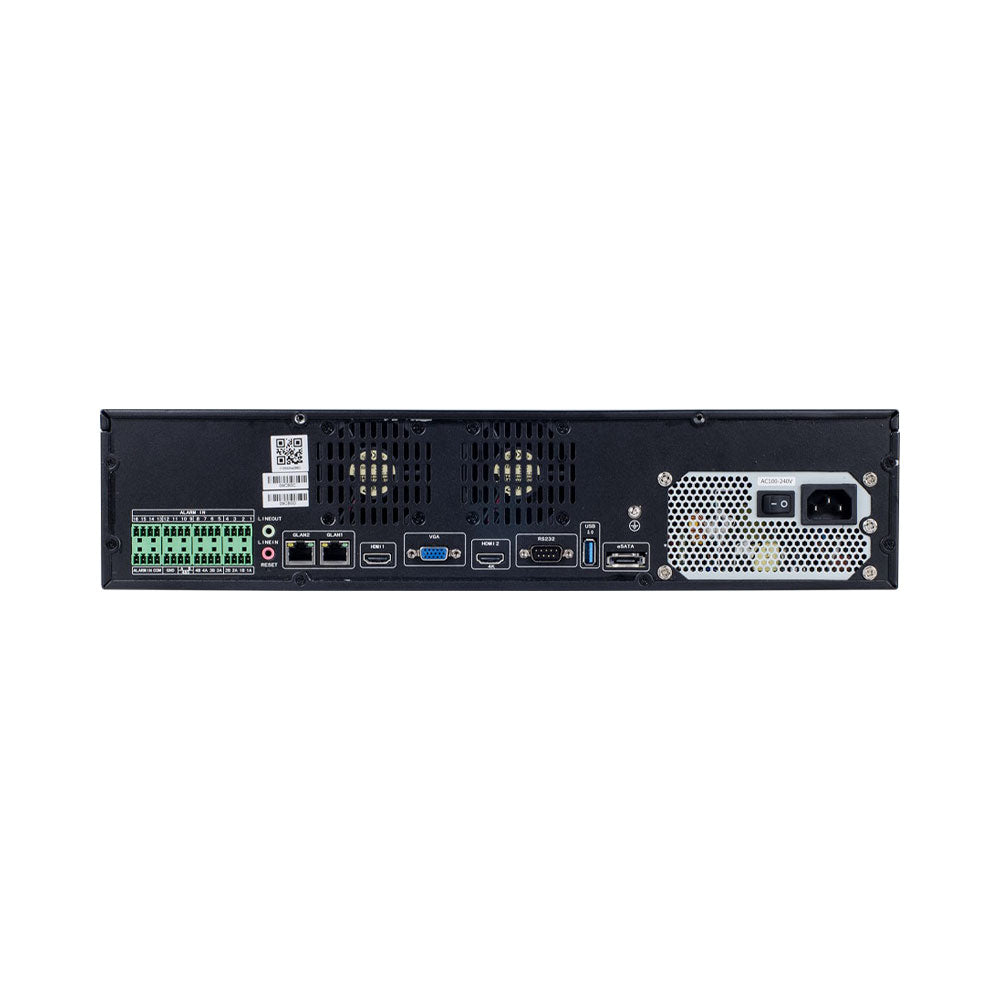

| INTERFACE |
| Interface |
2× RJ45, 10/100/1000 Mbps Self-adaptive Ethernet port |
| HDMI |
2× |
| VGA |
1× |
| Audio I/O |
1/1 |
| Alarm I/O |
16/4 |
| USB |
3× Ports (2× USB2.0, 1× USB3.0) |
| RS485 |
1× Port |
| RS232 |
1× Port |
| GENERAL |
| Power Supply |
AC100 ~ 240V |
| Power Consumption |
< 15W (without HDD) |
| Operating Conditions |
-10°C~50°C |
| Storage Conditions |
Less than 90% RH |
| Certifications |
CE/FCC |

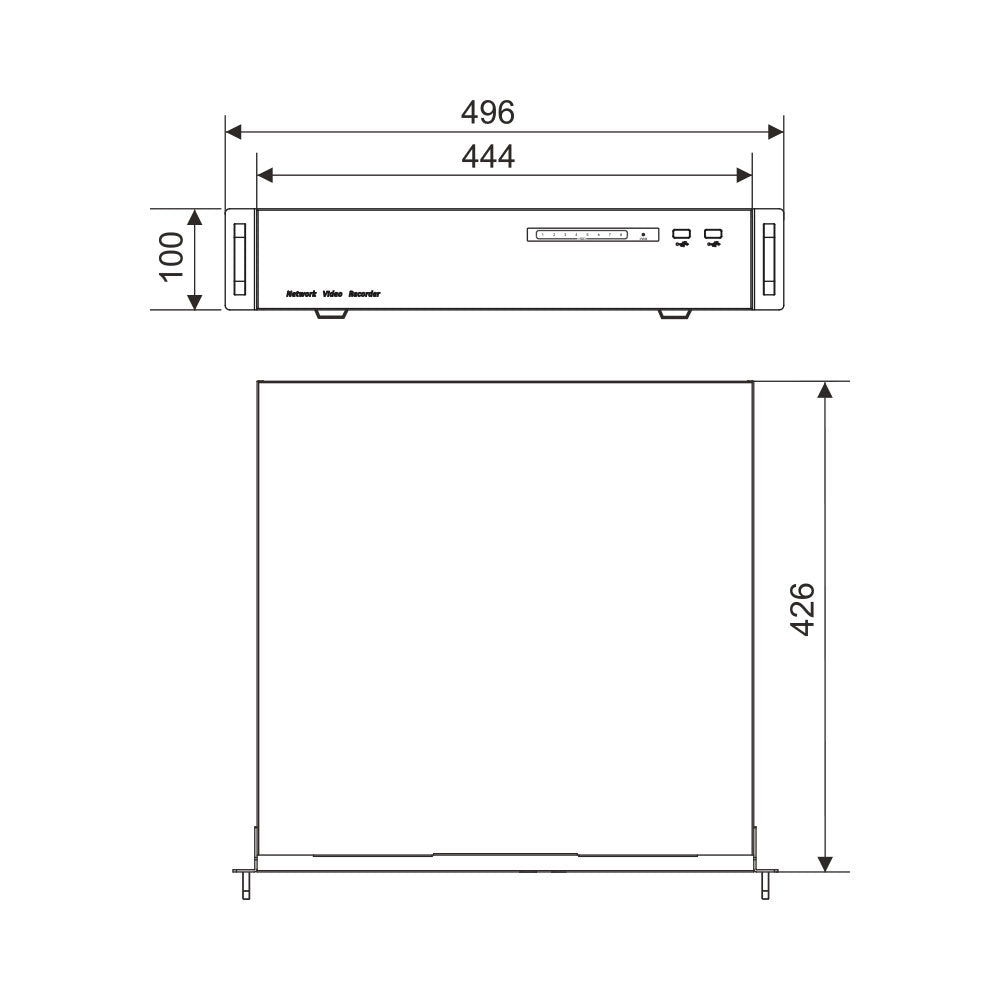

| Dimensions |
440 × 433.5 × 93mm |
| Net Weight |
7.2kg without HDD |
