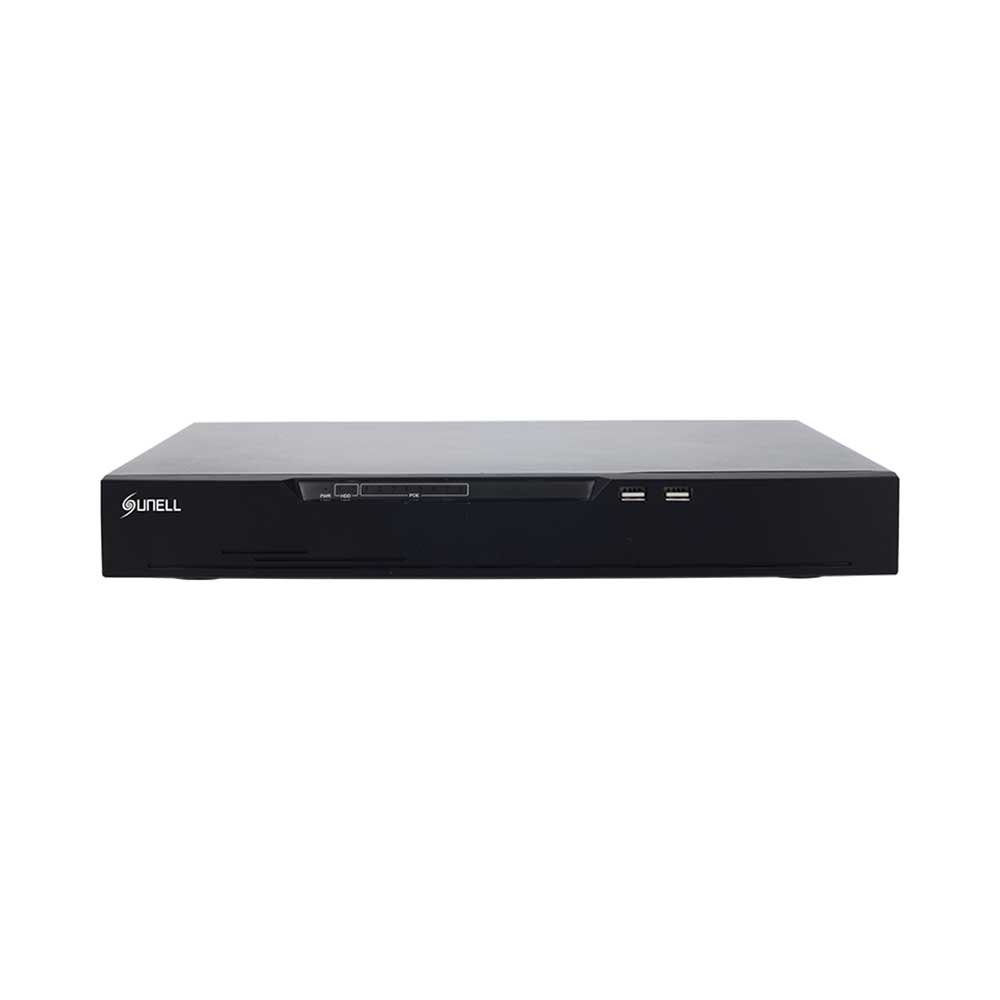

SUNELL NVR 8CH, 2 BAY, 1X LAN, 8X POE, H.265

Features

• Up to 8ch IP cameras access
• Easy to use Same Interface of GUI/WEB/Client
• 2 SATA hard disk up to 8TB
• 1 RJ45 10M/100M network interface
• 8CH POE Ports
• Simultaneous HDMI & VGA up to 4K output
• 2 x 2.0 USB Host
• 8ch Alarm In/1ch Alarm Out
• 1ch Audio I/O

Specifications

System

• Main Processor: Dual-Core Embedded Processor
• Operating System: Embedded LINUX

Video and Audio

• IP Camera Input: 8 Channel
• Audio I/O: 1/1, RCA
• Two-way Talk: Yes

Display

• Interface: 1 HDMI, 1 VGA
• Resolution: HDMI: 3840×2160, 1920×1080, 1440×900, 1280×1024
• Resolution: VGA: 1920×1080, 1280×1024, 1280×720
• Decoding Capacity: 1ch 8MP/4ch 1080p @30fps
• Multi-Screen Display: 1/4/9

Recording

• Compression: H.265+/ H.265/H.264+/H.264
• Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/720p/D1
• Record Rate: 80Mbps
• Bit Rate: 100Kbps ~ 6Mbps Per Channel
• Record Mode: Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in
• Record Interval: Post-record: 30 ~ 60 sec

Video Detection and Alarm

• Trigger Events: Recording, Buzzer, Push Message, Popup Message.
• Video Detection: Motion Detection, Video Loss, Camera Tamper
• Alarm In/Out: 8/1

Playback and Backup

• Sync Playback: 8/4/1
• Search Mode: Time /Date, Alarm, Picture Grid, Event
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
• Backup Mode: USB Device

Network

• Network Function: HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP
• Max. User: Access 9 Users
• Smart Phone: iPhone, iPad, Android
• Interoperability: ONVIF, SDK, CGI

Storage

• Internal HDD: 2 SATA Ports, up to 8TB for each HDD
• eSATA: N/A

Interface

• Interface: 1 RJ-45 Port (10/100Mbps)
• PoE Interface: 8ch 100Mbps, IEEE 802.3af
• PoE Max. Power: 80W
• USB Ports: 2× USB2.0

General

• Power Supply: DC48V/2.5A
• Power Consumption: <5W (without HDD)
• Operating Conditions: -10°C ~ 50°C
• Storage Conditions: Less than 90% RH
• Certifications: CE/FCC
• Dimensions (L × W × H): 372 × 310.5 × 46.5mm
• Net Weight: 2.1kg (No disk)

Shipping Dimensions

• Weight: 2.30 kg
