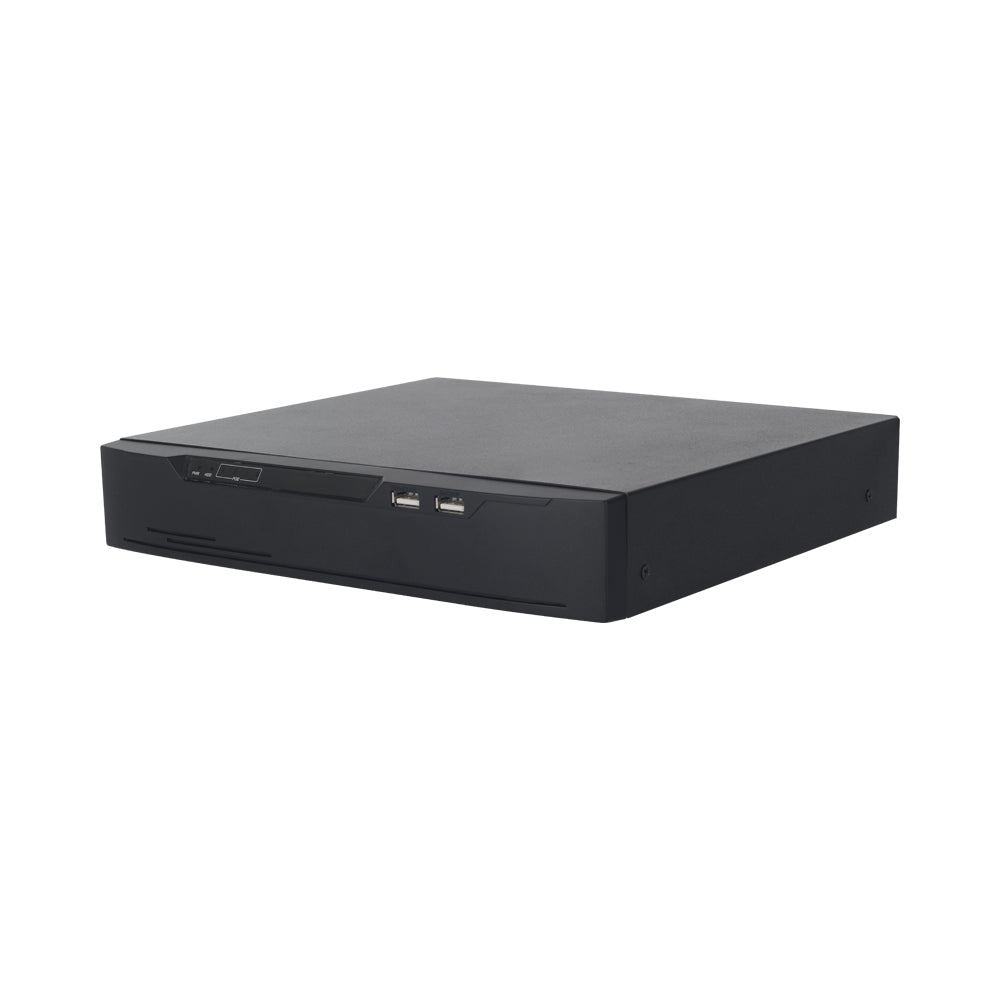

Description
Features
- Up to 4ch IP cameras access
- Easy to use Same Interface of GUI/WEB/Client
- 1 SATA hard disk up to 8TB
- 1 RJ45 10M/100M network interface
- 4CH POE Ports
- Simultaneous HDMI&VGA up to 4K output
- 2 x 2.0 USB Host
- 4ch Alarm In/1ch Alarm Out
- 1ch Audio I/O
Specifications
System
- Main Processor: Dual-core Embedded Processor
- Operating System: Embedded LINUX
Video and Audio
- IP Camera Input: 4 Channel
- Audio: I/O1/1, RCA
- Two-way Talk: Yes
Display
- Interface: 1 HDMI, 1 VGA
- Resolution: HDMI: 3840×2160,1920×1080,1440×900, 1280×1024
- VGA: 1920×1080, 1280×1024, 1280×720
- Decoding Capacity: 1ch 8MP/4ch 1080p@30fps
- Multi-screen Display: 1/4
Recording
- Compression: H.265+/ H.265/H.264+/H.264
- Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/720p/ D1
- Record Rate: 40Mbps
- Bit Rate: 100Kbps ~ 6Mbps Per Channel
- Record Mode: Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in
- Record Interval: Post-record: 30 ~ 60 sec
Video Detection and Alarm
- Trigger Events: Recording, Buzzer, Push message, Pop up message.
- Video Detection: Motion Detection, Video Loss, Camera Tamper
- Alarm In/Out: 4/1
Playback and Backup
- Sync Playback: 4/1
- Search Mode: Time/Date, Alarm, Picture Grid, Event
- Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
- Backup Mode: USB Device
Network
- Network Function: HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP
- Max. User: Access 9 users
- Smart Phone: iPhone, iPad, Android
- Interoperability: ONVIF, SDK, CGI
Storage
- Internal HDD: 1 SATA Ports, up to 8TB for each HDD
- eSATA: N/A
Interface
- Interface: 1 RJ-45 port (10/100Mbps)
- PoE Interface: 4ch 100Mbps, IEEE 802.3af
- PoE Max. Power: 40W
- USB Ports: 2× USB2.0
General
- Power Supply: DC48V/1.25A
- Power Consumption: < 5W (without HDD)
- Operating Conditions: -10 °C ~ 50 °C
- Storage Conditions: Less than 90% RH
- Certifications: CE/FCC
- Dimensions (L × W × H): 255 × 235 × 47.5mm
- Net Weight: 0.9kg (No disk)
Shipping Dimensions
- Weight: 1.10 kg
