Description
Features

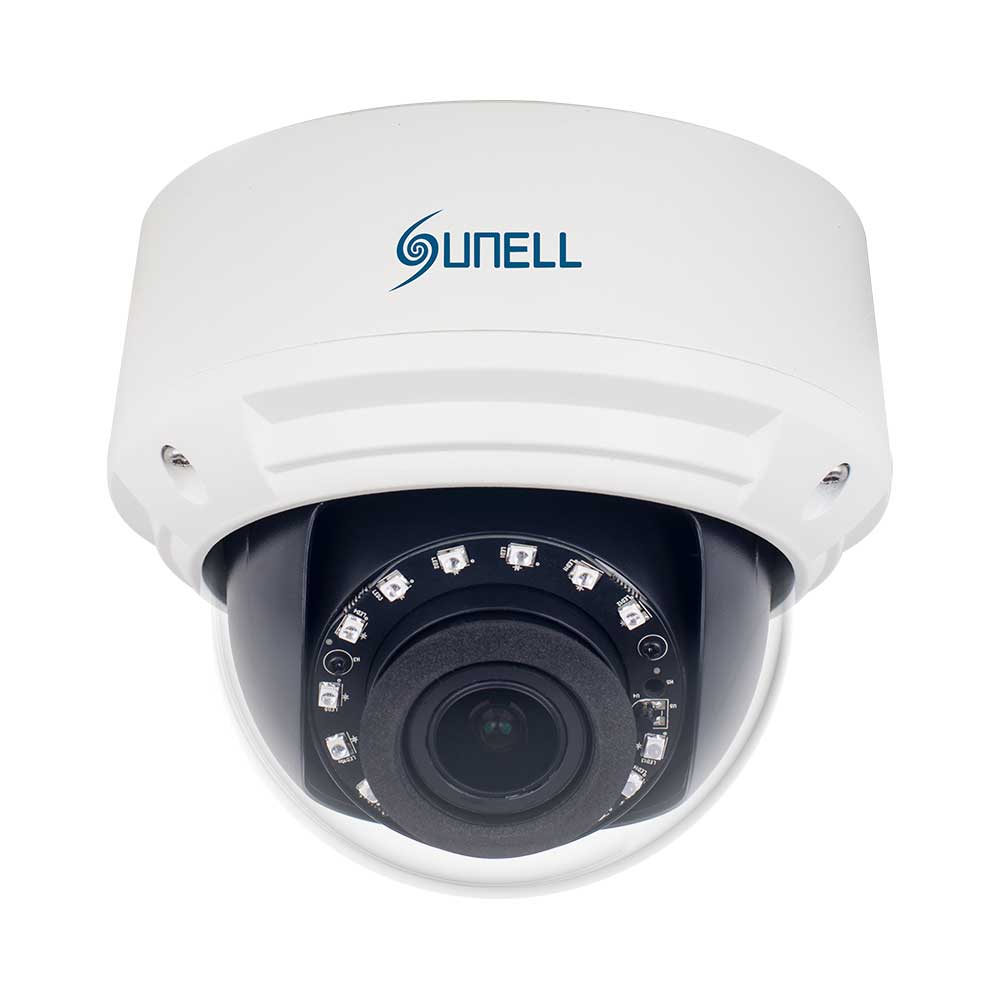

- Sunell 4MP Motorized Vari-Focal IP PoE Mini Dome Camera (IPV57/41UDR/Z)
- 1/3" Progressive Scan CMOS
- Motorized lens 2.7~12mm
- 25fps/30fps@4MP(2592*1520)
- Triple Streams
- Smart IR Up to 30m
- Low bitrate, Excellent low light performance
- WDR, 3D DNR
- ROI, Defog, HLC, Corridor mode, DIS
- IP67, IK10
Specifications
Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Effective Pixels: 2592(H)×1520(V)
- Scanning System: Progressive
- Electronic Shutter: 1/5-1/20000s
- Min. Illumination: Colour: 0.05 Lux @(F1.2,AGC ON), B/W: 0 Lux @(IR LED ON)
- S/N Ratio: 55dB
- IR Range: Up to 30m
- IR On/Off Control: Auto/ Manual
- IR LEDs: 15pcs
- Pan/Tilt/Rotation Range: Pan: 0˚~355˚, Tilt: 0˚~80˚, Rotation: 0˚~355˚
Lens
- Lens Type: Motorised
- Iris: Auto Iris
- Focal Length: 2.7~12mm
- F Number: F1.3
- Angle of View: 100°~ 30°
- Focus Control: Motorised
- Close Focus Distance: 0.2m
Video
- Compression: H.265,H.264,MJPEG
- Max. Resolution: 4MP (2592×1520)
- Streaming Capability: 3 Streams
- Stream1: 2592×1520/2560×1440/2304×1296/ 1920×1080/1280×720 @25/30fps
Frame Rate
- Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps
- Stream 3: VGA/CIF/QVGA @25/30fps
- Bit Rate Control: CBR/VBR
Bit Rate
- Stream1: 500kbps~12000kbps
- Stream 2: 100kbps~6000kbps
- Stream 3: 100kbps~3000kbps
- Day/Night: ICR
- Image Enhancement: HLC / Defog / WDR (120dB)
- White Balance: Support
- Gain Control: Auto/Manual
- Noise Reduction: 2D/3D DNR
- Electronic Image Stabilisation: (EIS): Support
- Smart IR: Support
- Mirror: Support
- Region of Interest: Support
- Motion Detection: Support
- Privacy Masking: Support
Audio
- Compression: G.711 ,RAW_PCM
- Bit Rate: 64kbps (G.711), 128kps (RAW_PCM)
Network
- Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP
- Interoperability: ONVIF
- Streaming Method: Unicast
- Max. User Access: 10 Users
- Web Viewer:
- Management Software: IMS 3.0
- Smart Phone: iOS, Android
Intelligence
- IVS: Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Loiter ,Multi Loiter ,Object Left ,Object Removed, Abnormal Speed ,Converse, Illegal Parking , Signal Bad
Interface
- Ethernet: 1 Ethernet (10/100 Base-T) RJ-45 Connector
- Audio Interface: 1ch Audio In,1ch Audio Out
- Alarm: 1ch Alarm In, 1ch Alarm Out
- RS485: Support
- BNC Output: Support
- Reset Button: Support
- Edge Storage: MicroSD, Max. 128GB
Electrical
- Power Supply: DC12V/PoE/AC24V
- Power Consumption: 3.5W (IR LED OFF), 7W (IR LED ON)
Operating Temperature
- Starting Temperature: -30°C ~ 60°C
- Working Temperature: -40°C ~ 60°C
- Operating Humidity: Less than 90% RH
- Ingress Protection: IP67,IK10
- Certifications: CE / FCC
- Casing: Metal
- Dimensions: φ130 × 112mm
- Net Weight: 900g
Shipping Dimensions
- Weight: 1.10 kg
