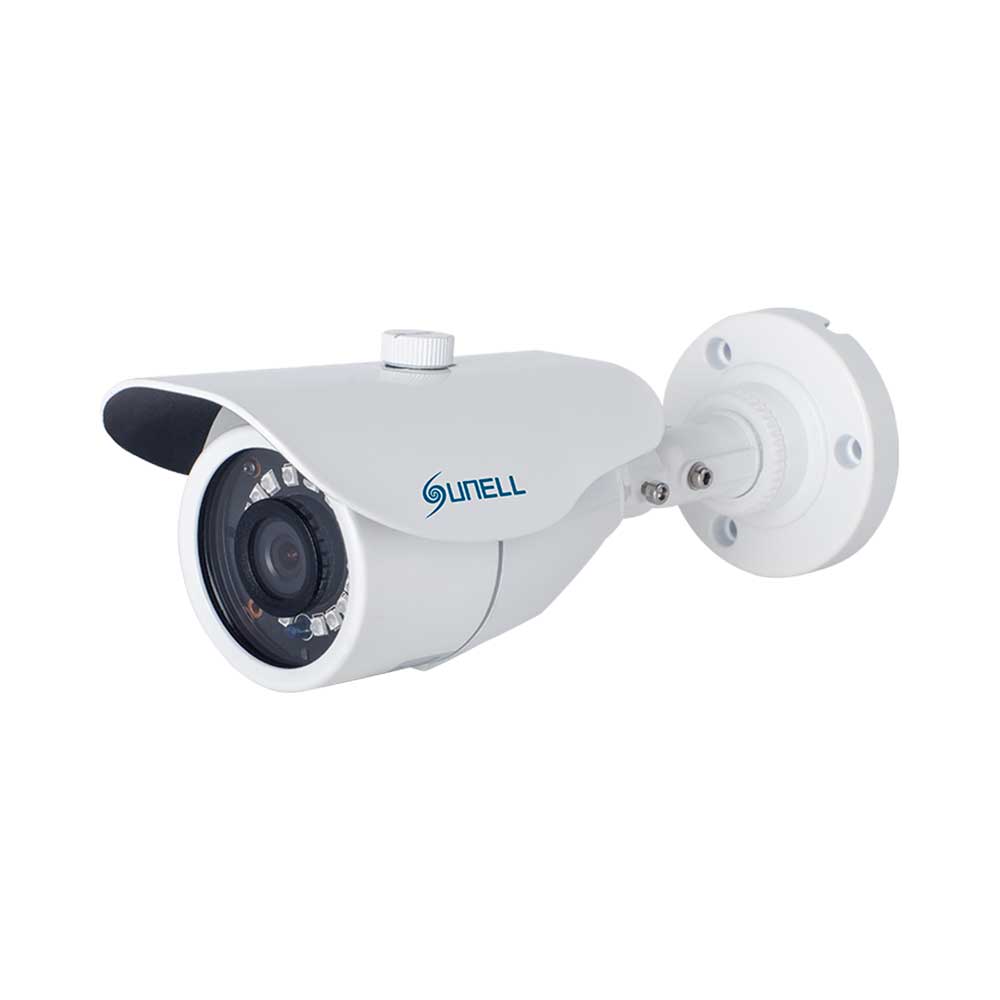

SUNELL AHD/TVI/CVI/CVBS ANALOGUE BULLET 2MP

Features

• 1/2.9" Progressive Scan CMOS
• 3.6mm Lens
• HD 1080P
• Video Transmission 300m
• IR Range up to 20m
• 3D DNR, dWDR, ICR, BLC, GLOBAL, AWB, Privacy Masking, Motion Detection
• Support AHD/TVI/CVI/CVBS Output
• IP66

Specifications

• Camera Image Sensor: 1/2.9" Progressive Scan CMOS
• Effective Pixels: 1920(H) x 1080(V)
• Scanning System: Progressive
• Electronic Shutter: Auto, PAL 1/50-1/50000s, NTSC 1/60-1/60000s
• Min. illumination: ColoUr 0.01Lux @(F1.2,AGC ON), B/W 0Lux @(IR LED ON)
• S/N Ratio: More than 48dB
• IR Range: up to 20m
• IR On/Off Control: Auto/Manual
• IR LEDs: 18pcs
• OSD Joystick: N/A
• Up the Coax: Support
• Pan/Tilt/Rotation Range: Pan 0˚~360˚, Tilt 0˚~90˚, Rotation 0˚~360˚

Lens

• Lens Type: Fixed
• Iris: Fixed Iris
• Focal Length: 3.6mm
• F Number: F2.0
• Angle of View: 85°
• Focus Control: Fixed
• Close Focus Distance: 0.5m

Video

• Resolution: 1080P (1920×1080)
• Frame Rate: PAL 25fps, NTSC 30fps
• OSD Menu: Support
• Wide Dynamic Ranged: WDR, OFF/ON
• Gain Control: Auto/Manual
• Noise Reduction: DNR, AUTO/MANUAL (1-10)
• White Balance: Auto
• BLC: Support
• Mirror: N/A
• Motion Detection: Support
• Privacy Masking: Support

General

• Power Supply: DC12V ±10%
• Power Consumption: Max. 3W (12V DC, IR ON)
• Operating Temperature: -10~55°C
• Operating Humidity: Less than 85% RH
• Ingress Protection: IP66
• Certifications: CE/FCC
• Casing: Metal
• Dimensions: 176 × 69 × 65mm
• Net Weight: 300g

Shipping Dimensions

• Weight: 0.50 kg
