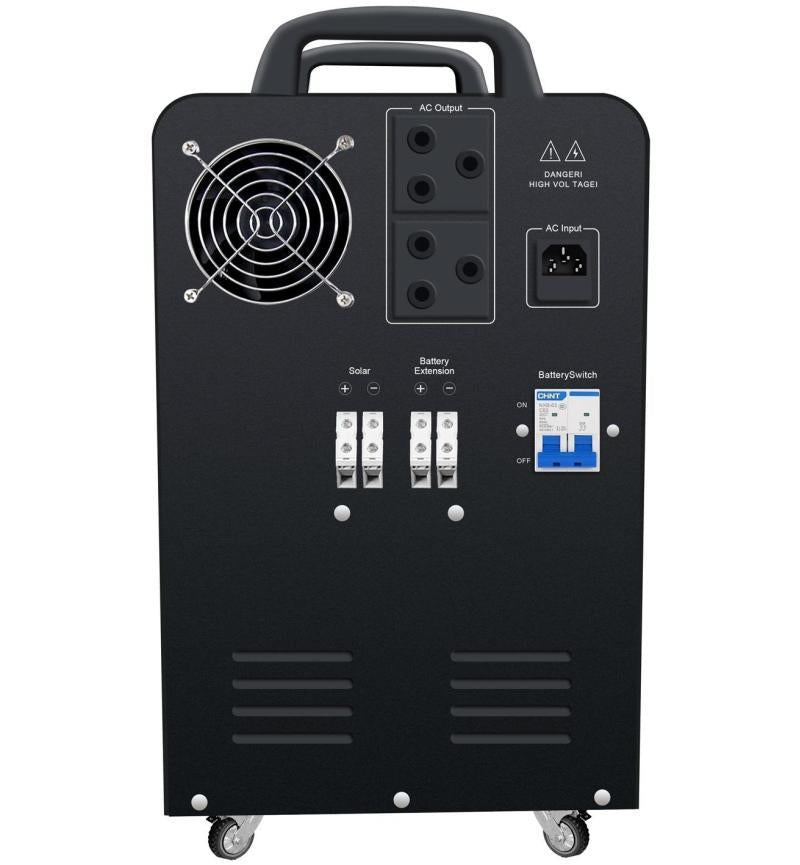

DEMO 1000W INVERTER WITH 12V100AH BAT - SP1000W-R
TBYTE -DEMO
Battery Type: Lead Acid Battery
Integrated Photovoltaic Power Point Energy Storage System
Intelligent Charge and Discharge Management System Function
Effectively Protect the Battery Charge and Discharge
Colorful and Bright Display, Visually Display the Working Status of the Machine
Output Overload, Overvoltage, Over Temperature, Short Circuit
Intelligent Protection
Output Pure Sine Wave, Strong Load Capacity
Built-In Solar Charge Controller, High Charging Efficiency
Adjustable Switching Mode, DC, AC, Solar Priority Mode
Solar Power Inverter Combined PV Controller & Battery
Model: SP0312-55P SP0512-55P SP1012-100P SP1524-100M SP2024-200M
Inverter
Battery Voltage: 12V 24V
In-Built Battery Specification: 55AH 55AH 100AH/12V 100AH/12V*2 200AH/12V*2
Rated Power : 300W 500W 1000W 1500W 2000W
Output Voltage: 110VAC/220VAC
Output Frequency: 50/60Hz
Output Waveform : Pure Sine Wave
Charge By A Means Supply
Rated Voltage: 110VAC/220VAC?x means an optional function
Charge Current: 6A 8A 12A 15A 20A
Solar Input
Maximum Photovoltaic Voltage (VDC): =25V =145V
Charge Voltage (VDC: 13.7V 27.4V
Rated Charge Current(A): (PWM)5-10A (MPPT)30A (MPPT)60A
Maximum Power(Wp): 360Wp 800Wp 1600Wp
Voltage Of Overcharge Voltage (VDC): =25V =145V
Voltage Of Overcharge Recovery (VDC): 14.0V 28.0V
Voltage Of Floating Charge(VDC): 13.7V 27.4V
DC Output
Voltage Of High-Voltage Protection(VDC): 16V 32V
Voltage Of High-Voltage Recovery(VDC): 15.2V 30.4V
Voltage Of Low-Voltage Recovery(VDC): 13V 26V
Voltage Of Low-Voltage Protection(VDC): 11V 22V
5VDC USB Output Port5VDC USB: 2units/MAX 2A
12VDC Output Port12VDC: 2 DC Ports (MAX 2A)
Starting Temperature Of The Exhaust Fan: 45
Ambient Temperature For Operation: 0-4
Ambient Temperature For Storage: -25-55
Operation/Storage Conditions/: 0-90% (no condensation)
External Dimensions: D x W x H(mm) 423 x 260 x 453 x 430x380 x 534 x 555 x 515 x 540
Packing Dimensions: D x W x H(mm) 520 x 370 x 520 x 545 x 480 x 620 x 640 x 600 x 695
1 Month Warranty
