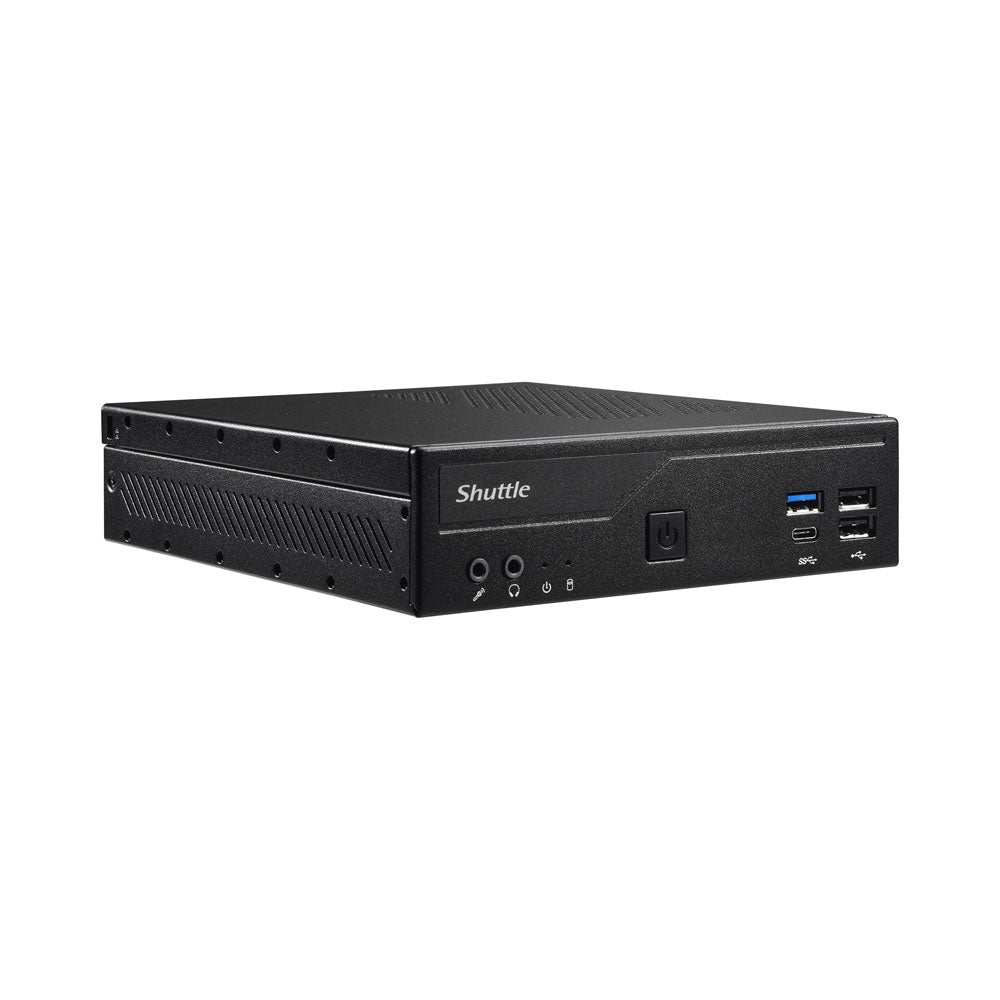

SHUTTLE XPC SLIM DH610 ROBUST 1.3-LITRE BAREBONE PC SUPPORTING INTEL CORE GEN. 12/13 PROCESSORS AND TRIPLE UHD DISPLAYS

Features

• For 12/13th Gen Intel Core CPUs (LGA1700)
• Up to 64GB DDR4 SO-DIMM
• Two RJ45 network ports (1× 2.5 Gbit, 1× 1 Gbit)
• 1× M.2-2280, 1× M.2-2230
• 3× USB3.2 (5 Gbit), 1× USB3.2 Type-C (5 Gbit), 4× USB2.0, 2× RS-232
• 1 HDMI2.0b, 2× DisplayPort 1.4a
• Supports three displays
• 1× NVMe SSD, 1× 2.5" drive
• Remote power-on connector
• Only 19 × 16.5 × 4.3cm LBH
• Heatpipe cooling system with dual fans
• VESA/wall mount included
• 24/7 Permanent Operation

Specifications

• Dimensions: 190 × 165 × 43mm
• Weight: 2.05kg
• CPU: Supports Intel 13th and 12th i9, i7, i5, i3, Pentium and Celeron 65W
• RAM: Up to 2× DDR4. Max. 64GB
• Storage: 1× 2.5" Hard Drive Bay, 1× M.2-2280 M-Key and 1× M.2-2230 E-Key
• GPU: Intel UHD Graphics
• Video Ports: Triple Display via 1× HDMI2.0b and 2× DisplayPort Simultaneously
• LAN/Wireless: Gigabit LAN and 2.5Gbe LAN
• USB Ports: 1× Type-C, 3× USB3.2 and 4× USB2.0
• IO: 1× RS232 Only and 1× RS232 / 422 / 485 DB9 Ports
• Audio: Line-Out & Mic-In, Front & Rear
• Kensington: Yes
• Power: 19V 6.32A, 120W AC Adapter

Shipping Dimensions

• Length: 25.5 cm
• Width: 24 cm
• Height: 13.6 cm
• Weight: 2.65 kg
