Description
Features
AI-Accelerated Performance
Powered by an Intel Core Ultra 5 125H processor with integrated Intel Arc graphics and Intel AI Boost (NPU), delivering up to ~34 TOPS of combined AI performance for advanced AI tasks, edge computing, and multimedia workflows.
Quad 4K Display Support
Drive up to four independent 4K/60 Hz displays via dual HDMI 2.0b and dual USB4 Type-C ports with DisplayPort 1.4 - ideal for multi-monitor setups, digital signage, and productivity stations.
- High-Speed Connectivity: Includes 2× USB4 (40 Gbps), multiple USB3.2 Gen2 ports, SD card reader, and flexible I/O for peripherals and external devices
- Robust Networking: Dual 2.5 GbE LAN ports for fast wired networking, supporting Wake-on-LAN and PXE boot
- Expandable Memory & Storage: Supports up to 96 GB DDR5-5600 SO-DIMM (two slots) and PCIe Gen4 NVMe SSD storage via an M.2-2280 slot; additional M.2-2230 slot for Wi-Fi/Bluetooth expansion
- Comprehensive I/O & Usability: Includes combo audio jack, Kensington lock, and flexible BIOS functions such as power-on scheduling and resume after power failure
- Mounting & Deployment: Comes with VESA mounting support (75×75 and 100×100 mm) for behind-monitor or space-saving installations
Specifications

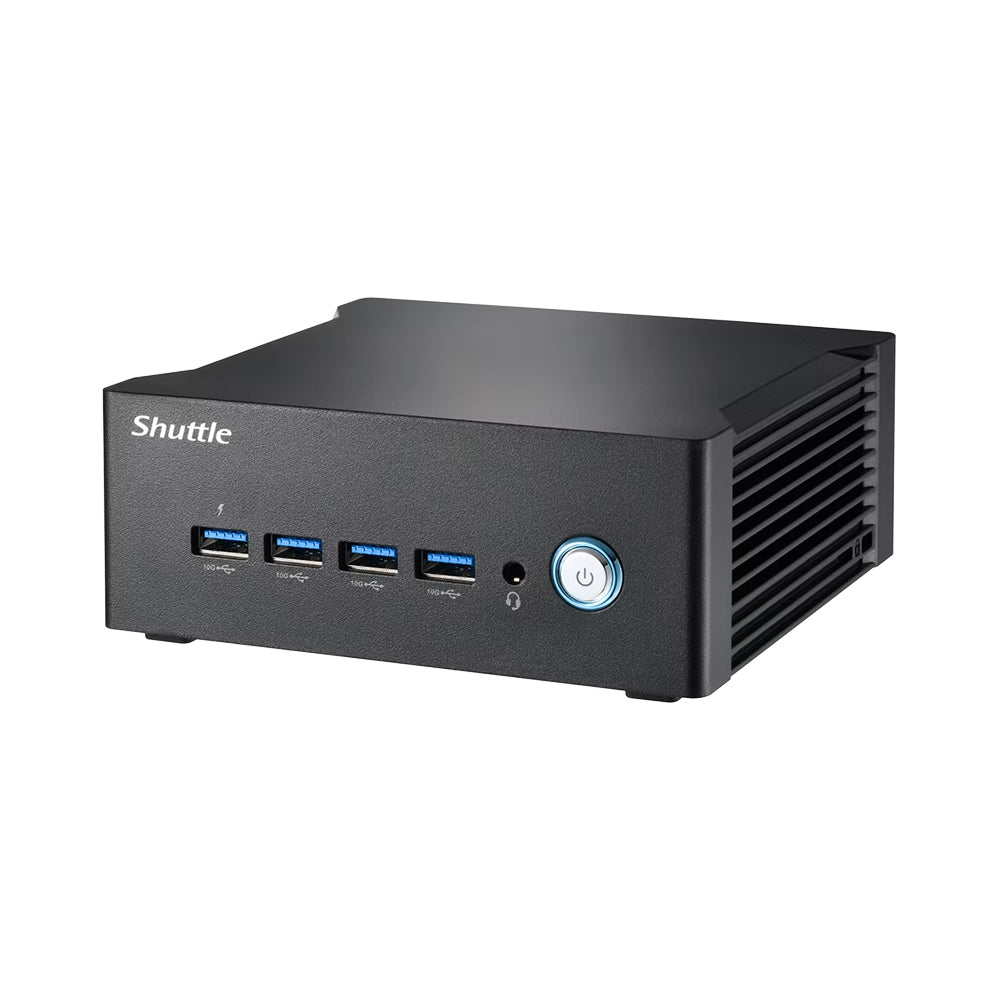

- Chassis: Barebone mini PC with black plastic housing; VESA mount included
- Dimensions: 132 × 143 × 55 mm (~1.04 L)
- Weight: ~0.8 kg (net), ~1.7 kg (gross)
- CPU: Intel Core Ultra 5 125H SoC (Meteor Lake-H)
- 4 Performance cores + 8 Efficiency cores + 2 low power Efficiency cores
- Up to 18 threads, 1.2–4.5 GHz, 28 W TDP (configurable)
- Graphics: Intel Arc integrated graphics (7 Xe-cores, up to ~2.2 GHz)
- AI NPU: Intel AI Boost with ~11.5 TOPS (up to ~34 TOPS combined)
- Memory: 2× DDR5-5600 SO-DIMM, up to 96 GB
- Storage: 1× M.2-2280 PCIe Gen4 x4 (NVMe)
- Expansion: 1× M.2-2230 E key for WLAN/BT modules
- Display Outputs:
- 2× HDMI 2.0b
- 2× USB4 Type-C with DisplayPort 1.4
- USB Ports:
- 2× USB4 Type-C (40 Gbps)
- 5× USB3.2 Gen2 (10 Gbps)
- 1× USB2.0
- Networking: Dual 2.5 GbE LAN (Intel i226V)
- Audio: Realtek ALC269-VC3 combo (Line-out / Mic-in); digital audio via HDMI/DP
- Firmware & Features: AMI UEFI BIOS; Wake-on-LAN, RTC power-on, resume after power failure
- Security: TPM 2.0 supported (Infineon SLB9670VQ2.0)
- Operating System Support: Windows 11 64-bit, Linux 64-bit (OS not included)
- Cooling: Heat-pipe system with dual fans for sustained performance
- Power: External 120 W adapter
Shipping Dimensions
- Length: 19.3 cm
- Width: 18.2 cm
- Height: 10.8 cm
- Weight: 1.10 kg
