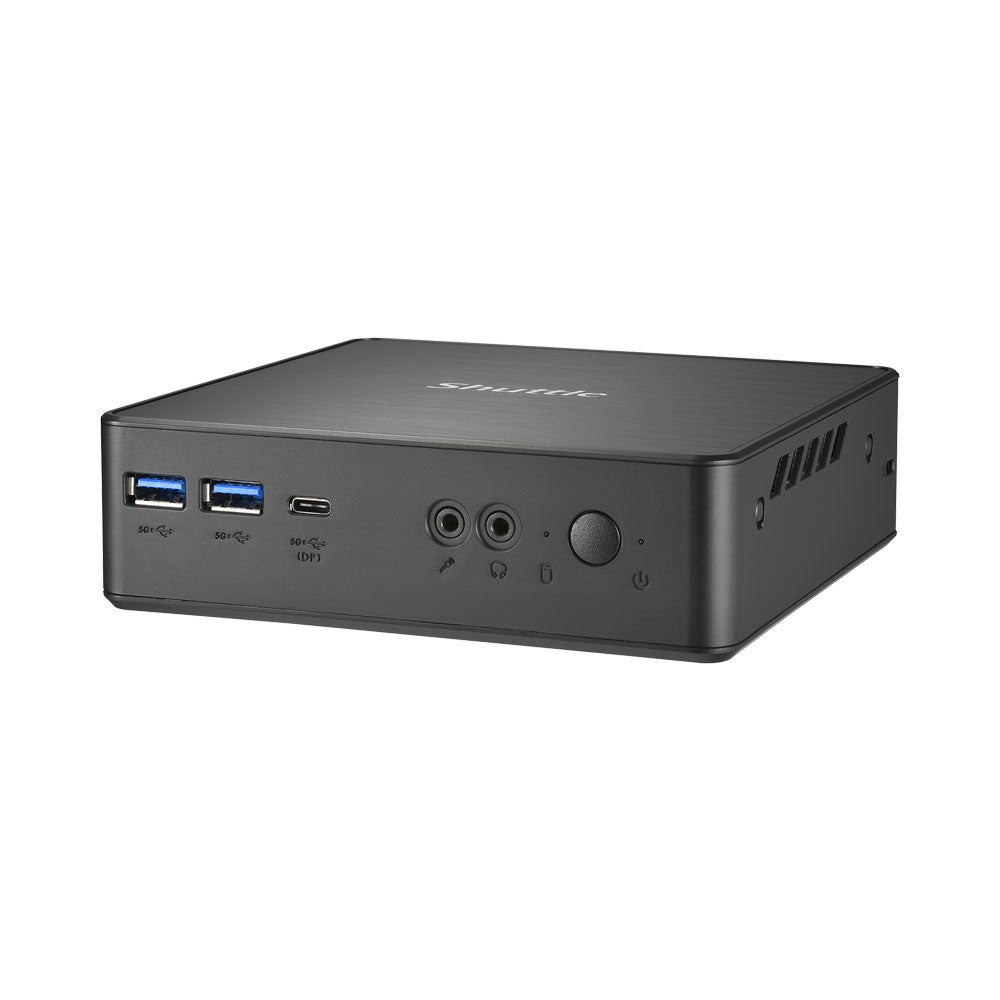

SHUTTLE XPC NANO NC40U PALM-SIZED BAREBONE NUC PC - INTEL I5

Features

• Intel UHD Graphics for 12th Gen Intel Processors
• Up to 64GB of DDR4 SO-DIMM memory
• 2× NVMe (RAID support), 1× SATA 2.5"
• 1× HDMI 2.0b, 1× DisplayPort 1.4a
• 2× M.2-2280, 1× M.2-2230
• Gigabit Ethernet
• 2× USB3.2 Gen2 (10Gbps), 4× USB3.2 Gen1 (5Gbps), 1× USB3.2 Gen1 (5Gbps) Type-C
• Always-On Jumper
• Wall/VESA Mount Included

Specifications

• Cooling System: Smart Fan
• Processor: Intel Celeron 7305 or Intel i3-1215U / i5-1235U / i7-1255U
• Graphics: Intel Iris Xe Graphics
• Display Resolution Max.:
• HDMI: 4096 × 2160 @60Hz
• DisplayPort: 4096 × 2160 @60Hz
• Display Output: 3× Independent Displays
• Video Decoder: WMV9, AVC / H.264, JPEG / MPEG, HEVC / H.265, VP9, AV1
• Memory: 2× DDR4 3200/2933/2666 MHz, Max. 64GB
• Storage: 1× 2.5" HDD/SSD (max. 15 mm)
• Expansion Slot:
• 2× M.2 2280, M Key
• 1× M.2 2230, E Key
• Video Output:
• HDMI Port: 1×
• DisplayPort: 1×
• Type-C: 1×
• I/O Port:
• USB3.2 Gen1/Gen2 (Front): 3× (Includes Type-C)
• USB2.0 (Front): No
• USB3.2 Gen1/Gen2 (Rear): Yes
• USB2.0 (Rear): No
• COM Port: No
• Line out / Mic in: Yes
• Operating System: Windows 10 / 11 64bit, Linux

Network

• LAN: Intel Gigabit LAN
• WLAN: Optional
• VESA Mount: Bracket included
• Stand: Bracket included
• Dimension (L × W × H): 142 × 142 × 42mm
• Certification: CB, CE, BSMI, cTUVus, FCC, RCM, RoHS, VCCI
• Operating Temperature: 0~50°C
• Chassis: Plastic

Power Supply

• Power Input: 19V DC
• Bundled Adapter: 19V / 3.42A 65W External Adapter

Shipping Dimensions

• Length: 25.5 cm
• Width: 24 cm
• Height: 13.6 cm
• Weight: 1.53 kg
