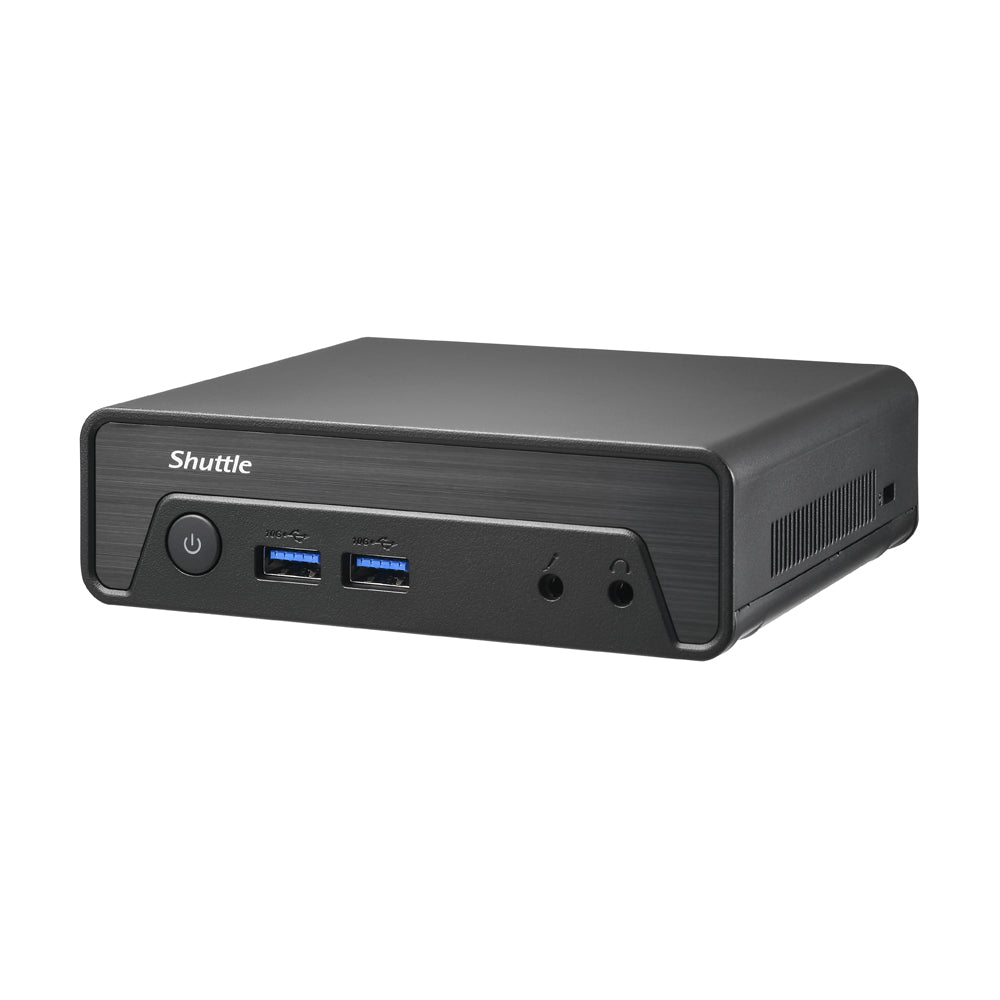

SHUTTLE XPC NANO BAREBONE NE10N

Features

• Compact Design - Ultra-compact XPC nano form factor designed for space-constrained environments. Ideal for offices, kiosks, POS systems, and digital signage
• Efficient Performance - Powered by Intel processors with integrated Intel graphics, delivering reliable performance for everyday business and multimedia workloads
• Multi-Display Support - Supports up to three independent displays with HDMI, DisplayPort, and USB-C video output, including 4K resolution at 60Hz
• Flexible Expandability - Supports DDR4 memory, 2.5" storage, and multiple M.2 slots for SSDs and optional wireless connectivity
• Business-Ready Connectivity - Equipped with multiple USB ports, Gigabit LAN, audio ports, and optional WLAN for seamless integration into professional environments
• Reliable Cooling - Smart Fan cooling system ensures stable and quiet operation for continuous use
• Easy Installation - Includes VESA mount and stand brackets for flexible mounting behind monitors or on walls

Specifications

• Cooling System: Smart Fan
• Processor: Intel Celeron 7305 or Intel Core i3-1215U / i5-1235U / i7-1255U
• Graphics: Intel Iris Xe Graphics
• Maximum Display Resolution:
• HDMI: 4096 × 2160 @ 60Hz
• DisplayPort: 4096 × 2160 @ 60Hz
• Display Output: Supports up to 3 independent displays
• Video Decoder: WMV9, AVC / H.264, JPEG / MPEG, HEVC / H.265, VP9, AV1
• Memory: 2× DDR4 3200 / 2933 / 2666 MHz, up to 64GB
• Storage: 1× 2.5" HDD / SSD (maximum height 15mm)
• Expansion Slots:
• 2× M.2 2280 (M Key)
• 1× M.2 2230 (E Key)
• Video Outputs:
• HDMI: 1×
• DisplayPort: 1×
• USB Type-C: 1×
• I/O Ports:
• USB3.2 Gen1 / Gen2 (Front): 3× (including Type-C)
• USB3.2 Gen1 / Gen2 (Rear): Yes
• USB2.0 (Front / Rear): No
• COM Port: No
• Audio (Line-out / Mic-in): Yes
• Network:
• LAN: Intel Gigabit LAN
• WLAN: Optional
• Mounting: VESA mount bracket included
• Stand: Bracket included
• Dimensions (L × W × H): 142 × 142 × 42 mm
• Certification: CB, CE, BSMI, cTUVus, FCC, RCM, RoHS, VCCI
• Operating Temperature: 0 to 50°C
• Chassis: Plastic
• Power Supply:
• Power Input: 19V DC
• Bundled Adapter: 19V / 3.42A, 65W external adapter
• Operating System Support: Windows 10 / 11 64-bit, Linux
