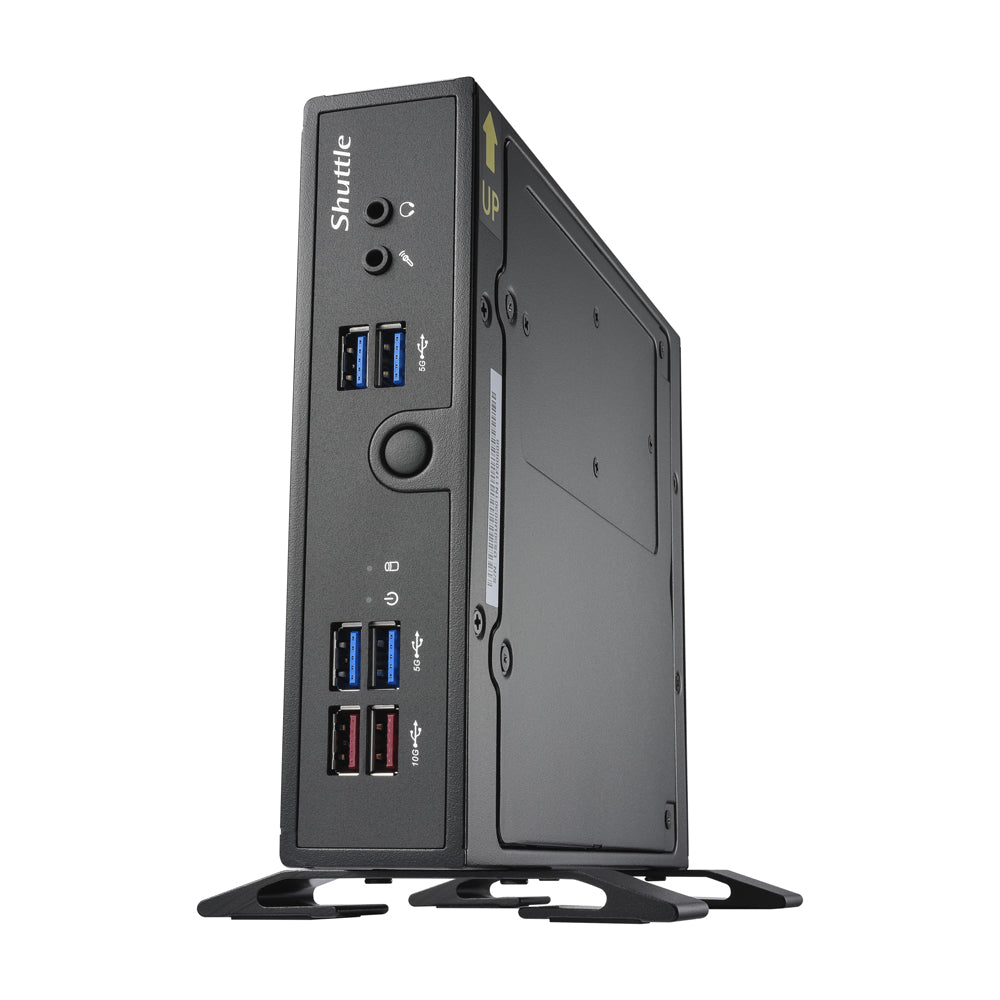

SHUTTLE DS50U3 XPC SLIM FANLESS BAREBONE PC WITH INTEL I3 1315U CPU

Features

• Fanless Design - Silent, maintenance-free operation for 24/7 reliability
• Triple Display Output - HDMI, DisplayPort and VGA with independent output
• Intel Processor Platform - Efficient performance for industrial applications
• Slim Industrial Chassis - Compact design ideal for space-constrained deployments
• Dual LAN Ports - Reliable network redundancy and flexible connectivity
• 4× USB3.2 Ports - High-speed peripheral connectivity
• Wide Voltage Input - Supports 12~19V DC for industrial environments
• Dual Storage Support - 2.5" SATA plus M.2 SSD for flexible storage expansion
• VESA Mount Compatible - Easy installation behind displays or in enclosures

Specifications

• Processor: Intel Core i3-1315U (13th Gen, 6 Cores)
• Graphics: Intel UHD Graphics (Triple Display Support)
• Display Outputs: 1× HDMI, 1× DisplayPort, 1× VGA (Independent)
• Memory: 2× DDR5 SO-DIMM (up to 64GB)
• Storage:

- 1× 2.5" Sata

• 2× M.2 SSD (NVMe / SATA)
• Networking: Dual LAN (2.5GbE + 1GbE)
• Wireless Expansion: M.2 slot for Wi-Fi / Bluetooth Module
• USB Ports: 4× USB3.2 + 4× USB2.0
• Serial Ports: 2× COM (RS232/422/485)
• Audio: Line-in / Line-out (3.5mm)
• Video Resolution: up to 4K @60Hz (HDMI / DisplayPort)
• Power Input: 12~19V DC
• Power Consumption: up to 90W (Adapter)
• Cooling: Fanless Passive Cooling
• Mounting: VESA Mount Compatible
• Operating System: Windows 10 / 11, Linux
• Operating Temperature: 0~40°C
• Chassis: Metal Industrial Design
• Dimensions: 200 × 165 × 39.5mm
• Weight: 1.6kg
