SHUTTLE DH470 TRIPLE DISPLAY PC 2X LAN NO CPU

Features

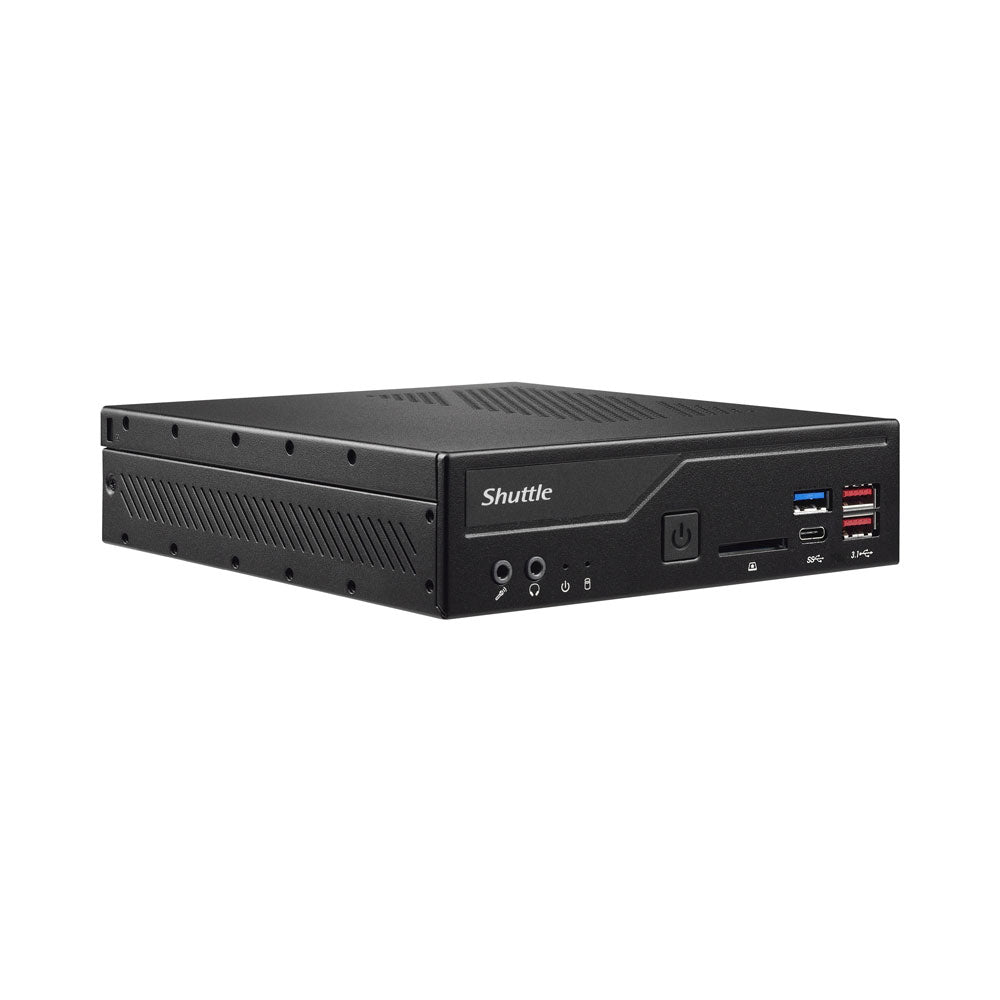

• The Shuttle XPC slim Barebone DH470 with H470 chipset houses the performance of Intel's 10th generation Core desktop processors (codenamed Comet Lake-S) for socket LGA1200 in a compact 1.3-litre format
• The DH470 allows for three Ultra HD displays to be operated at the same time via HDMI2.0a and 2x DisplayPort
• It also offers Dual Intel LAN, four USB3.2 Gen 2 and COM ports
• The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C
• This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry

Specifications

• Dimensions: 190 x 165 x 43mm
• Weight: 2.1kg
• CPU: Supports 10th Generation Intel i9, i7, i5, i3, Pentium and Celeron
• RAM: Up to 2x DDR4. Max. 64GB
• Storage: 1x 2.5" Hard Drive Bay, 1x M.2-2280 M-Key
• GPU: Intel UHD Graphics
• Video Ports: Dual Display via 1x HDMI2.0 and 2x DisplayPort 1.2 Simultaneously
• LAN/Wireless: Dual Gigabit LAN
• USB Ports: 4x USB3.2 Gen 1 and 4x USB3.2 Gen 2
• IO: 1x RS232 DB9 Port & 1x RS232 / 422 / 485 DB9 Port
• Audio: Line-Out and Mic-In
• Kensington: Yes
• Power: 19V 90W AC Adapter, Extended Power Connector

Shipping Dimensions

• Length: 25.5 cm
• Width: 24 cm
• Height: 13.6 cm
• Weight: 2.45 kg
