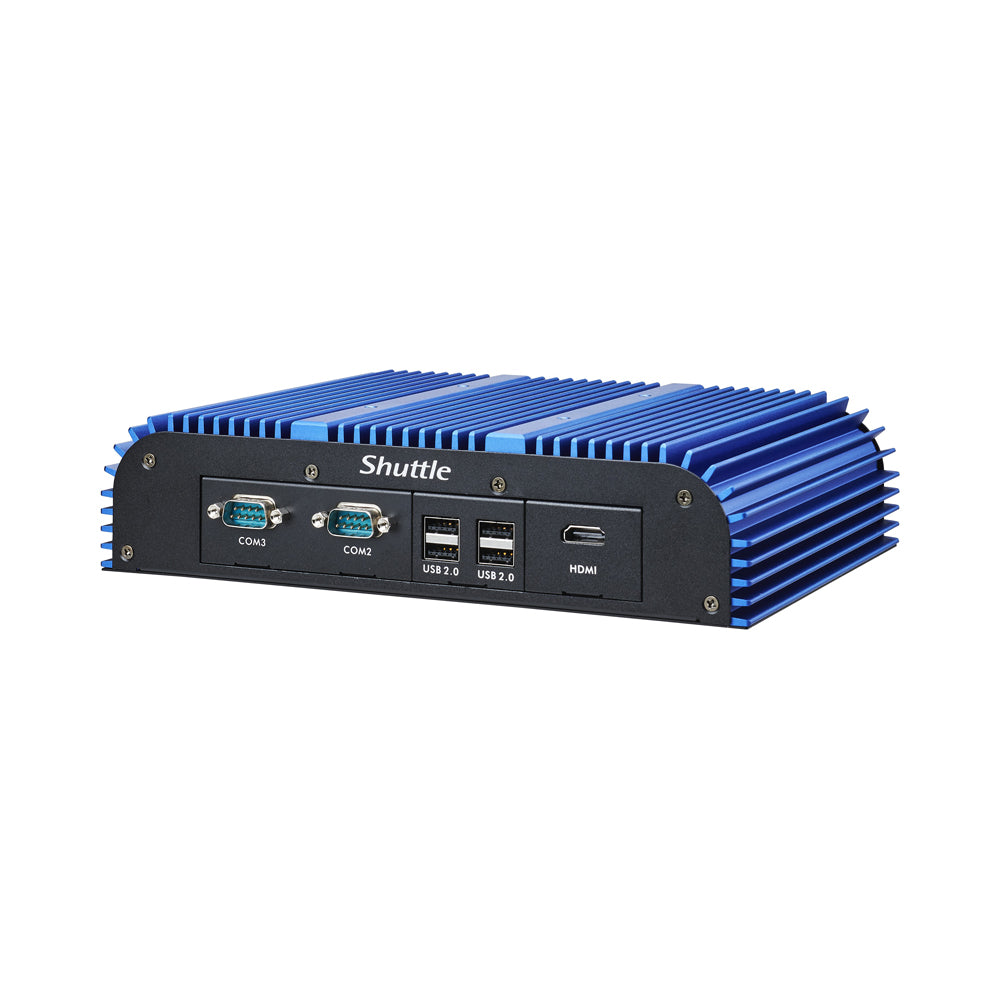

SHUTTLE BPCAL02 I5 CPU, 2.5G LAN, DDR5 - BAREBONE

Features

• Dual 2.5 Gigabit Ethernet
• Mounting Options: VESA, Ear mount and DIN rail
• Fanless cooling system
• 24/7 Operation
• Robust aluminium/steel chassis
• Up to 64GB RAM

Specifications

System

• Processor: 12th Gen. Intel Alder Lake Core
• Optional: i5-1235U, i5-1245UE, i7-1255U, i7-1265UE, Celeron 7305E
• Memory: 2x 262-Pin SODIMM, up to 64GB
• Dual Channel DDR5: 4800MHz
• BIOS: AMI UEFI 64Mbit

Graphics

• Display Interface: 2x HDMI 2.0b: 4096 x 2160 @60Hz
• Display Output Max: 4x Independent or Clone - Configuration Dependent

Audio

• Audio Codec: Realtek ALC888s-VD 2-Channel

Network

• Ethernet: 2x Intel 2.5GB LAN
• WLAN: Intel Wi-Fi Module (802.11 a/b/g/n/ac) and BT 5.0 (Optional)
• Realtek RTL8821CE: 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN Card M.2 2230 E-Key (Optional)
• External Antenna: 2x Dipole (Optional)

I/O Interface

• LAN: 2x RJ45 (10/100/1000Mbps / 2.5GB)
• Supports: Wake-on-LAN
• Serial Ports: 1x RS232 (DB9)
• 2x RS232 / 422 / 485: (DB9) (RS232 with Power Supply: Ring in / 5V (Standard) and 12V (with Specific Optional Board))
• USB: 4x USB3.2 Gen 2 (Type-A)
• USB: 4x USB2.0 (Type-A)
• Audio: 1x Line-Out
• Audio: 1x Mic-In

Power

• Type: 19V (without Wide Range Board)
• Wide Range Board: Motherboard Support 9~36V DC-in
• Adapter: BPCAL02: 19V/4.74A 90W external adapter

Operating System

• OS Support: Windows 10 / 11 IoT 64bit
• Linux: 64bit

Mechanism

• Mounting: VESA Mount 75 x 75
• Ear Mount: 256 x 100mm
• Din Rail Mount: 35mm
• Dimensions (W x H x D): 245 x 57 x 169mm
• Weight: 2.85kg
• Operating Temperature: 0~40°C
• Storage Temperature: -20~80°C
• Relative Humidity: 10~90% RH (Non-Condensing)
• EMC: CE, FCC, VCCI, BSMI
• Safety: cTUVus, CB, CEC, BSMI

Shipping Dimensions

• Length: 29.5 cm
• Width: 21.9 cm
• Height: 10.7 cm
• Weight: 3.15 kg
