- Sound volume level: Adjustable, 85 - 113 dB at a distance of 1 m
- Power supply: 4 × CR123A, 3 V
- External supply: 12 VDC, 1.5 A
- Battery life: up to 5 years
- Up to 1500m in an open space (in a perfect environment)
- Protection class: IP54
- Dimensions: 200 × 200 × 51 mm
Manufacturer overview

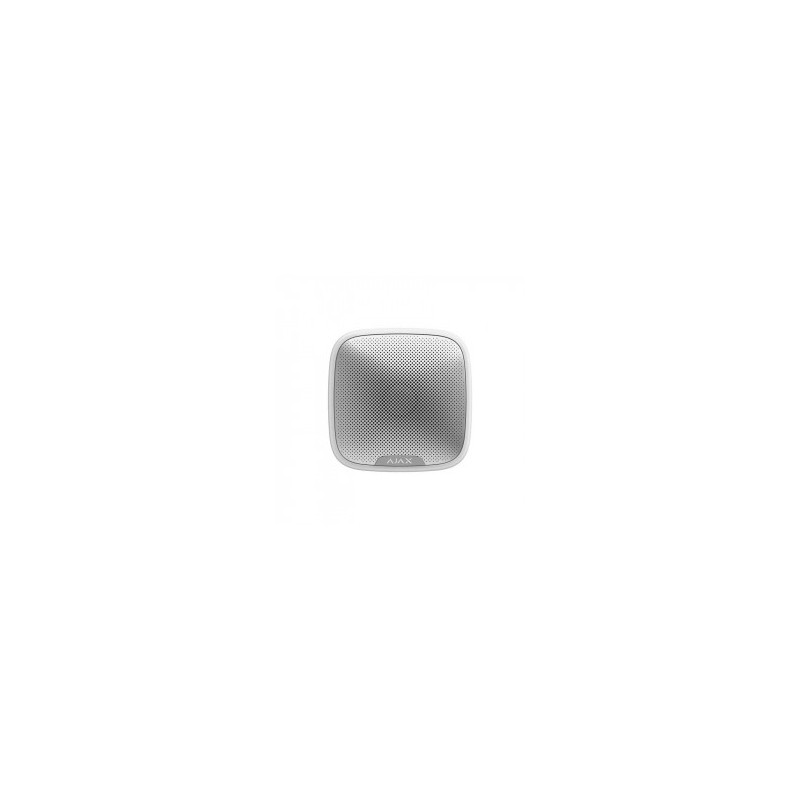

Wireless siren for outdoor and indoor use
Smart alerts. Superb performance. StreetSiren Jeweller combines powerful sound, LED indication, and smart features to make security events impossible to miss. It signals alarms, displays system status, notifies of delays when arming or disarming, and provides after-alarm indication for patrols. The Chime feature adds convenience by alerting users to doors being opened 1 . The device offers wireless communication, robust hardware and software protection against sabotage, and remote control via Ajax apps.
Alarm and event alerts for any facility type. The siren effectively deters intruders and can provide visual and sound alerts for any alarms in the system, including those triggered by fire, water leaks, and more. Installers can choose a specific device or group to trigger the sound and LED indication. Additionally, they can adjust the alarm volume and duration 2 as needed.
One device. Five missions. The siren effectively deters intruders and can provide visual and sound alerts for any alarms in the system, including those triggered by fire, water leaks, and more. Installers can choose a specific device or group to trigger the sound and LED indication. Additionally, they can adjust the alarm volume and duration 2 as needed.
Alerts for any incident. The siren effectively deters intruders and can provide visual and sound alerts for any alarms in the system, including those triggered by fire, water leaks, and more. Installers can choose a specific device or group to trigger the sound and LED indication. Additionally, they can adjust the alarm volume and duration 2 as needed.
Delay indication. StreetSiren Jeweller can be set to indicate entry or exit delays. When this feature is enabled, the LED frame and sound notify users of delays, helping to minimize false alarms caused by human error or forgetfulness.
Security mode display. The LED frame on the siren can signal that the system is armed or reflect changes in security modes. Alternatively, the LED indication may remain constantly on to prevent anyone from tracking the facility’s security status.
Specifications
| Frequency bands |
866.0–866.5 MHz |
| Maximum effective radiated power (ERP) |
up to 20 mW |
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 4,500 ft |
| Alarm type |
acoustic and LED |
| Type of warning device |
type X |
| Alarm volume |
from 85 to 113 dB at a distance of 3.3 ft |
| Alarm duration |
from 3 s to 3 min |
| Siren sound frequency |
1.60−4.5 kHz |
| Acoustic output type |
tone |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s |
| Battery |
4 × CR123A |
| Calculated battery life |
up to 5 years |
| Siren’s operating voltage range |
3.65−6.2 V⎓ |
| Siren’s nominal operating voltage |
6 V⎓ |
| Quiescent siren’s current consumption at nominal voltage |
71 µA |
| Peak siren’s current consumption at nominal voltage |
1 A |
| Average siren’s current consumption at nominal voltage |
0.3 A |
| Full battery capacity |
6,400 mAh |
| Low battery voltage |
4.25 V⎓ |
| Low battery recovery voltage |
5.05 V⎓ |
| End-of-life battery voltage |
3.65 V⎓ |
| End-of-life battery capacity |
460 mAh |
| Manufacturer |
Huiderui or Panasonic |
